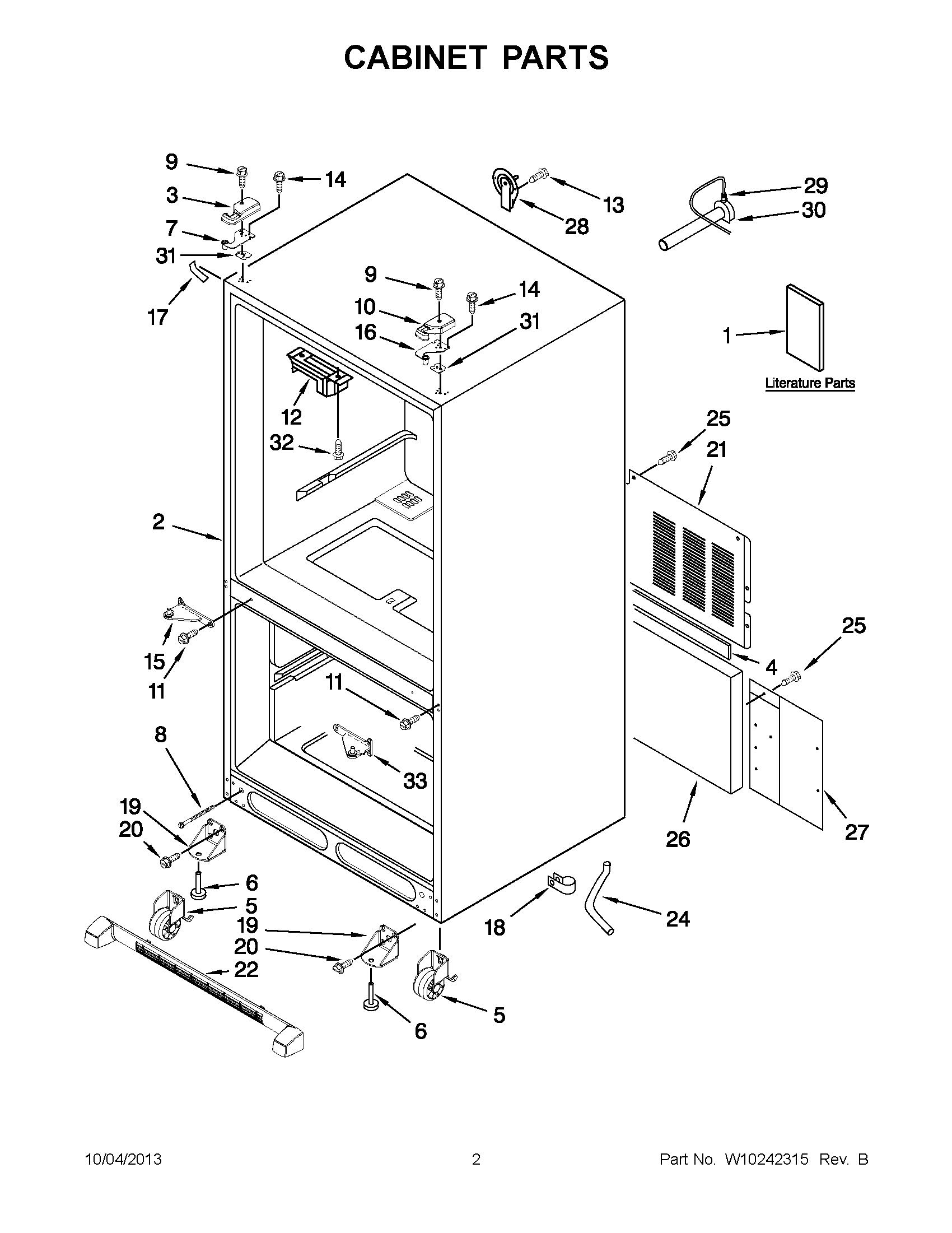

AFD2535FES12 02 – CABINET PARTS

Products

Position	Product
1	MAY W10123476
1	MAY 12827952
1	MAY W10137539
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12684201B
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	Hinge, Top Left
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	MAY 12684202B
11	MAY 67005822
12	WP67003405 Whirlpool Pivot Block
13	MAY 67006433
14	WP489349 Whirlpool Refrigerator Screw
15	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
16	Hinge, Top
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	MAY 67006101
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 12479803
28	COVER, WATER LINE
29	Clip
30	MAY W10137519
31	MAY 12579702
32	WP7101P126-60 Whirlpool Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
