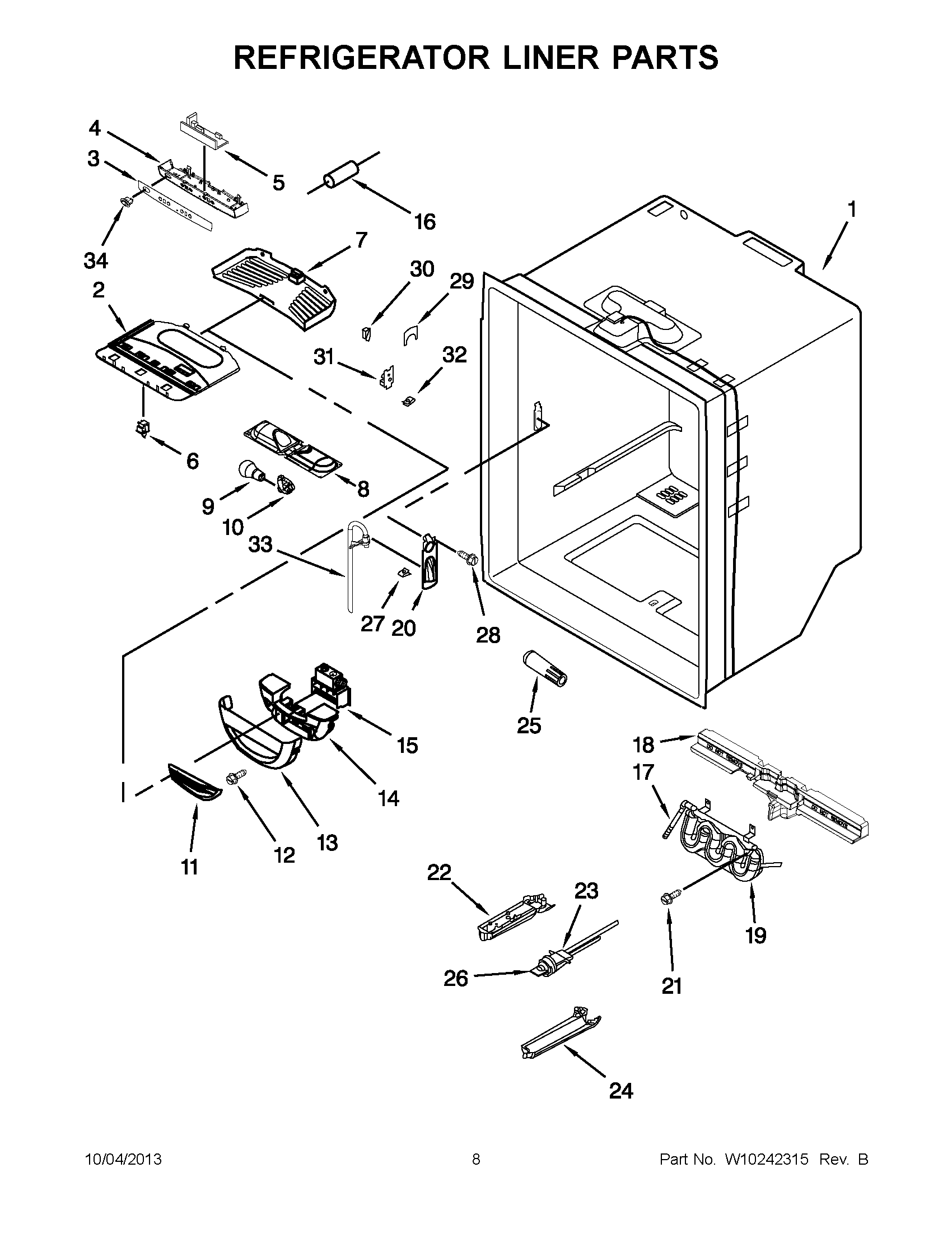

AFD2535FES12 05 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWP12868601 Whirlpool Refrigerator Wire Harness
NILINER (NOT A SERVICEABLE PART)
2MAY 67004078
3MAY 67004695
4MODULE, REF CONTROL
5Board, Control
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15Control, Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17WP2300868 Whirlpool Refrigerator Fitting
18MAY W10117358
19MAY W10153959
20MAY W10158503
21MAY 67006400
22PLATE-FIL
23WP67006524 Whirlpool Refrigerator Housing
24WP12568001 Whirlpool Filter Cover
25MAY 67006467
26MAY 12664501
27Clip, Facade (2)
28Screw (2)
29W11519867 Whirlpool Refrigerator Cover
30WP12575501 Whirlpool Refrigerator Micro Switch
3112707303SP Whirlpool Refrigerator Plate
3267002816 Whirlpool Refrigerator Waterline Clip
33MAY 67003728
34W11478401 Whirlpool Refrigerator Housing
