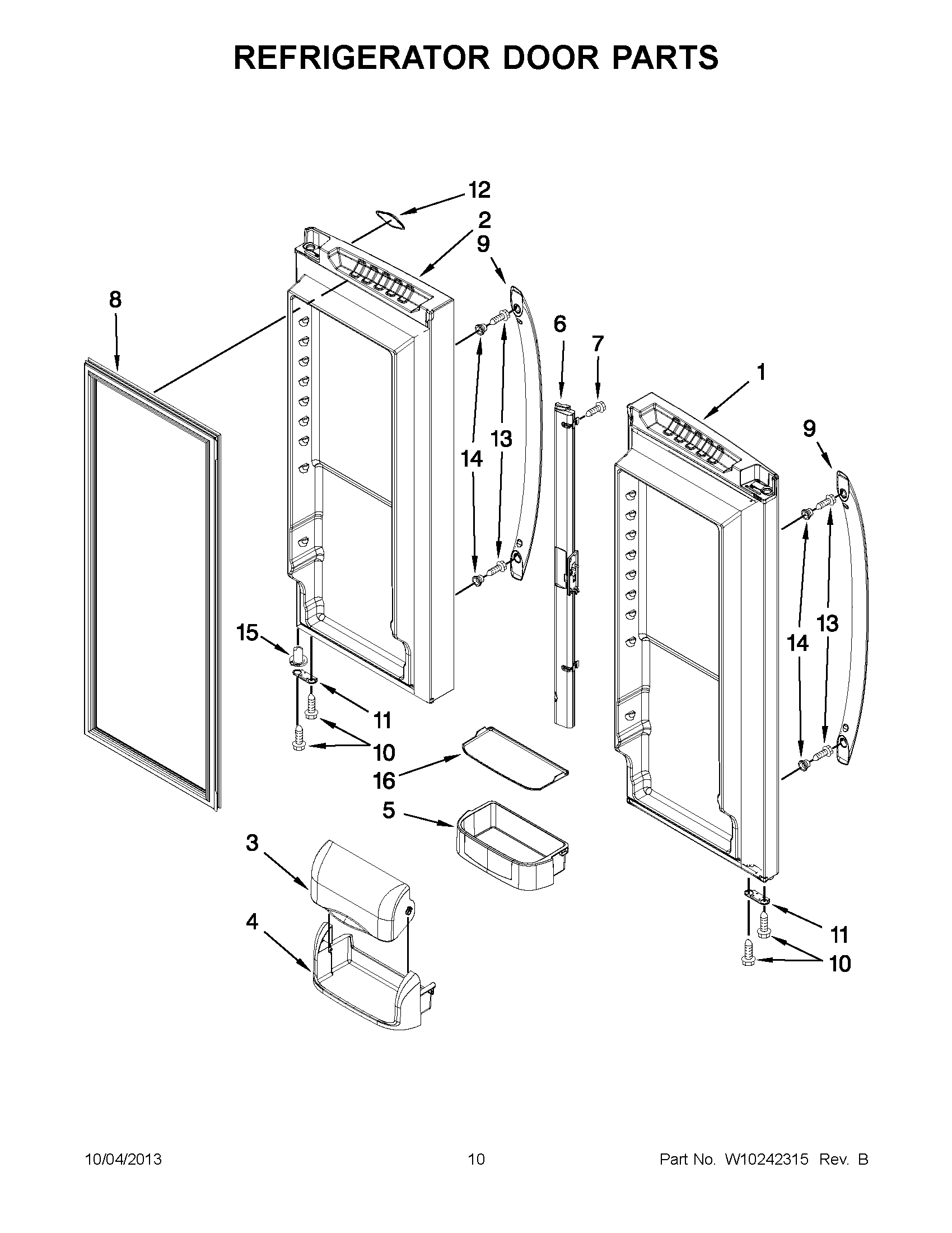

AFD2535FES12 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13107780S
2DOOR, (RIGHT STAINLESS)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5MAY 12699207
5WPW10371193 Whirlpool Refrigerator Door Bin
6WP12722803B Whirlpool Door Guide
7MAY 67006786
8MAY 12723206B
9Handle (Stainless Steel)
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12Y12528501 Whirlpool Refrigerator Nameplate
13WP3387230 Whirlpool Screw
14WP67006113 Whirlpool Stud Bolt
15WP67003639 Whirlpool Refrigerator Closer
16GRIPPER, BUCKET
16GRIPPER, BKT FRENCH DOOR GAL
