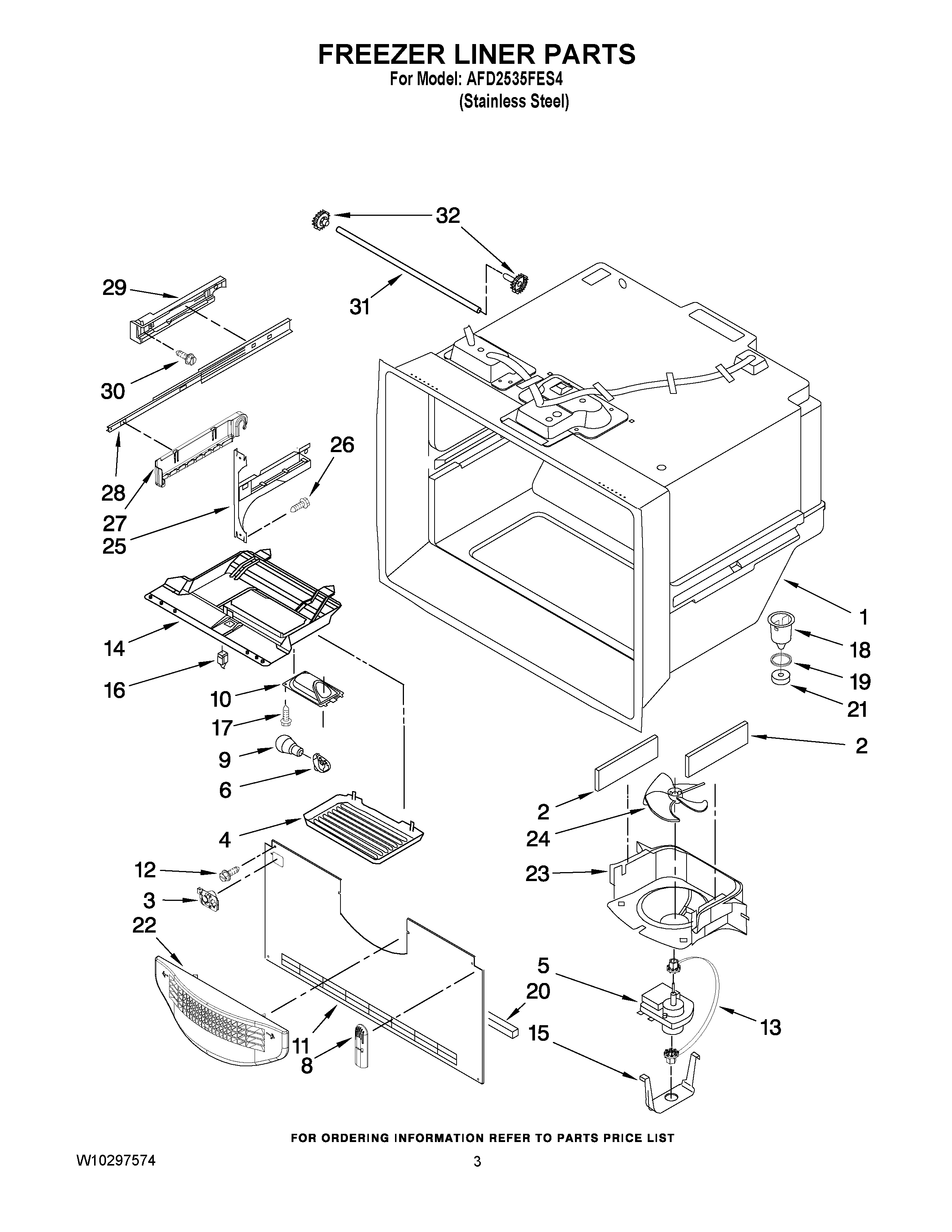

AFD2535FES4 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 13014801
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	MAY 12804901
5	MAY W10128551
6	Socket, Light
8	MAY 12815301
9	Bulb, Light (2)
10	MAY 12806601V
11	MAY 12226112
12	SCREW (10)
13	MAY W10121318
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12991603V
18	MAY D7753903
19	MAY M0500703
20	GASKET, BOTTOM
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27	CRADLE-BASKET (LEFT HAND)
27	CRADLE-BASKET (RIGHT HAND)
28	MAY W10120018
29	ADAPTER, SIDE (LEFT)
29	ADAPTER, SIDE (RIGHT)
30	Screw (6)
31	SHAFT
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
