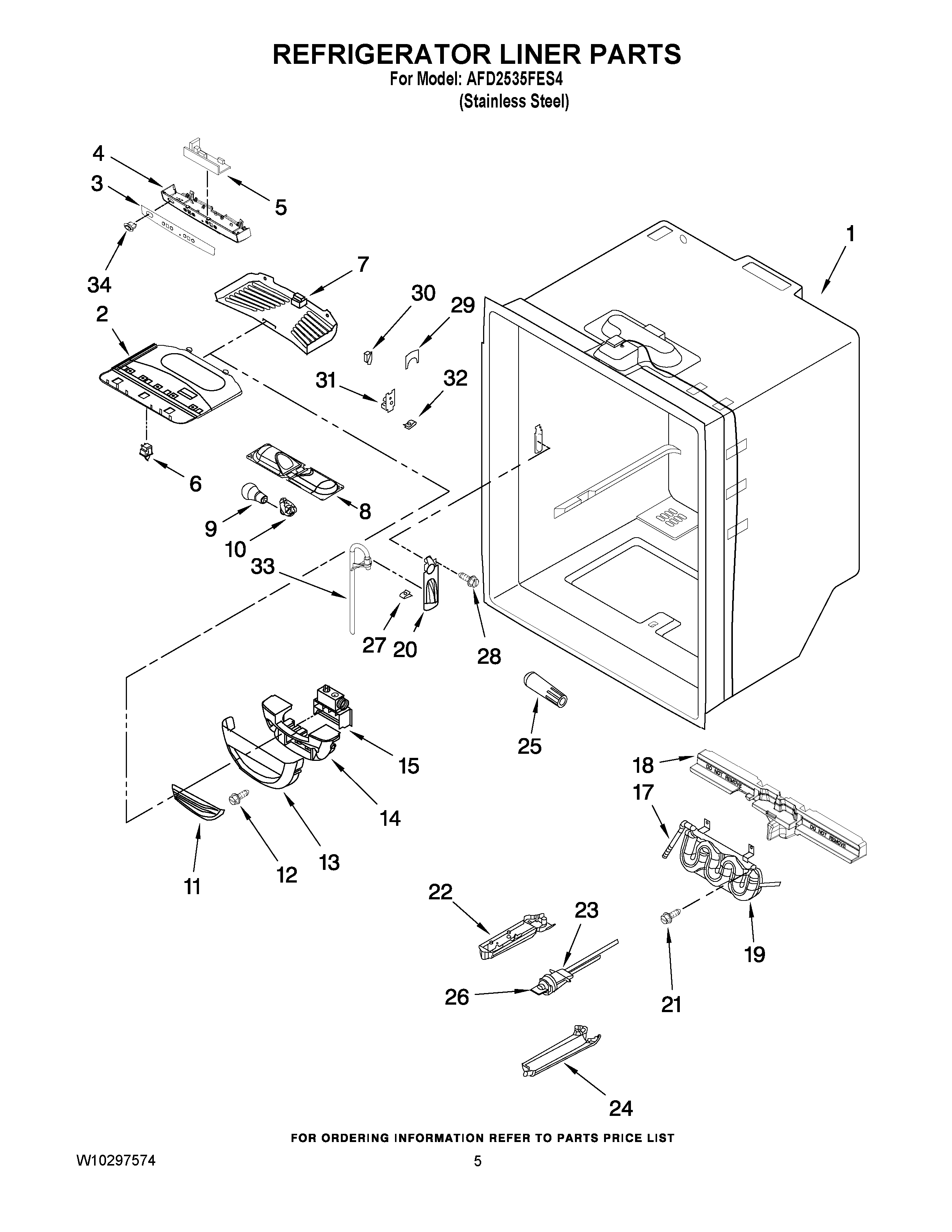

AFD2535FES4 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12816511
4	MAY 12806407
5	MAY 12868513
6	SWITCH, LIGHT (2)
7	MAY 12806501
8	MAY 12806601V
9	Bulb, Light (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	Control, Damper
17	WP2300868 Whirlpool Refrigerator Fitting
18	MAY W10117358
19	MAY 12706112
20	MAY 12706909SP
21	MAY 12990513
22	PLATE
23	MAY 12590620
24	WP12568001 Whirlpool Filter Cover
25	MAY UKF8001
26	MAY 12664501SP
27	MAY B8390302SP
28	SCREW (2)
29	FACADE, DISP (TOP)
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	MAY 12707303SP
32	MAY 12251001SP
33	MAY 12707206SP
34	MAY 12861601
