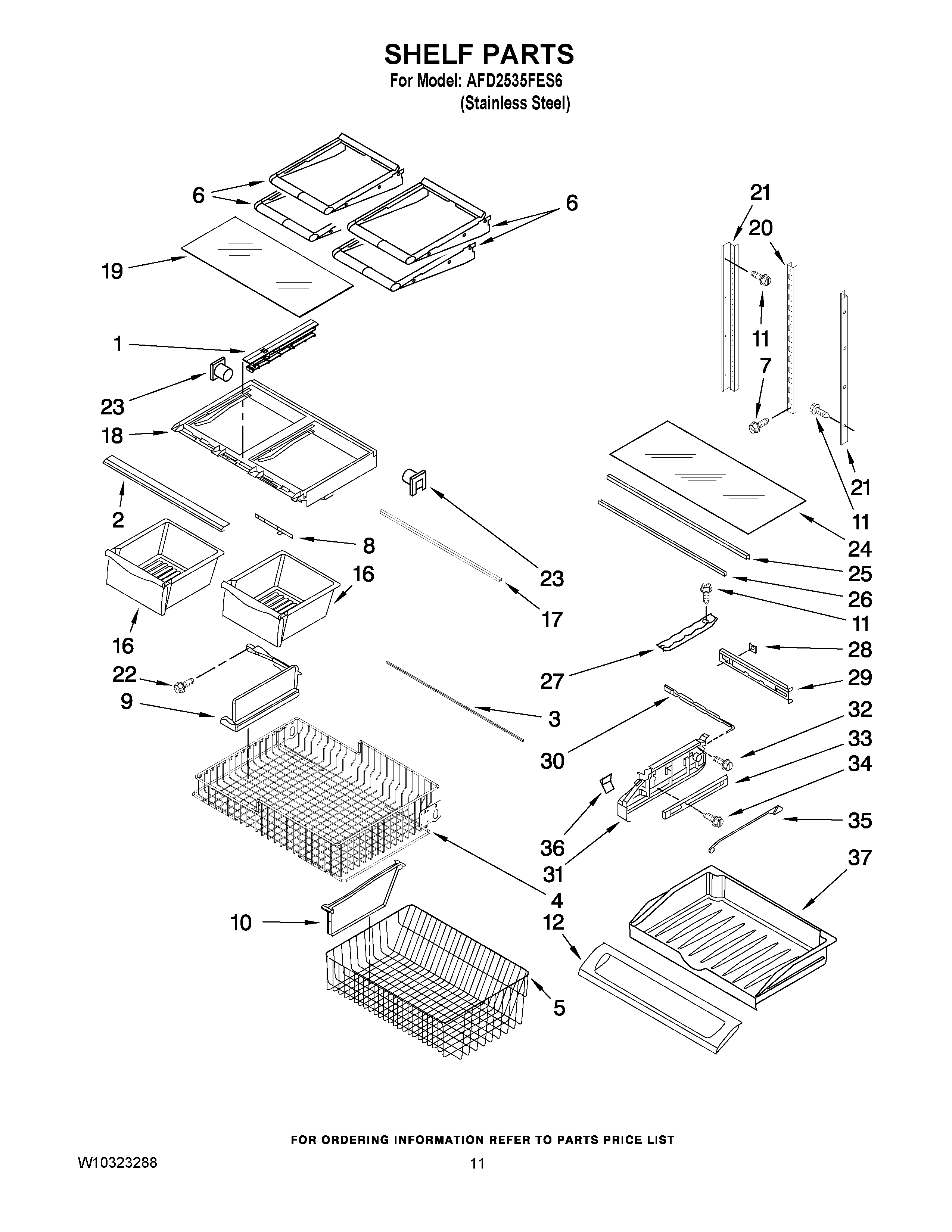

AFD2535FES6 06 – SHELF PARTS
Written by
in
AFD2535FES6 06 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER CRISPER
2
MAY W10231344
3
SHAFT
4
MAY 12896403
5
MAY 13016003
6
SHELF, GLIDE (4)
7
MAY 12990515
8
MAY 12530805SP
9
Divider, Upper Basket
10
DIVIDER, BASKET LOWER
11
MAY 12990513
12
LID, PANTRY
16
MAY 12724126
17
Brace, Crisper (2)
18
FRAME, CRISPER (2)
19
MAY 12204824
20
MAY W10273463
21
MAY W10251971
22
MAY 12990601
23
MAY 13062602
24
GLASS, PANTRY
25
MAY 12655902SP
26
MAY 12227305WD
27
TRACK, PANTRY
28
MAY 12656901
29
MAY 12656202
30
SLIDE, TEMPERATURE
31
ENDCAP, PANTRY (LEFT)
31
ENDCAP, PANTRY (RIGHT)
32
MAY 12990504V
33
MAY W10235370
34
SCREW (2)
35
ROD, TEMPERATURE CONTROL
36
MAY 12655204V
37
MAY 12731302
←
