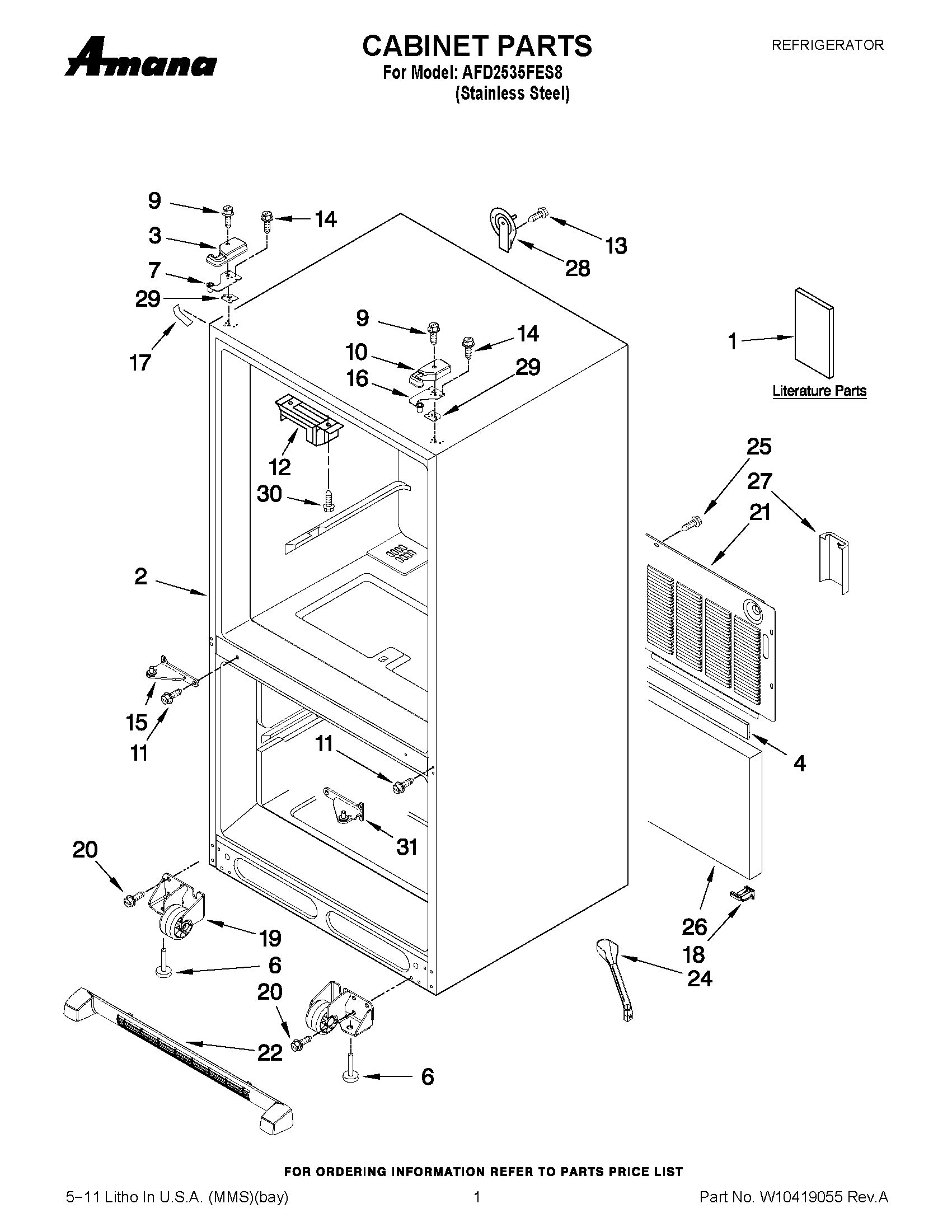

AFD2535FES8 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183263
1	MAY W10366212
1	MAY W10414026
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12684201B
4	MAY B5759655
6	Brake, Foot
7	MAY 12566607ED
9	MAY 12992602
10	MAY 12684202B
11	MAY 12990101
12	Block, Pivot
13	MAY 12992301
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
18	MAY 12831101
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY W10211855
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	MAY 12726003
29	MAY 12579702
30	SCREW (2)
31	HINGE, CENTER (BLACK, RIGHT )
