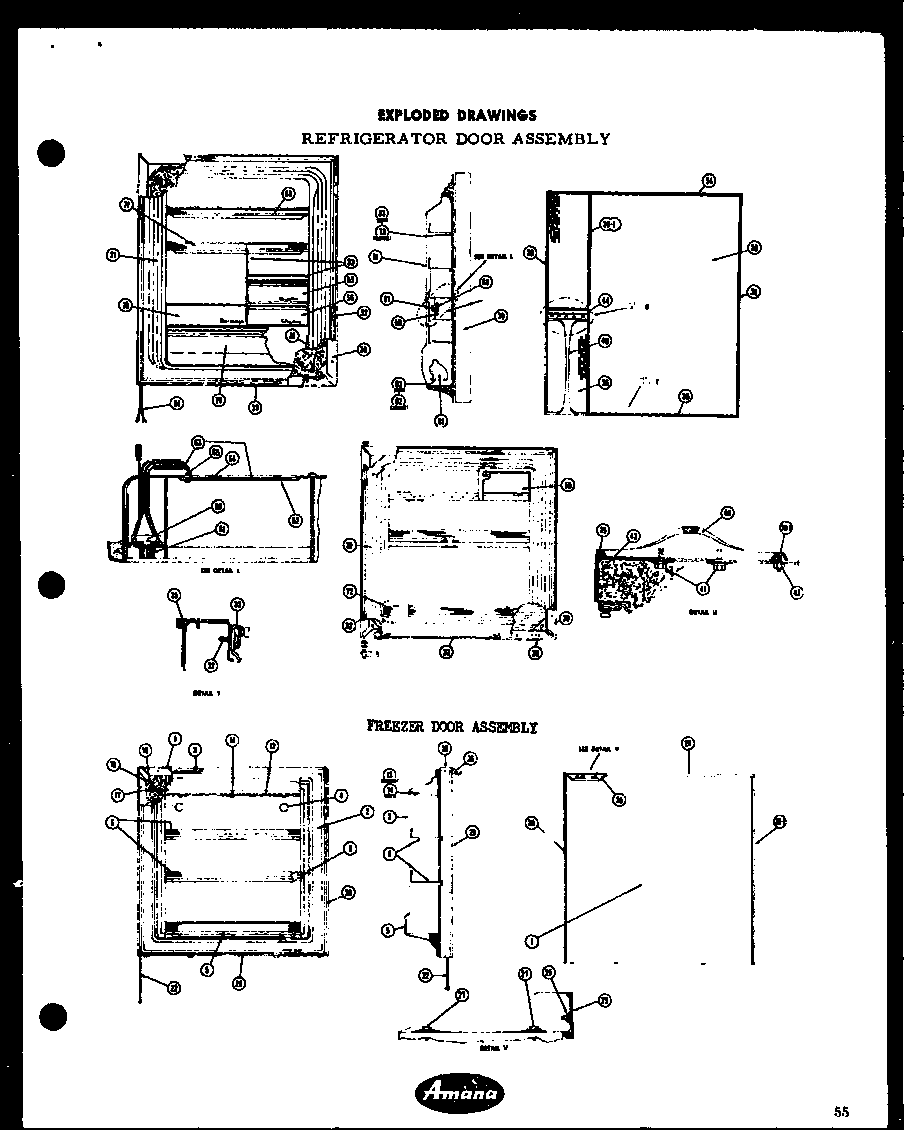

AFF105 04 – REF DOOR ASSY
Written by
in
AFF105 04 – REF DOOR ASSY
Products
Position
Product
NI
MAY A0384901
NI
MAY D3770003
NI
MAY M0280001
NI
MAY M0282504
NI
MAY M0287501
NI
MAY A0391701
NI
MAY M0205545
NI
MAY M0202729
NI
MAY A0391801
NI
MAY A3030301
NI
MAY M0214028
NI
MAY B0530205
1
MAY D3920811
1
MAY D3920841
1
MAY D3920821
1
MAY D3920851
1
MAY D3920831
2
MAY D3850005
4
MAY A0377804
5
MAY C3562501
6
MAY D3798901
8
MAY A3062901
12
MAY D3768301
17
MAY A3018201
18
MAY A3025701
19
MAY M0240218
20
MAY D3774408
21
MAY B0532701
22
MAY B0531601
26
MAY D3850401
27
MAY M0248129
28
MAY D3796609
28
MAY D3799702
29
MAY D3796617
30
MAY D3920824
30
MAY D3920814
30
MAY D3920844
30
MAY D3920854
30
MAY D3920834
31
MAY D3796703
32
MAY M0241118
33
MAY D3786408
34
MAY D3796201
35
MAY D3796203
36
MAY B0543406
37
MAY B0543509
38
MAY D3796607
39
MAY D3794902
39
MAY D3796602
40
MAY D3797801
41
MAY M0248130
43
MAY M0289802
44
MAY C3541204
53
MAY D3799003
55
MAY D3747609
56
MAY D3747610
59
MAY B0542501
60
MAY B0541401
61
MAY B0541403
62
MAY C0695406
63
MAY C3569401
64
MAY A3030201
65
MAY M0211517
68
MAY D3797501
70
MAY D3875601
71
MAY D3797401
72
MAY B0530005
79
MAY D3753109
81
MAY C3512709
81
MAY C3512710
82
MAY A0288701
82
SEE NOTE GROUND WIRE, GREEN
83
MAY M0211631
84
MAY B0535301
←
