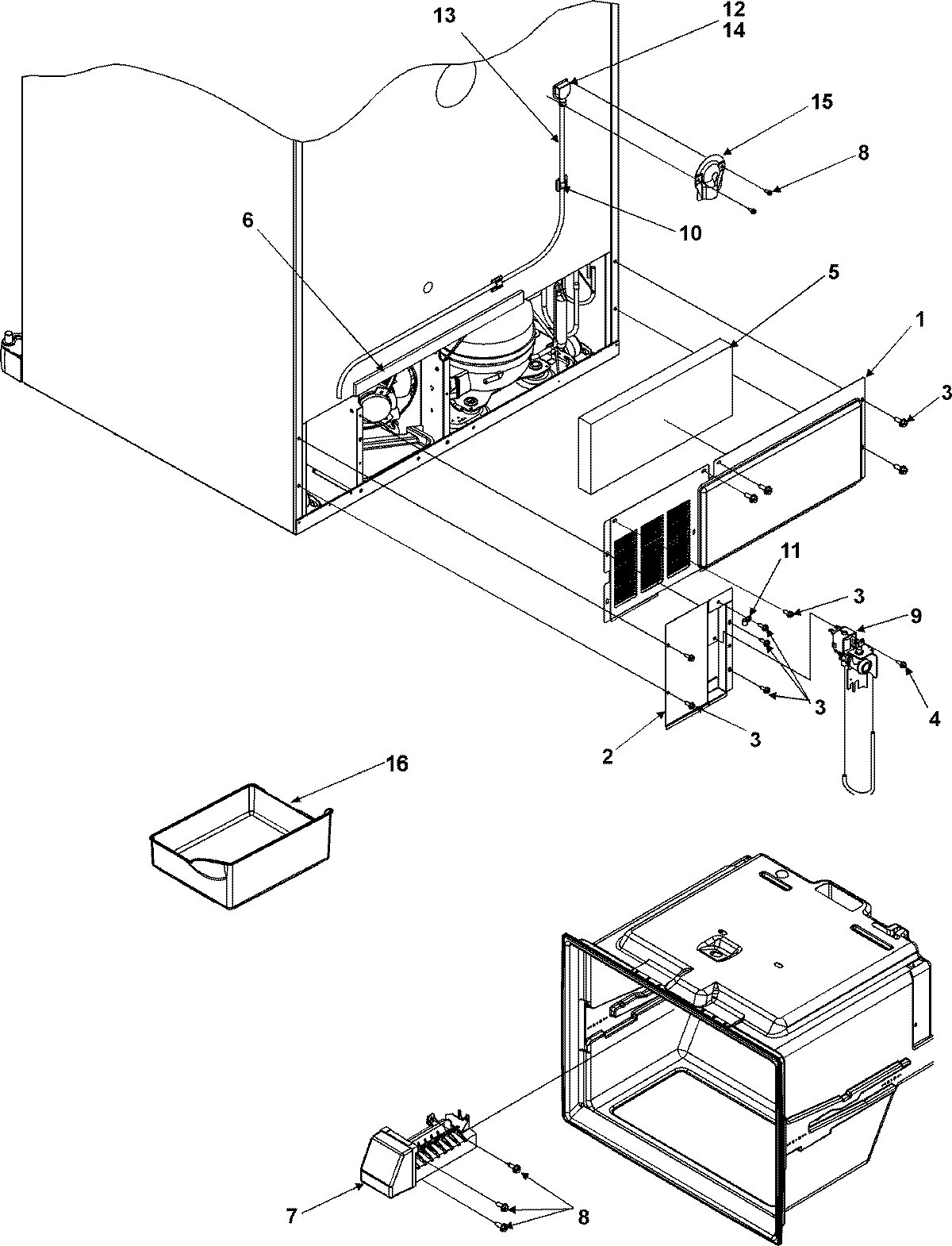

AFF2534FEB 01 – CABINET BACK

Products

Position	Product
NI	WP67006506 Whirlpool Refrigerator Power Cord
1	MAY 67006101
2	MAY 12479803
3	Screw (10)
4	MAY 67006662
5	67003796 Whirlpool Refrigerator Fiber Acoustic
6	Gasket
7	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
7	WPD7813010 Whirlpool Refrigerator Wire Harness
7	ARM-SHUT
7	WPW10289690 Whirlpool Ice Maker Cover
8	WP98165 Whirlpool Screw
9	WP67003753 Whirlpool Refrigerator Inlet Valve
10	WPM0104106 Whirlpool Refrigerator Clip
11	W10833902 Whirlpool Refrigerator Clamp
12	W11181718 Whirlpool Refrigerator Water Tube
13	Tubing, Plastic
13	MAY A3223101
14	ELBOW, FILL TUBE
15	COVER, WATER LINE
16	WP67001255 Whirlpool Ice Bucket
