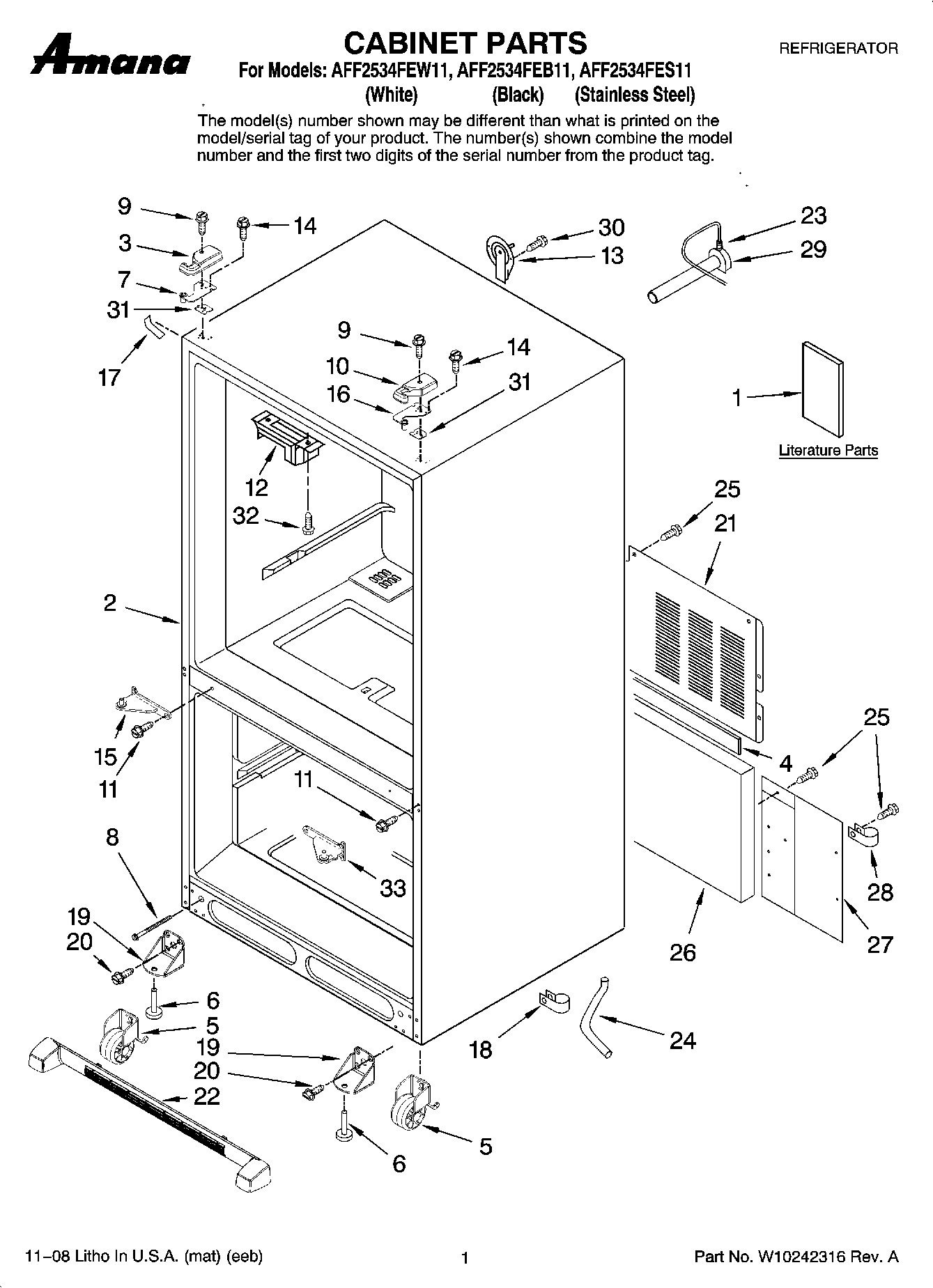

AFF2534FEB11 01 – CABINET PARTS

Products

Position	Product
1	MAY W10133234
1	MAY 12827952
1	Use & Care Guide
3	MAY 12684201W
3	MAY 12684201B
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	Hinge, Top Left
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	MAY 12684202B
10	MAY 12684202W
11	MAY 67005822
12	WP67003405 Whirlpool Pivot Block
13	COVER, WATER LINE
14	WP489349 Whirlpool Refrigerator Screw
15	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15	W10918113 Whirlpool Refrigerator Door Hinge
16	Hinge, Top
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	MAY 67006101
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	Clip
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 12479803
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY W10137519
30	WP98165 Whirlpool Screw
31	MAY 12579702
32	WP7101P126-60 Whirlpool Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
33	MAY 67006379
