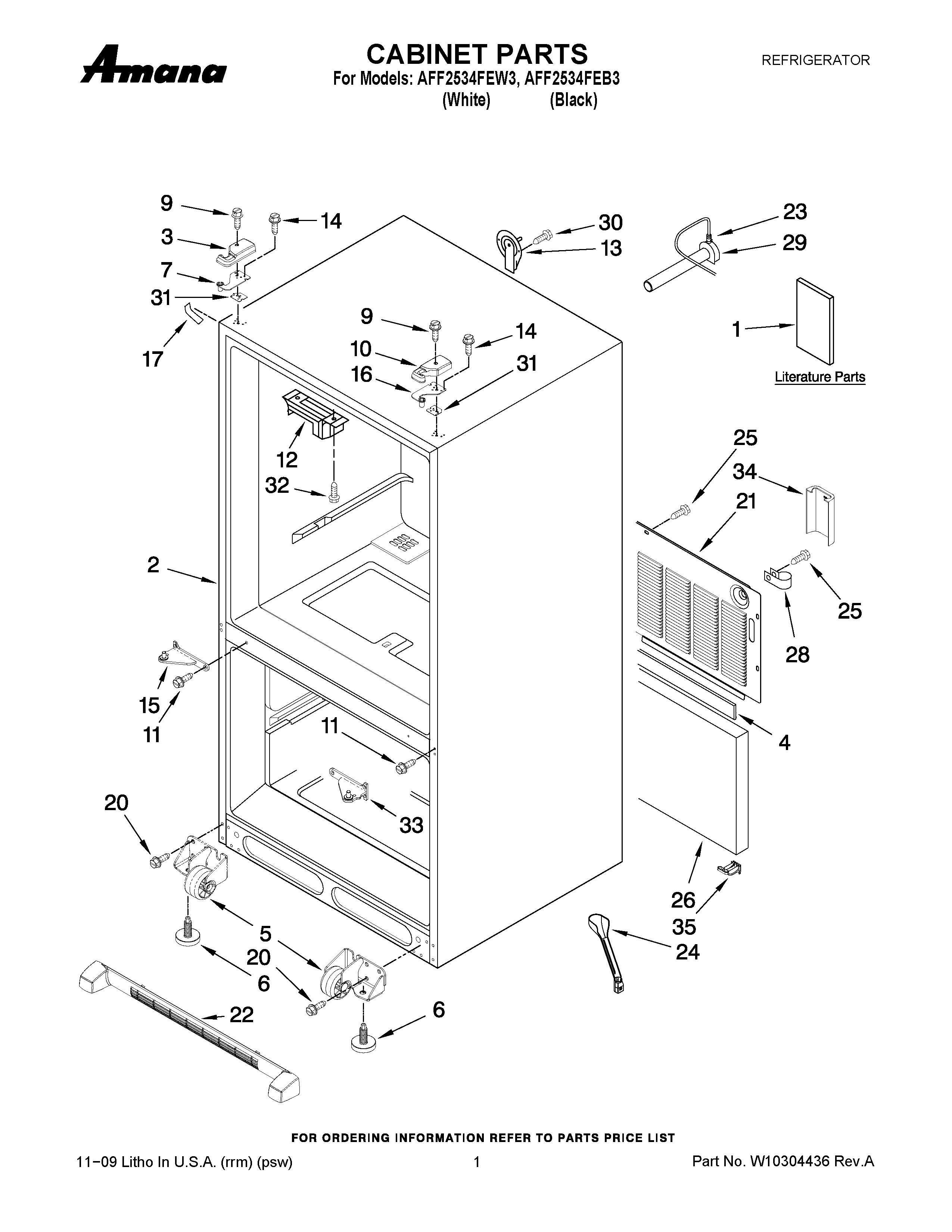

AFF2534FEB3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183286
1	MAY W10279332
1	MAY W10175445
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12684201WSP
3	MAY 12684201BSP
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
6	Foot Brake (2)
7	Hinge, Top Left
9	MAY 12992602
10	MAY 12684202B
10	MAY 12684202W
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
15	Hinge, Center (LT) (White)
16	Hinge, Top
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
20	Screw (8)
21	MAY W10211854
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY W10137519
30	MAY 12990504
31	MAY 12579702
32	SCREW (2)
33	HINGE, CENTER (BLACK, RIGHT )
33	Hinge, Center (RT) (White)
34	GUARD-WATER VALVE
35	MAY W10216614
