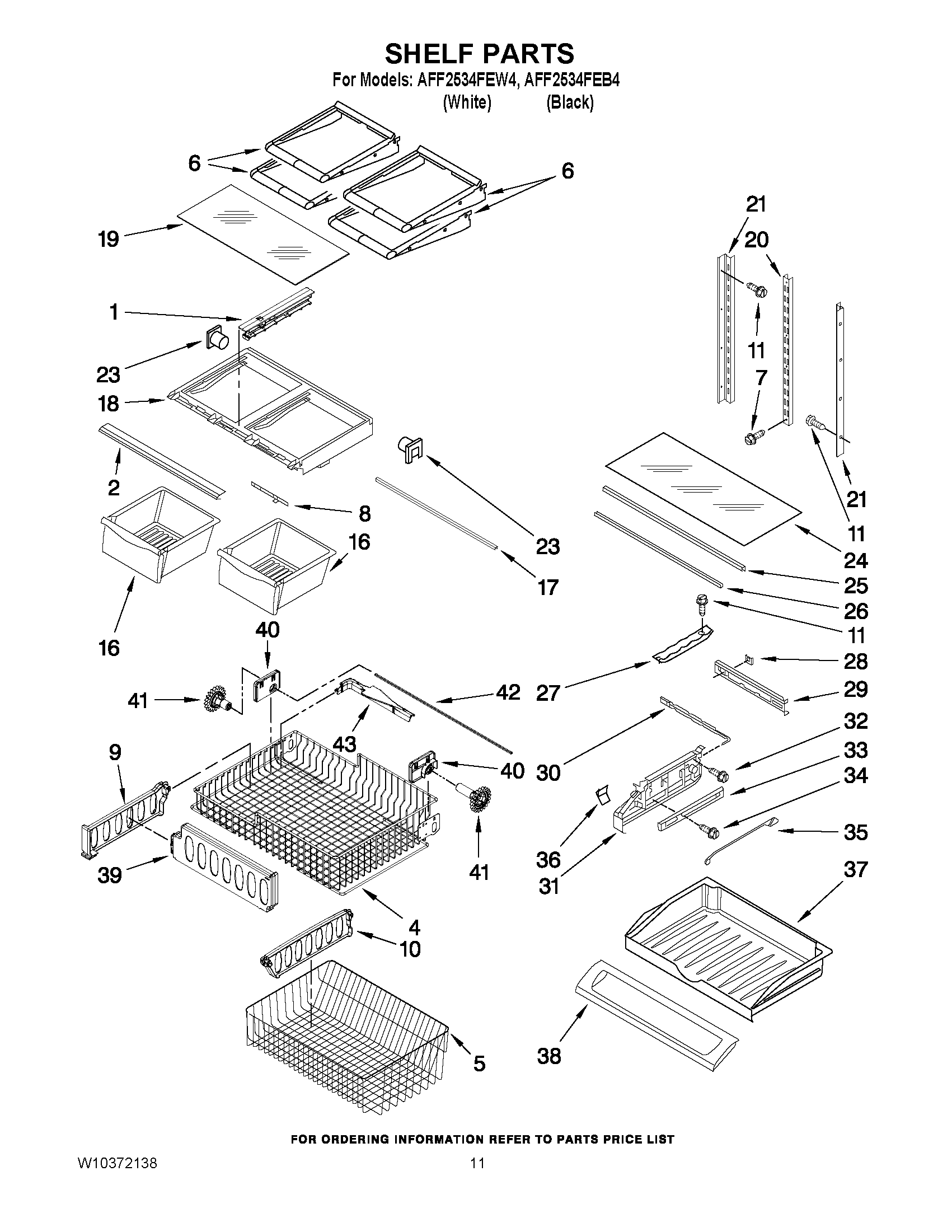

AFF2534FEB4 07 – SHELF PARTSadmin2025-04-26T09:23:47+00:00AFF2534FEB4 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | RAIL, CENTER |
| 2 | MAY W10231344 |
| 4 | MAY W10209706 |
| 5 | Basket, Freezer (Lower) |
| 6 | SHELF, GLIDE (4) |
| 7 | MAY W10215666 |
| 8 | MAY 12530805SP |
| 9 | Divider, Upper Basket |
| 10 | Divider, Lower Basket |
| 11 | MAY 12990513 |
| 16 | MAY 12804601SP |
| 17 | Brace, Crisper (2) |
| 18 | MAY W10329866 |
| 19 | MAY 12204824 |
| 20 | MAY W10273463 |
| 21 | MAY W10251971 |
| 23 | MAY 13062602 |
| 24 | GLASS, PANTRY |
| 25 | MAY 12655902SP |
| 26 | MAY 12227305WD |
| 27 | TRACK, PANTRY |
| 28 | MAY 12656901 |
| 29 | MAY 12656202 |
| 30 | SLIDE, TEMPERATURE |
| 31 | ENDCAP, PANTRY (RIGHT) |
| 31 | ENDCAP, PANTRY (LEFT) |
| 32 | MAY 12990504 |
| 33 | MAY W10235370 |
| 34 | SCREW (2) |
| 35 | ROD, TEMPERATURE CONTROL |
| 36 | MAY 12655204V |
| 37 | MAY 12731302 |
| 38 | LID, PANTRY |
| 39 | MAY W10171558 |
| 40 | MOUNT-GEAR (RIGHT HAND) |
| 40 | MOUNT-GEAR (LEFT HAND) |
| 41 | MAY W10158749 |
| 41 | MAY W10146446 |
| 42 | MAY 12812904WD |
| 43 | MAY W10149389 |
