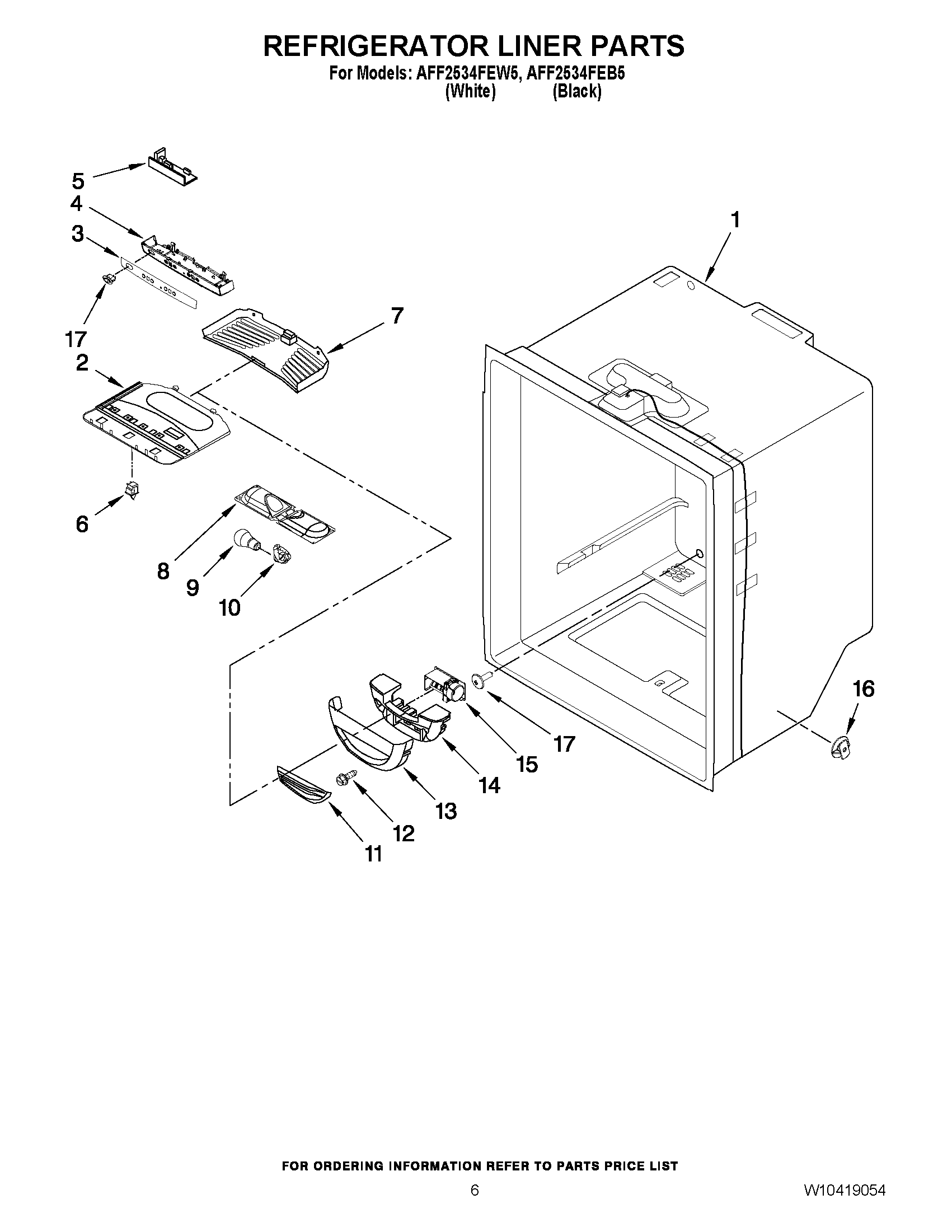

AFF2534FEB5 04 – REFRIGERATOR LINER PARTS

AFF2534FEB5 04 – REFRIGERATOR LINER PARTS

Written by

in

AFF2534FEB5 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHARNESS, CONTROLS (REFRIGERATOR) (INCLUDES THERMISTOR)
1LINER (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3MAY W10317181
4MAY 12806407
5MAY 12784415V
6SWITCH, LIGHT (2)
7MAY 12806501
8MAY 12806601V
9BULB, LIGHT (2)
10Socket, Light
11MAY 12806801
12MAY 12990604
13MAY 12806701
14INSULATION
15Control, Damper
16MOUNT, CRISPER
17MAY 12861601
