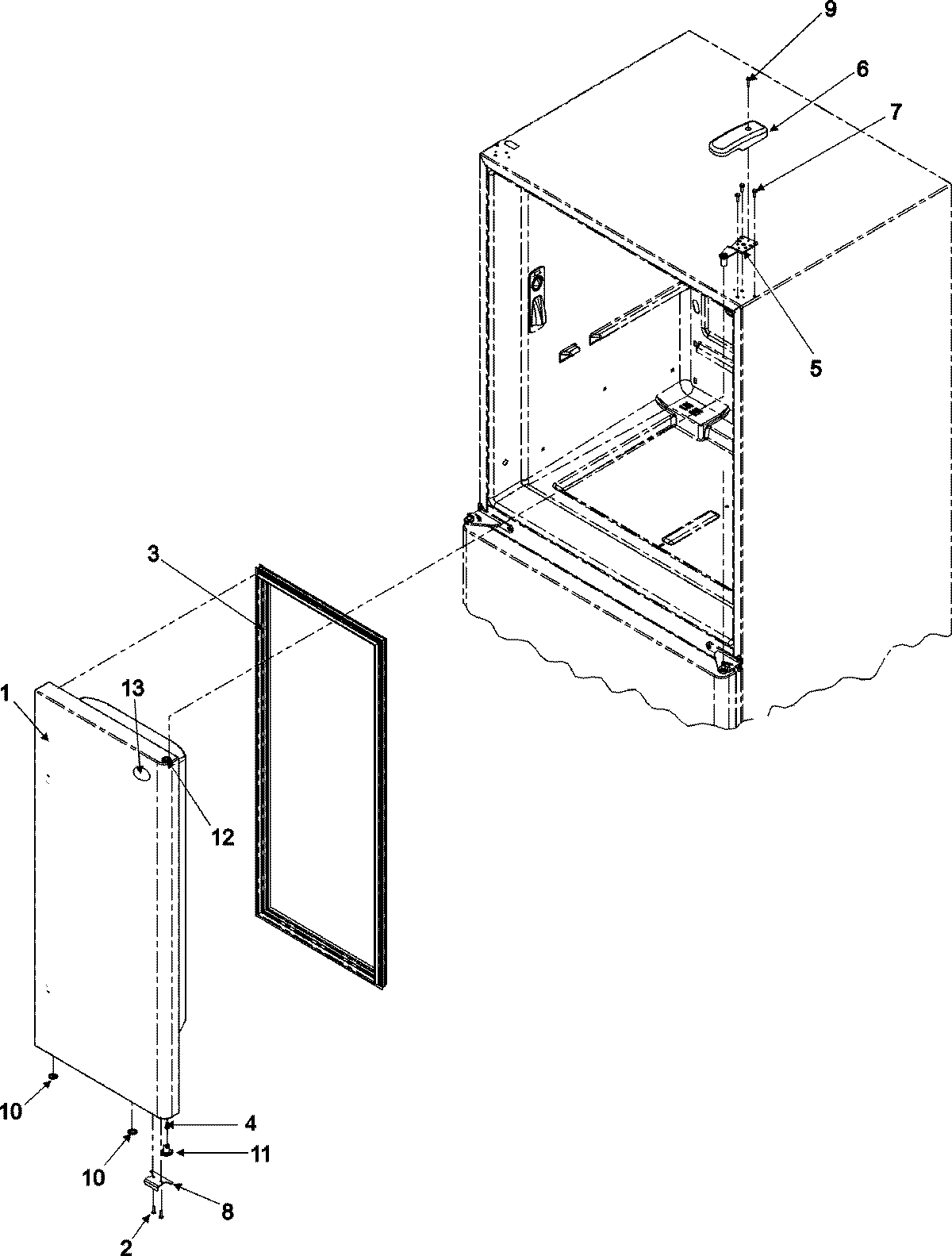

AFF2534FES 13 – RIGHT REFRIGERATOR DOOR

AFF2534FES 13 – RIGHT REFRIGERATOR DOOR

Written by

in

AFF2534FES 13 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1Door, Right (Stainless Steel)
2WP98165 Whirlpool Screw
3GASKET-FIP
4WP67002731 Whirlpool Refrigerator Door Bushing
5Hinge, Top
5MAY 12695602
6MAY 12684202B
7WP489349 Whirlpool Refrigerator Screw
8W11708403 Whirlpool Door Stop
9WP8281196 Whirlpool Screw
1067004838 Whirlpool Refrigerator Button Vent Plug
11WP67003639 Whirlpool Refrigerator Closer
1267004978 Whirlpool Refrigerator Black Door Bushing
13Y12528501 Whirlpool Refrigerator Nameplate
