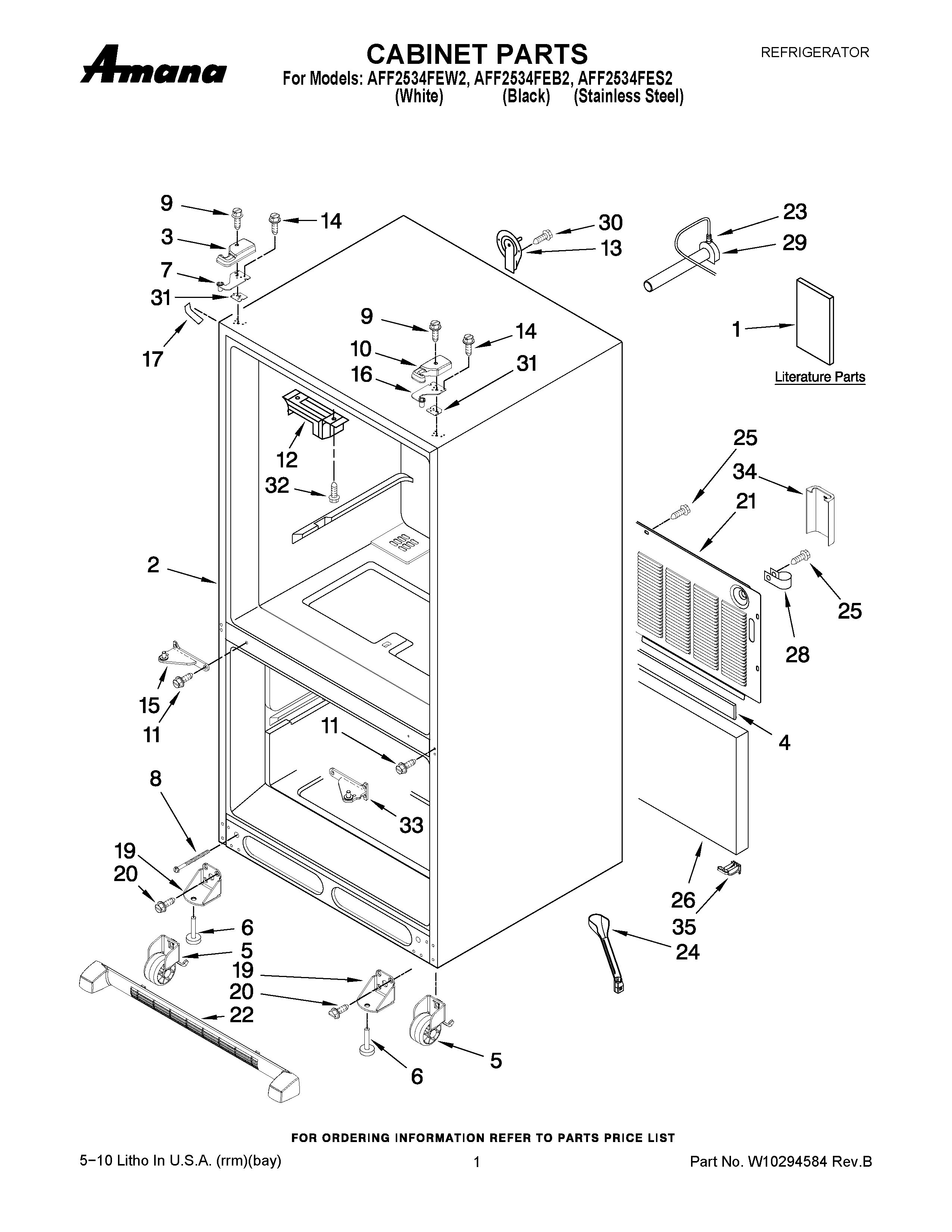

AFF2534FES2 01 – CABINET PARTSadmin2025-04-26T09:23:45+00:00AFF2534FES2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10183286 |
| 1 | MAY W10238844 |
| 1 | MAY W10175445 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | MAY 12684201BSP |
| 3 | MAY 12684201WSP |
| 4 | MAY B5759655 |
| 5 | ROLLER ASSY.(REAR) |
| 6 | Foot Brake (2) |
| 7 | Hinge, Top Left |
| 8 | Bolt, Adjusting (Rear) |
| 9 | MAY 12992602 |
| 10 | MAY 12684202W |
| 10 | MAY 12684202B |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 13 | MAY 12726003 |
| 14 | SCREW (6) |
| 15 | Hinge, Center (LT) (White) |
| 15 | HINGE, CENTER (BLACK, LEFT) |
| 16 | Hinge, Top |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 19 | Bracket, Foot |
| 20 | Screw (8) |
| 21 | MAY W10211854 |
| 22 | MAY W10244559 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 23 | CLIP |
| 24 | MAY W10210988 |
| 25 | SCREW (10) |
| 26 | Insulation, Sound |
| 28 | W10833902 Whirlpool Refrigerator Clamp |
| 29 | MAY W10137519 |
| 30 | MAY 12990504 |
| 31 | MAY 12579702 |
| 32 | SCREW (2) |
| 33 | HINGE, CENTER (BLACK, RIGHT ) |
| 33 | Hinge, Center (RT) (White) |
| 34 | GUARD-WATER VALVE |
| 35 | MAY W10216614 |
