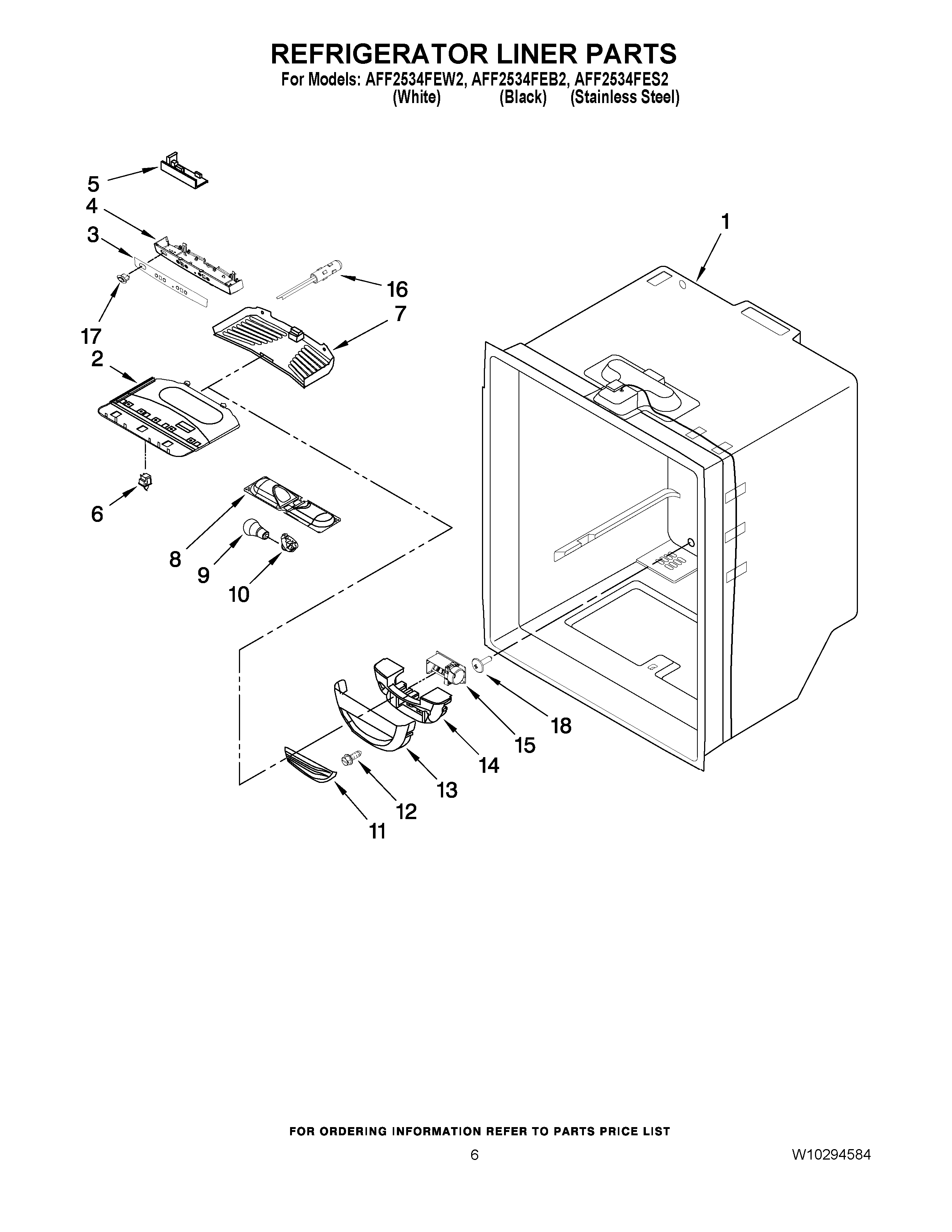

AFF2534FES2 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12816511
4	MAY 12806407
5	MAY 12868513
6	SWITCH, LIGHT (2)
7	MAY 12806501
8	MAY 12806601V
9	Bulb, Light (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	Control, Damper
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	MAY 12861601
18	A3076901 Whirlpool Refrigerator Plug
