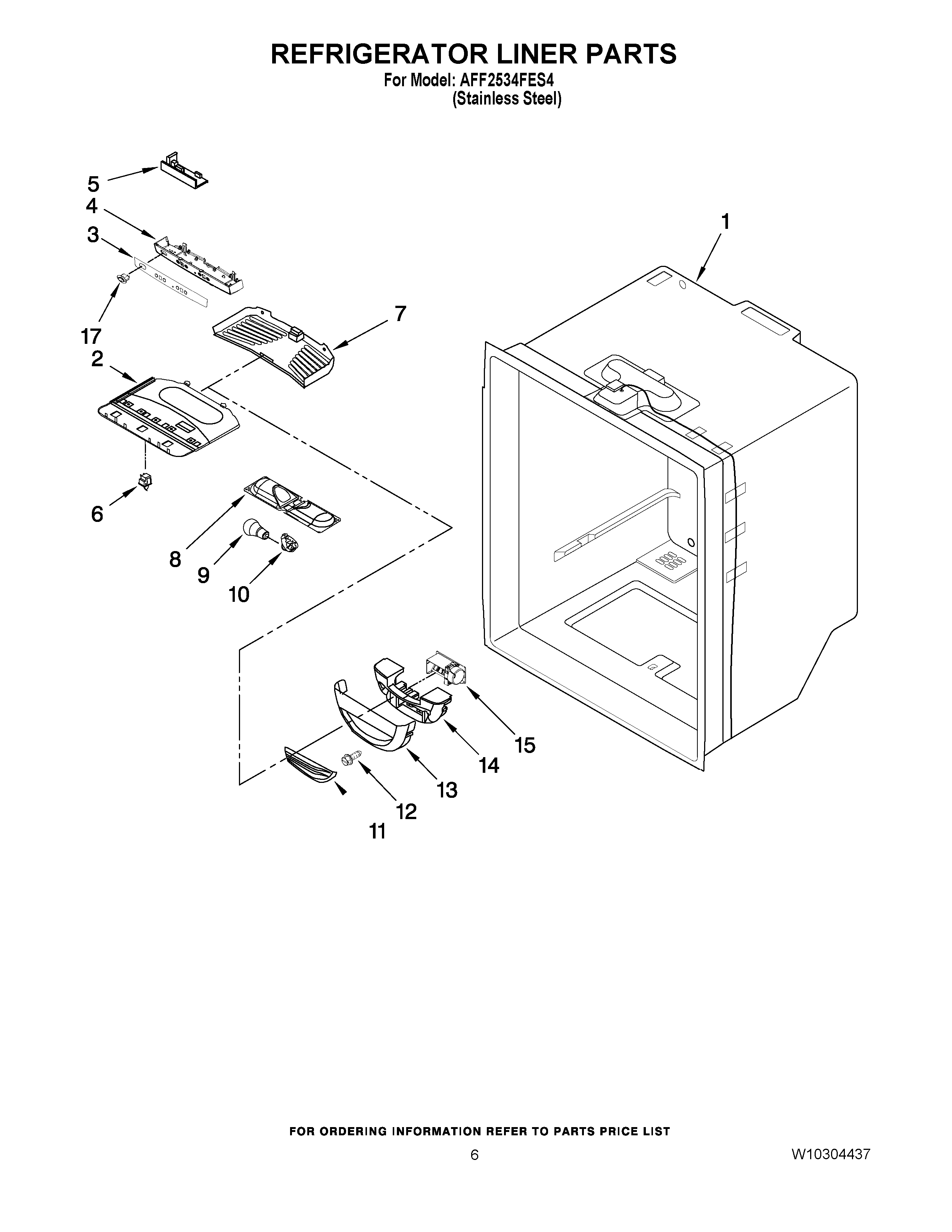

AFF2534FES4 04 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
NI	HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12816511
4	MAY 12806407
5	MAY 12868513
6	SWITCH, LIGHT (2)
7	MAY 12806501
8	MAY 12806601V
9	Bulb, Light (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	Control, Damper
17	MAY 12861601
