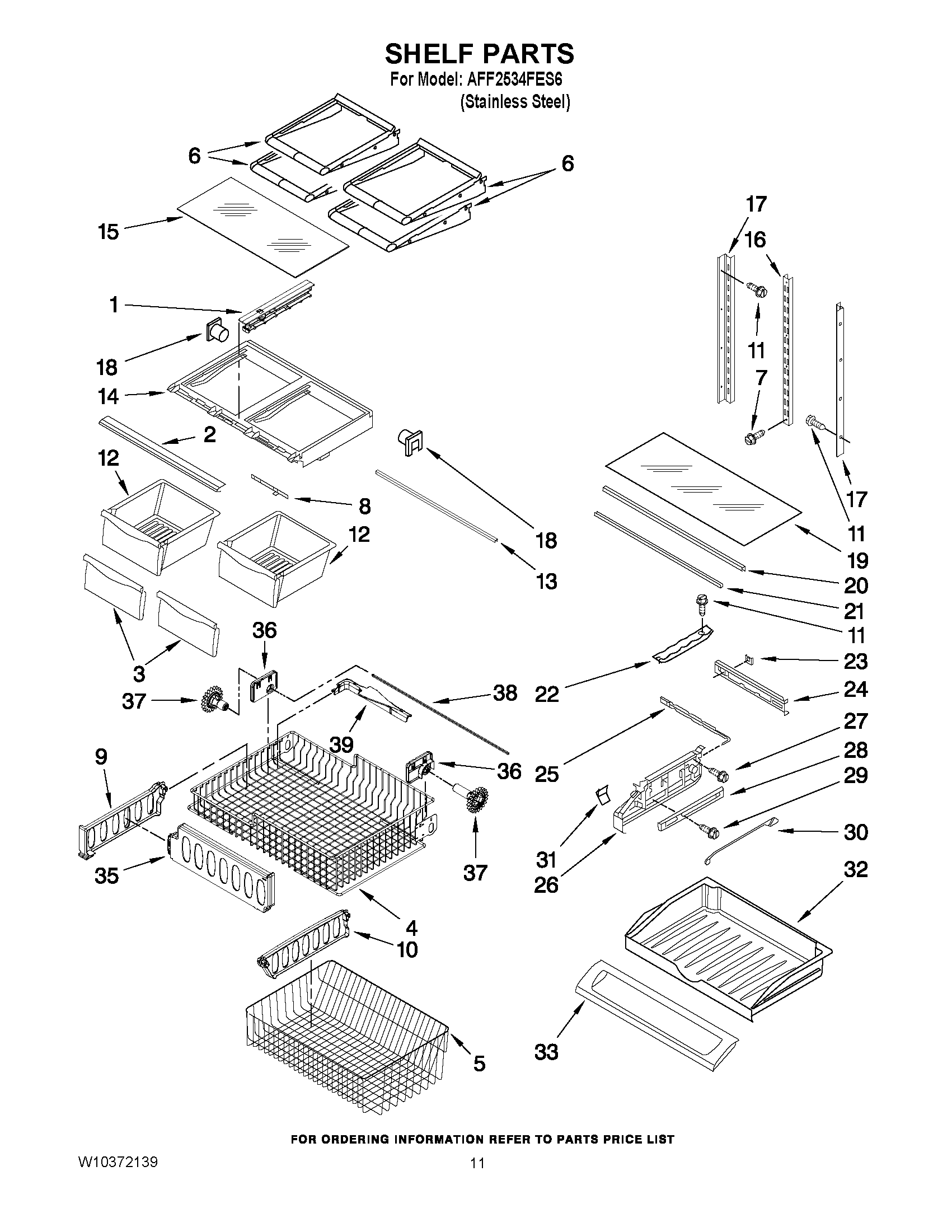

AFF2534FES6 07 – SHELF PARTS
Written by
in
AFF2534FES6 07 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER
2
MAY W10231344
3
FRONT-CRISPER PAN
4
MAY W10209706
5
Basket, Freezer (Lower)
6
SHELF, GLIDE (4)
7
MAY W10215666
8
MAY 12530805SP
9
Divider, Upper Basket
10
Divider, Lower Basket
11
MAY 12990513
12
MAY 12804601SP
13
Brace, Crisper (2)
14
MAY W10329866
15
MAY 12204824
16
MAY W10273463
17
MAY W10251971
18
MAY 13062602
19
GLASS, PANTRY
20
MAY 12655902SP
21
MAY 12227305WD
22
TRACK, PANTRY
23
MAY 12656901
24
MAY 12656202
25
SLIDE, TEMPERATURE
26
ENDCAP, PANTRY (LEFT)
26
ENDCAP, PANTRY (RIGHT)
27
MAY 12990504V
28
MAY W10235370
29
SCREW (2)
30
ROD, TEMPERATURE CONTROL
31
MAY 12655204V
32
MAY 12731302
33
LID, PANTRY
35
MAY W10171558
36
MOUNT-GEAR (LEFT HAND)
36
MOUNT-GEAR (RIGHT HAND)
37
MAY W10158749
37
MAY W10146446
38
MAY 12812904WD
39
MAY W10149389
←
