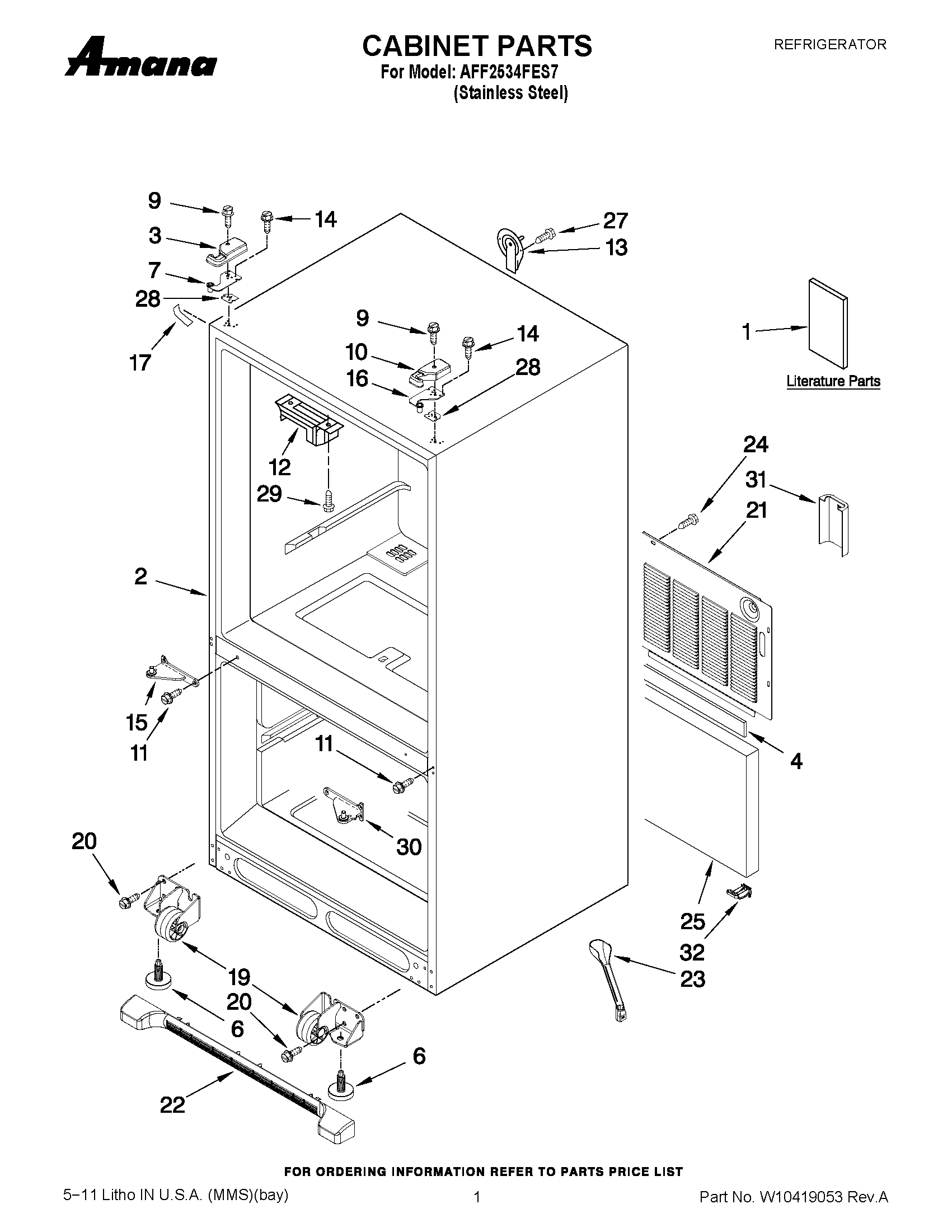

AFF2534FES7 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183286
1	MAY W10366212
1	MAY W10414026
2	LINER (NOT A SERVICEABLE PART)
3	COVER, LEFT HINGE
4	MAY B5759655
6	Brake, Foot
7	MAY 12566607ED
9	MAY 12992602
10	MAY 12684202B
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10211854
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY W10210988
24	SCREW (10)
25	Insulation, Sound
27	MAY 12990504V
28	MAY 12579702
29	SCREW (2)
30	HINGE, CENTER (BLACK, RIGHT )
31	GUARD-WATER VALVE
32	MAY W10216614
