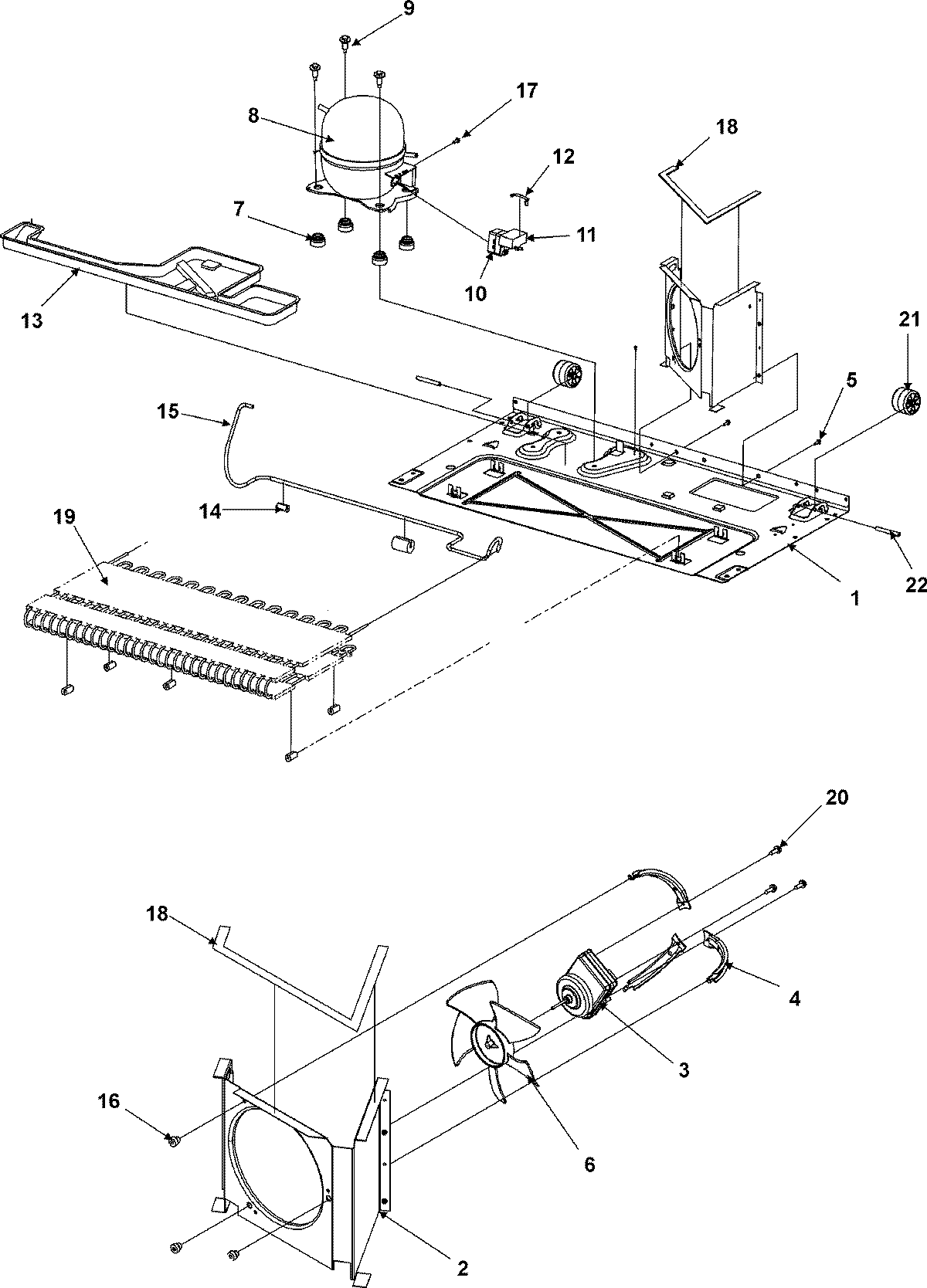

AFF2534FEW 02 – COMPRESSOR

Products

Position	Product
NI	Harness, Unit (Includes Cord)
1	MAY 67005889
2	SHROUD, COND FAN
3	MAY 67004432
4	MAY 67004953
5	GROMMET, BRACKET
6	W10156818 Whirlpool Refrigerator Fan Blade
7	67003493 Whirlpool Refrigerator Compressor Grommet
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY 67006432
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	Capacitor
12	MAY 67007052
13	WP12579803 Whirlpool Refrigerator Drain Pan
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
17	Screw (10)
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
20	WP67004954 Whirlpool Refrigerator Screw
21	WP67005149 Whirlpool Roller
22	67006434 Whirlpool Axle Pin
