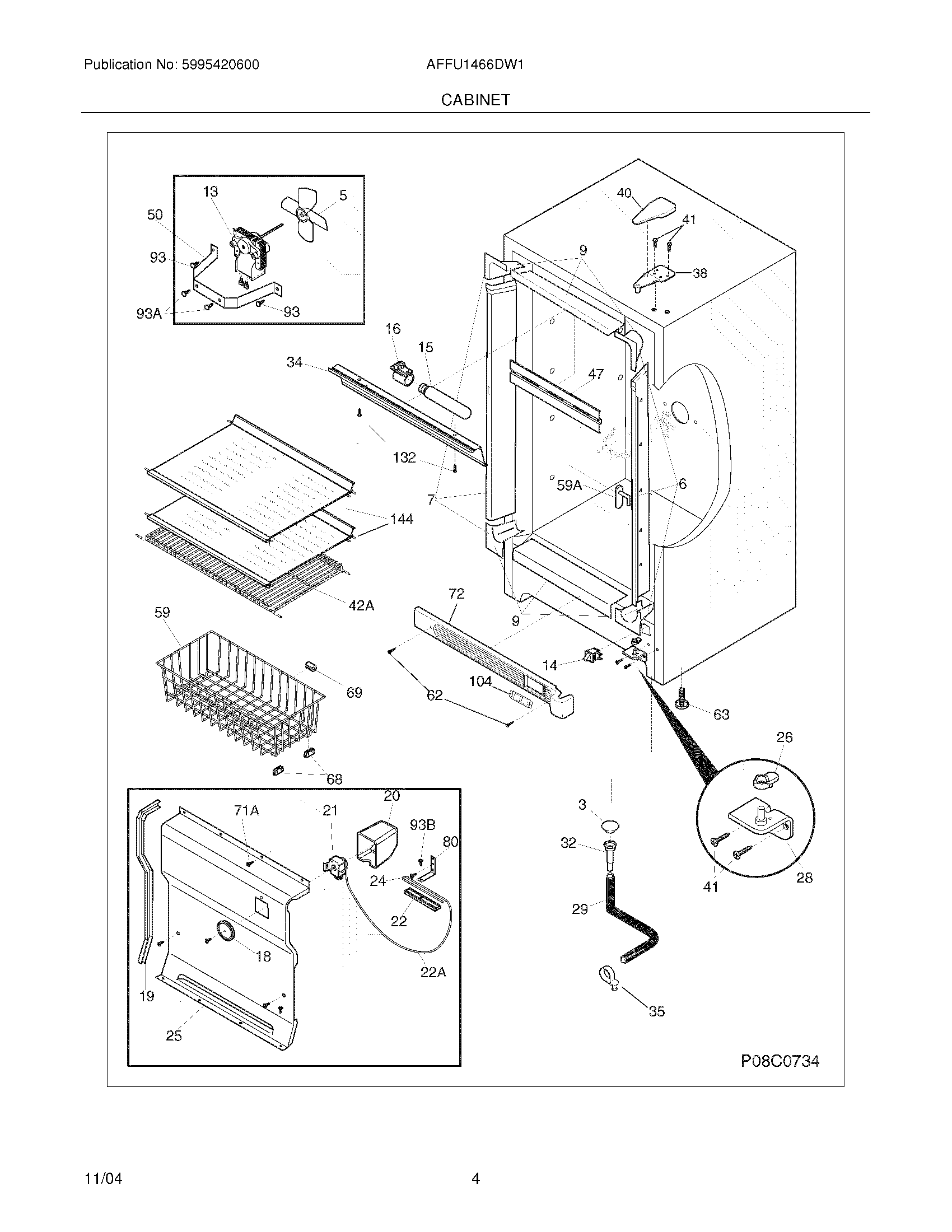

AFFU1466DW1 05 – CABINET

Products

Position	Product
NI	WCI 216795311
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	216912401 Frigidaire Refrigerator Screw
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 09948773
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604300
7	WCI 216603800
9	WCI 216603400
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204900
20	WCI 216230300
21	216788000 Frigidaire Freezer Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216820100
26	WCI 216503300
28	WCI 216247400
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816213
35	297315800 Frigidaire Refrigerator Clip
38	WCI 216939100
40	297164400 Frigidaire Refrigerator Hinge Cover
41	WCI 216954400
42A	WCI 216546200
47	297192903 Frigidaire Refrigerator Baffle
50	WCI 216394000
59	WCI 216826400
59A	STOP-BASKET, (2)
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	134178901 Frigidaire Screw
72	WCI 216947000
80	WCI 06594601
93A	216629601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
104	WCI 216926700
104	WCI 216948401
132	WCI 5303283898
144	WCI 216922303
