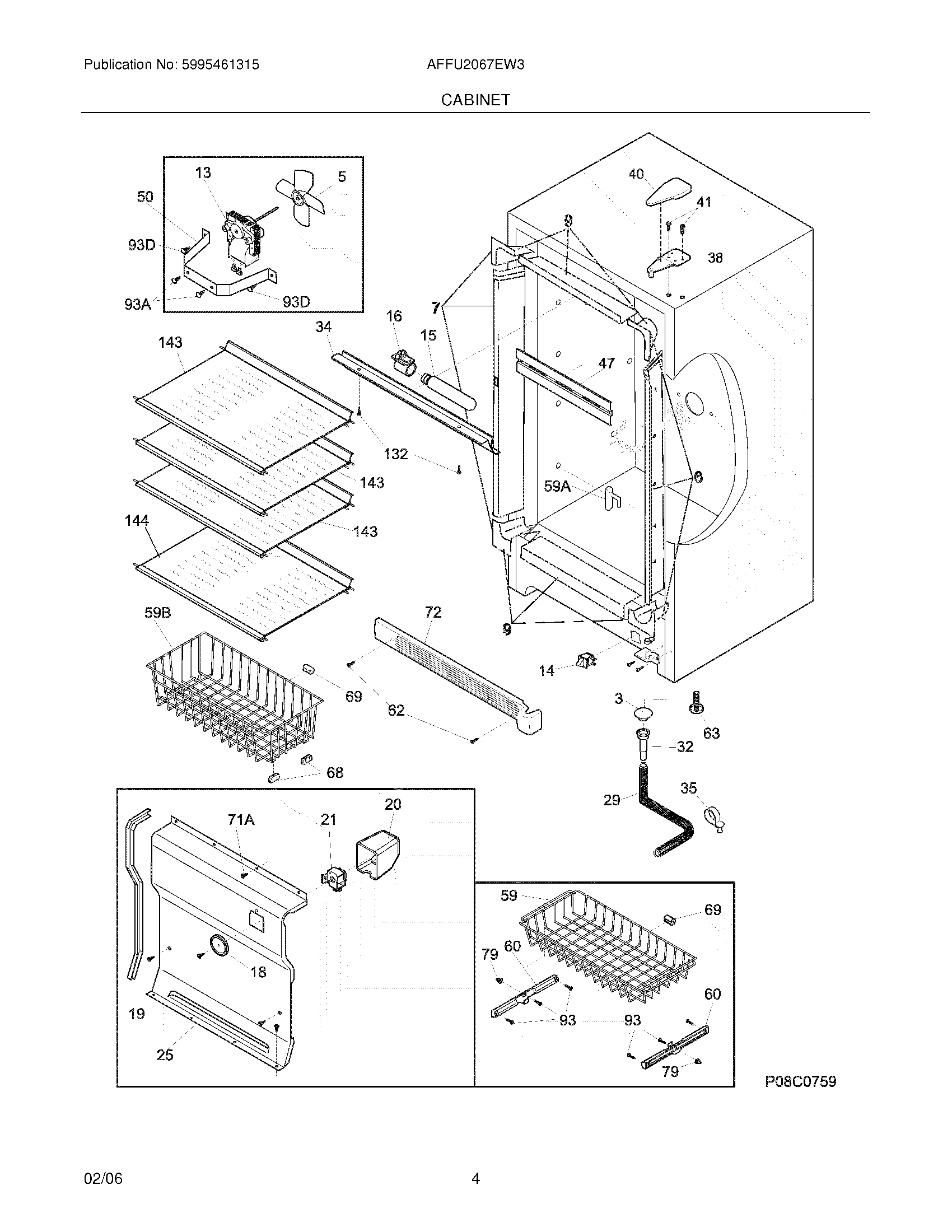

AFFU2067EW3 05 – CABINET

AFFU2067EW3 05 – CABINET

Written by

in

AFFU2067EW3 05 – CABINET

Products

Position	Product
NI	241586701 Frigidaire Refrigerator Plug
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	240494001 Frigidaire Refrigerator Plug Button
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 216893800
NI	WCI 216795510
NI	WCI 216893600
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604100
7	WCI 216603600
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204901
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	WCI 216844500
25	WCI 216820300
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816221
35	297315800 Frigidaire Refrigerator Clip
38	WCI 216939100
40	297164400 Frigidaire Refrigerator Hinge Cover
41	Screw-hinge,12-24x.700 HWH
47	297192903 Frigidaire Refrigerator Baffle
50	WCI 216394000
59B	WCI 216826500
59A	STOP-BASKET, (2)
59	WCI 216880100
60	297013500 Frigidaire Refrigerator Slide
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	134178901 Frigidaire Screw
72	297036907 Frigidaire Refrigerator Grille Kickplate
79	301036 Frigidaire Refrigerator Insert Nut
93	216858001 Frigidaire Refrigerator Screw
93D	216912401 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
132	WCI 5303283898
143	WCI 216922302
144	Shelf-assy,fixed,glass ,(3) ,complete
