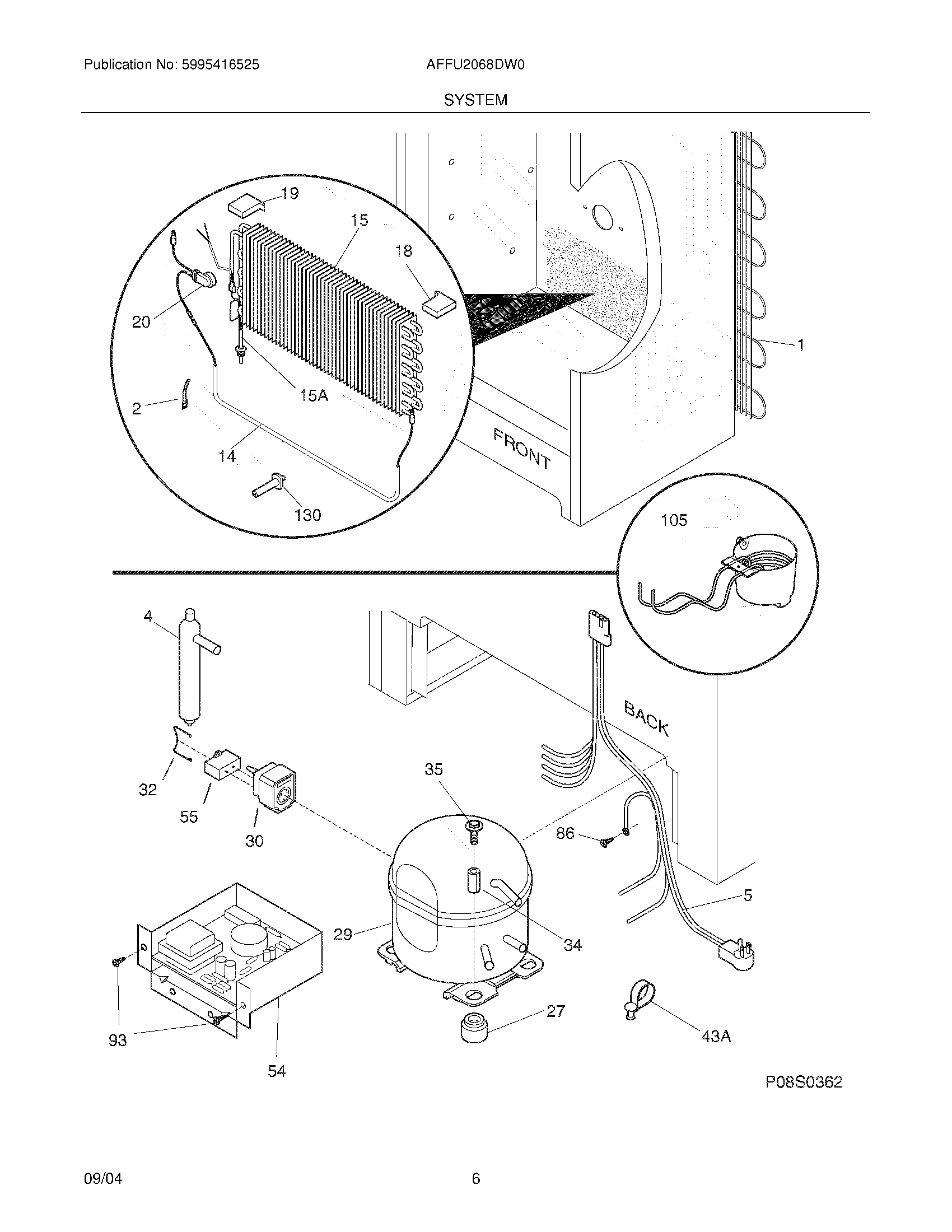

AFFU2068DW0 07 – SYSTEM

AFFU2068DW0 07 – SYSTEM

Written by

in

AFFU2068DW0 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NISPACER, COMPRESSOR
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216888700
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
27216498900 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
305304491585 Frigidaire Refrigerator Controller Kit
32WCI 216649100
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
54WCI 216833800
555304464438 Frigidaire Compressor Run Capacitor
86216858001 Frigidaire Refrigerator Screw
93216036601 Frigidaire Refrigerator Screw
105216999900 Frigidaire Refrigerator Cup-Drain
130297244700 Frigidaire Refrigerator Support
