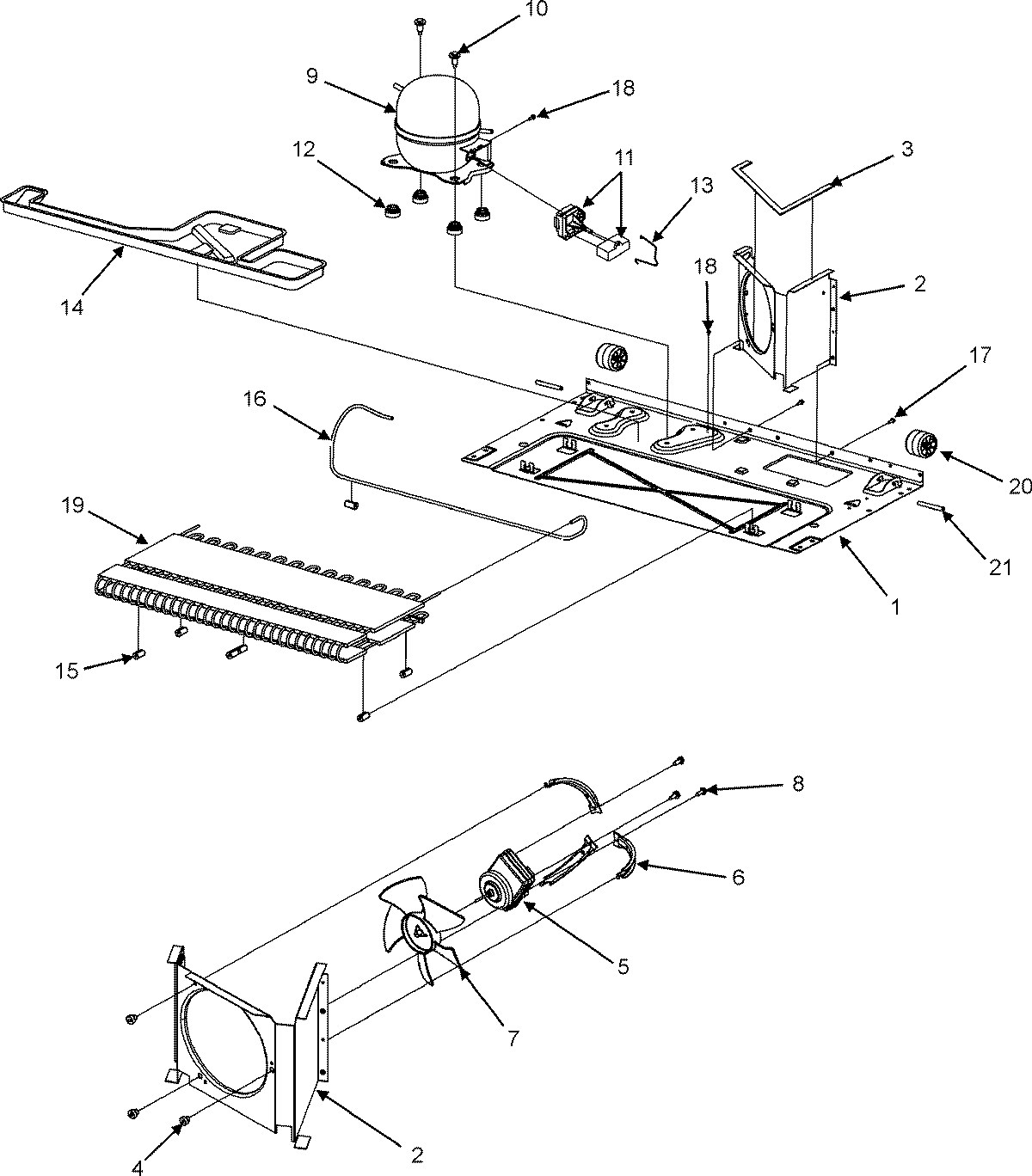

AFI2538AEB 02 – COMPRESSOR

Products

Position	Product
NI	HARNESS, MC
1	MAY 67005889
2	SHROUD, CONDENSER FAN
3	WP854334 Whirlpool Air Conditioner Sealing Strip
4	GROMMET, BRACKET
5	MAY 67004432
6	MAY 67004953
7	W10156818 Whirlpool Refrigerator Fan Blade
8	WP67004954 Whirlpool Refrigerator Screw
9	W10160407 Whirlpool Refrigerator Compressor
10	MAY 67006432
11	W10613606 Whirlpool Refrigerator Start Device Relay Overload
12	67003493 Whirlpool Refrigerator Compressor Grommet
13	MAY 12576801
14	WP12579803 Whirlpool Refrigerator Drain Pan
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	MAY 67004700
17	Screw (10)
18	MAY 67006433
19	WP67006131 Whirlpool Refrigerator Condenser
20	WP67005149 Whirlpool Roller
21	67006434 Whirlpool Axle Pin
