AFI2538AEB 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

AFI2538AEB 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Written by

in

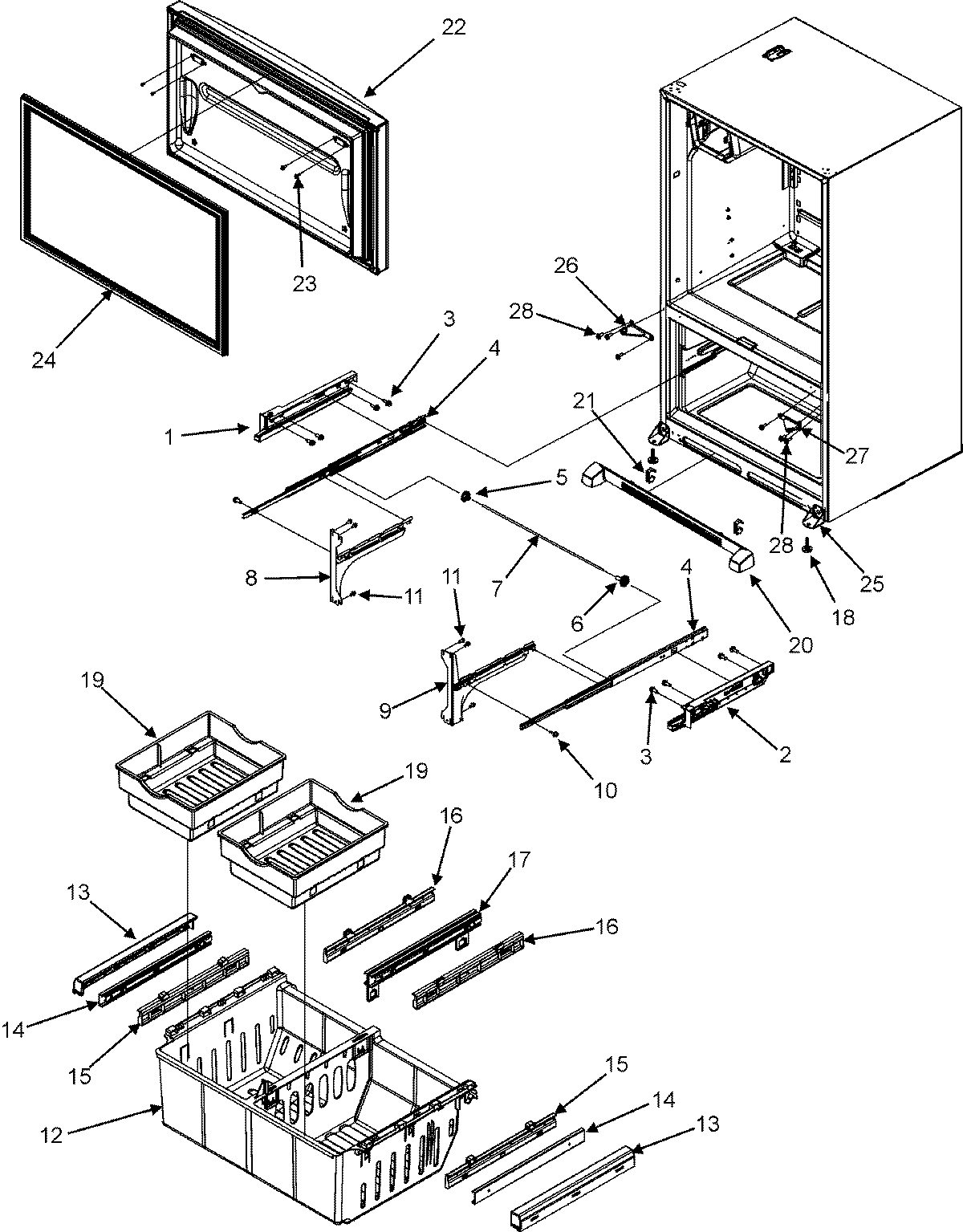

AFI2538AEB 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Products

PositionProduct
1ADAPTER (LT)
2ADAPTER (RT)
3Screw (6)
4WP67006365 Whirlpool Refrigerator Drawer Slide
5GEAR (RT)
6GEAR (LT)
7W11028221 Whirlpool Refrigerator Shaft
8BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10SCREW
11Screw (8)
12MAY 67006366
13MAY 67006367
13MAY 67006368
14MAY 67006369
15MAY 67006370
16MAY 67006371
17WPW10235357 Whirlpool Refrigerator Glide Assembly
18W11177593 Whirlpool Leveling Feet
19WP12924903 Whirlpool Refrigerator Freezer Bin
20WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
21Clip, Grille
22MAY 67007079
2312991101 Whirlpool Refrigerator Screw
24WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
25MAY 67006491
2512906303WD Whirlpool Refrigerator Bracket
2667006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
27W10918168 Whirlpool Refrigerator Door Hinge
28WP67006380 Whirlpool Screw
