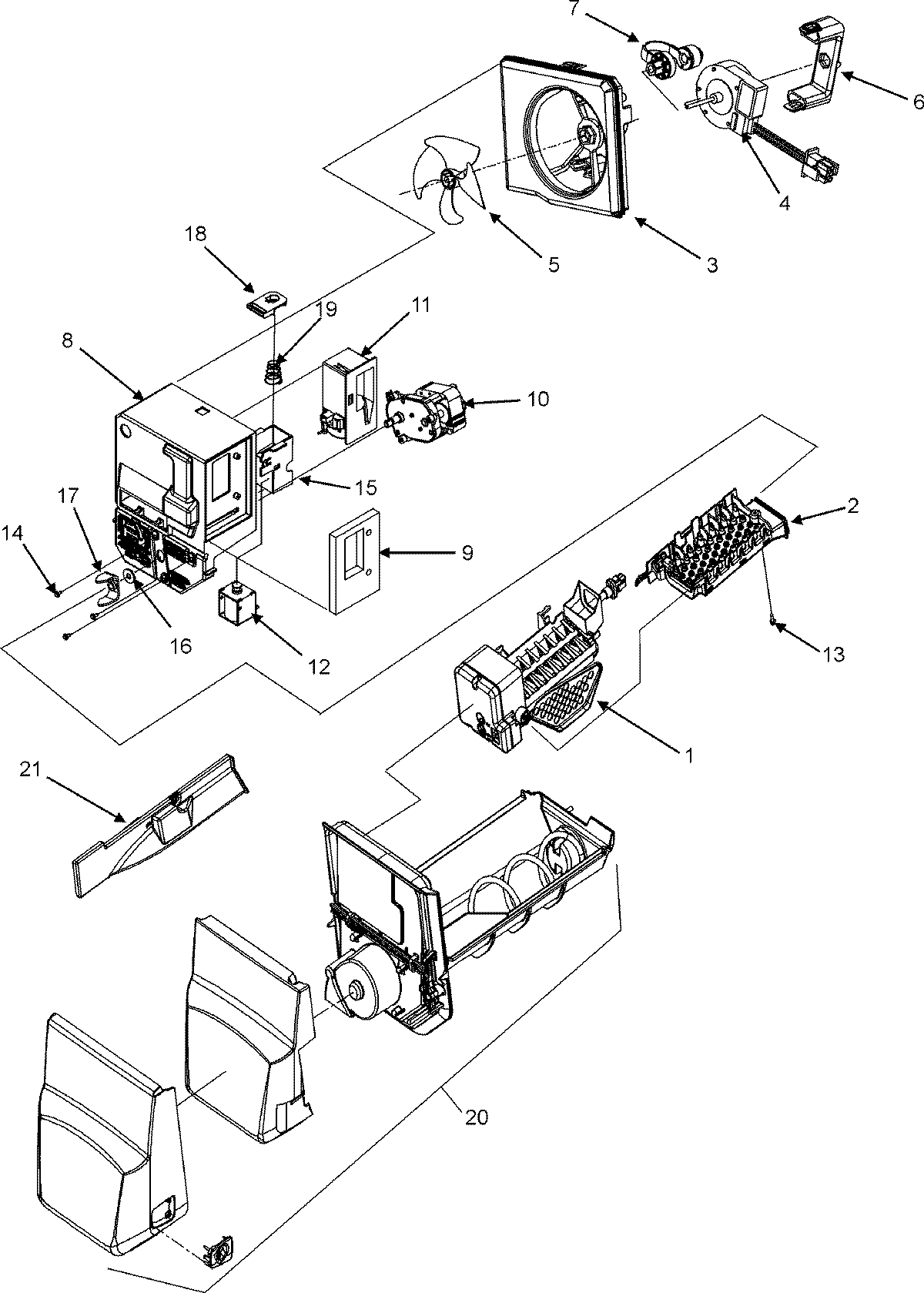

AFI2538AEB 07 – ICE MAKER/ICE BIN/AUGER MOTOR

Products

Position	Product
NI	MAY 67006438
1	W10583817 Whirlpool Ice Maker Assembly
2	MAY 67006334
3	MAY 67006335
4	WP67006968 Whirlpool Refrigerator Fan Motor
5	WP67006337 Whirlpool Refrigerator Fan Blade
6	W11712696 Whirlpool Clip
7	W11676465 Whirlpool Grommet
8	MAY 67006340
9	MAY 67006341
10	67006342 Whirlpool Refrigerator Auger Motor
11	WPW10127427 Whirlpool Refrigerator Control
12	67006344 Whirlpool Refrigerator Solenoid
13	MAY 67007110
14	Screw (10)
15	MAY 67006345
16	MAY 67006346
17	MAY 63052-1
18	MAY 67006347
19	MAY 67006348
20	WPW10324090 Whirlpool Refrigerator Ice Bin
21	SCREW, SM
