AFI2538AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

AFI2538AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

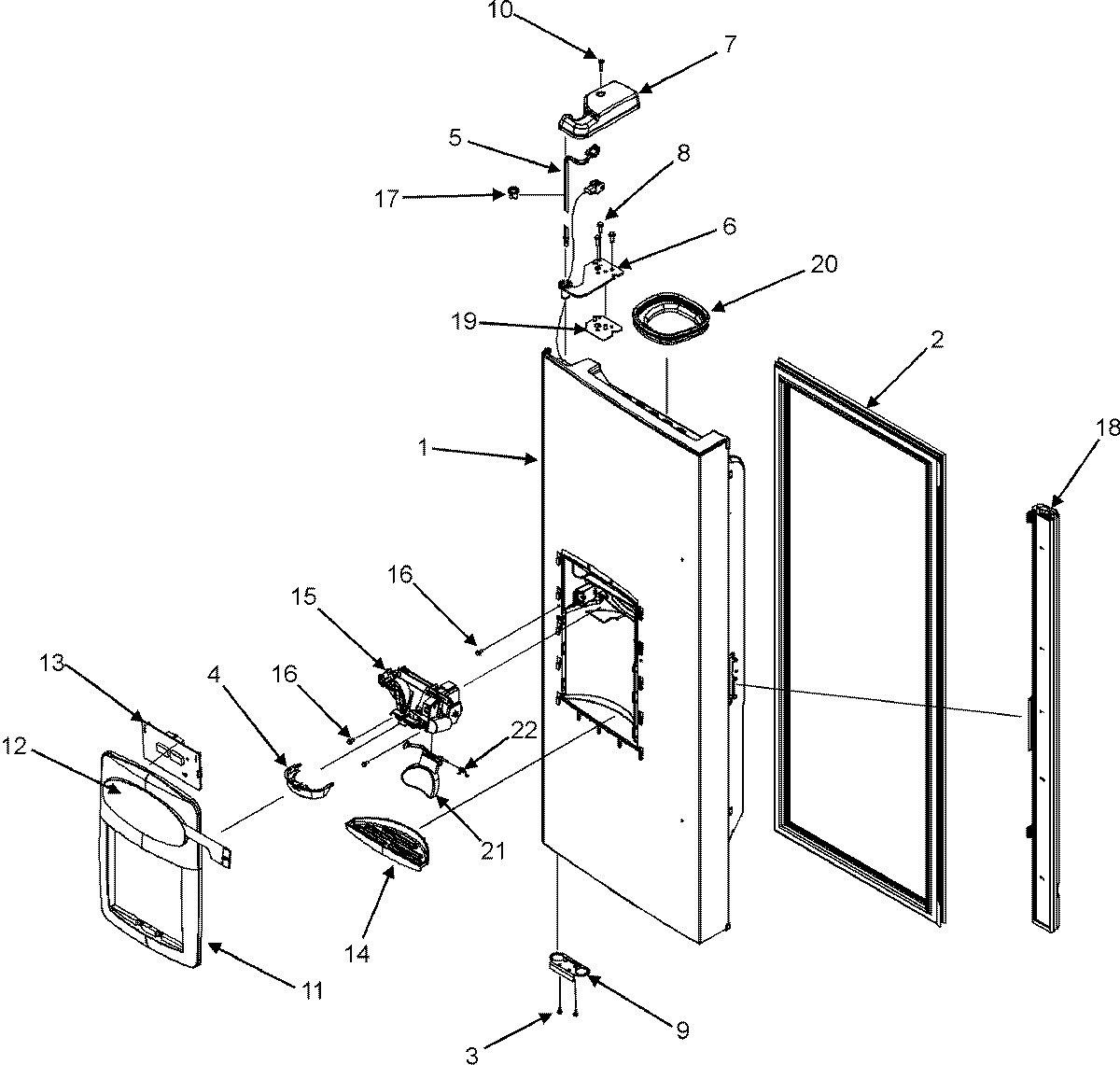

AFI2538AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67007078
2W11378944 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7W10337647 Whirlpool Refrigerator Cover
9W11708403 Whirlpool Door Stop
10WP8281196 Whirlpool Screw
11Screw (8)
11MAY 67006395
12MAY 67006955
1367006294 Whirlpool Control Board + Core
14WP12999301B Whirlpool Drip Tray Grille
15MAY Y67006296
16WP489349 Whirlpool Refrigerator Screw
1712996601 Whirlpool Refrigerator Bushing Clip
18MAY 67006401
18SCREW-TF/HEX ROHS
1912999501 Whirlpool Refrigerator Hinge Shim
20MAY 12665101
