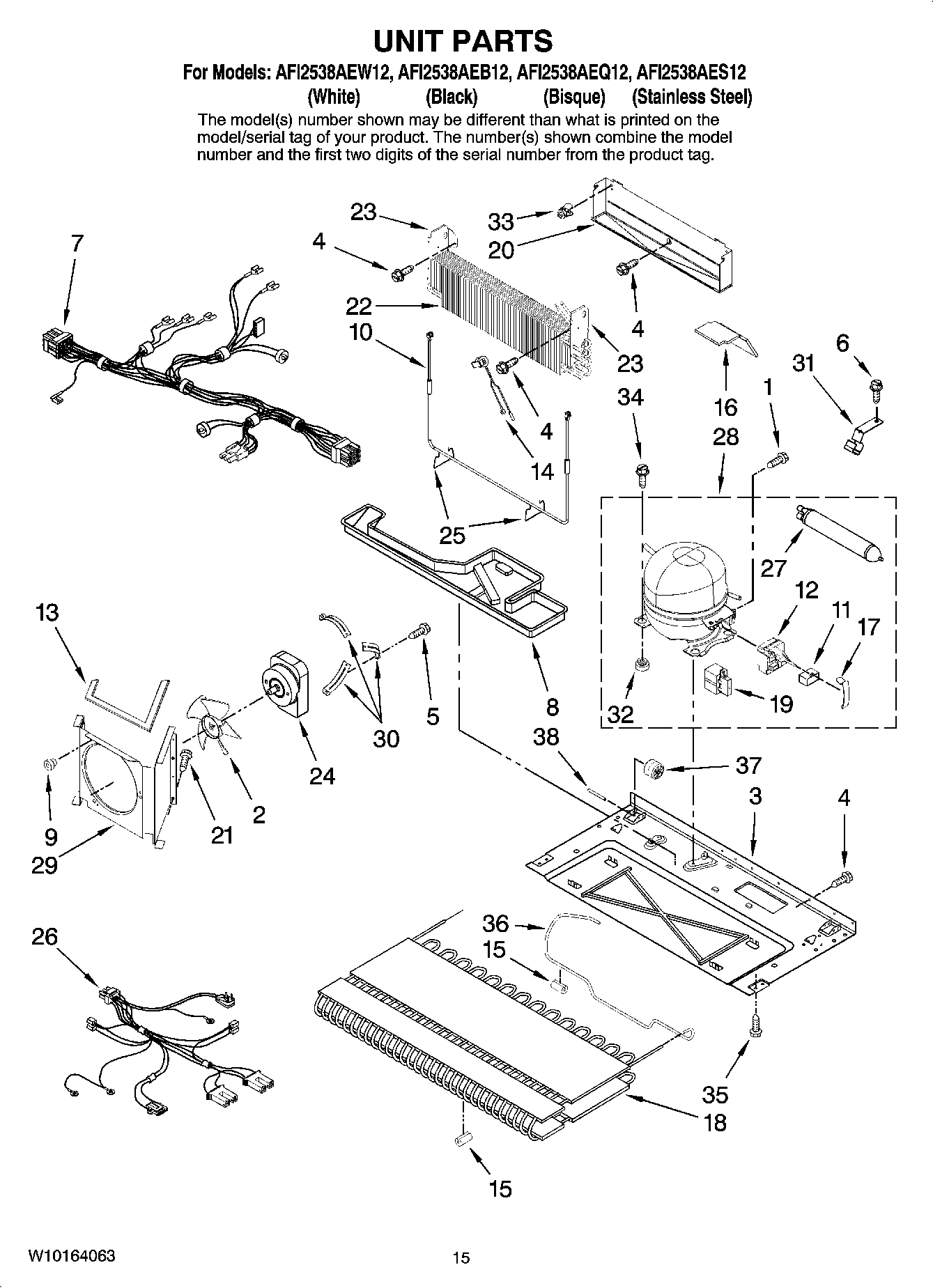

AFI2538AEB12 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

AFI2538AEB12 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

AFI2538AEB12 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	SEALER, GUM (4 FEET)
NI	MAY 479502
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	MAY 542639
NI	MAY 606755
NI	MAY 833938
NI	MAY 876029
NI	MAY 876305
NI	MAY 876370
NI	MAY 978941
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	Valve, Access (5/8“)
NI	CLEANER, STAINLESS STEEL
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	GEARCASE
NI	WPW10324090 Whirlpool Refrigerator Ice Bin
NI	Valve, Access (1/2“)
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	MAY 1117510
NI	PAINT, SPRAY (WHITE PRIMER)
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	MAY W10162932
11	Capacitor (Service)
11	Capacitor
12	Overload (Service)
12	OVERLOAD/RELAY W/CAPACITOR
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	Start Relay (Service Only)
20	MAY 67002490
21	MAY 67007110
22	MAY W10162998
23	MAY W10162951
23	MAY W10162962
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	DRIER
27	MAY 4387019
28	Compressor (Includes Items 11, 12, 17, 19, 27 & 35)
29	MAY W10162963
30	MAY 67004953
31	MAY 10547003
32	MAY 4387558
32	67003493 Whirlpool Refrigerator Compressor Grommet
33	MAY 10623002
34	MAY 67006432
35	Screw (4)
36	MAY 67004700
37	WP67005149 Whirlpool Roller
38	67006434 Whirlpool Axle Pin
