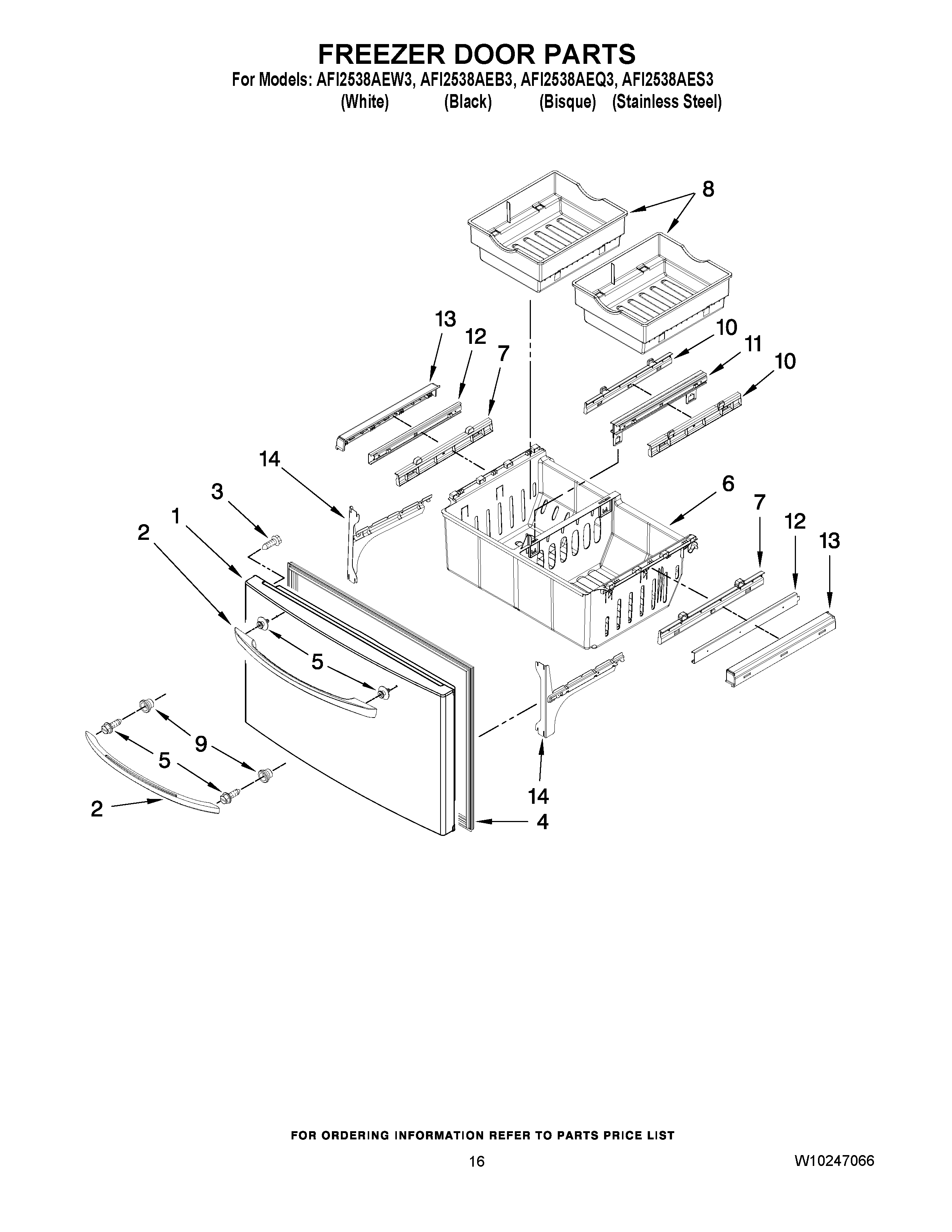

AFI2538AEB3 09 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10164158
1	MAY W10164157
1	MAY W10164156
1	Freezer Door (Stainless)
2	MAY W10138765
2	MAY W10119669
2	MAY W10119671
2	MAY W10119670
3	12991101 Whirlpool Refrigerator Screw
4	MAY W10162897
4	MAY W10162895
5	WP3387230 Whirlpool Screw
5	WP12992902 Whirlpool Refrigerator Screw
6	MAY 67006366
7	MAY 67006370
8	MAY W10166237
9	WP67006113 Whirlpool Stud Bolt
10	MAY W10163002
11	WPW10235357 Whirlpool Refrigerator Glide Assembly
12	MAY 67006369
13	MAY 67006367
13	MAY 67006368
14	BRACKET, DOOR (LEFT)
14	BRACKET, DOOR (RIGHT)
