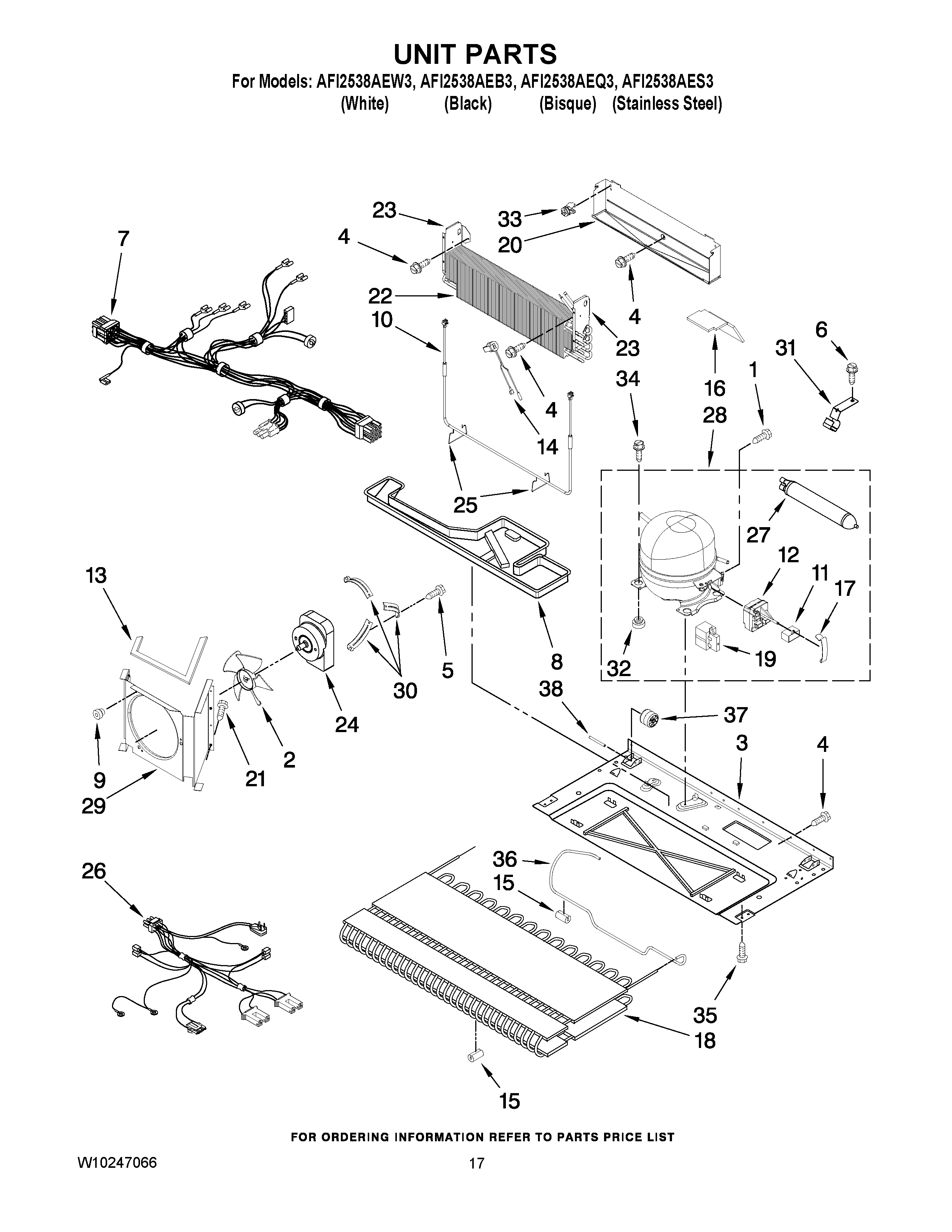

AFI2538AEB3 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY 67006433
2	MAY W10162928
3	MAY 12457108
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	Drain Pan
9	GROMMET, BRACKET
10	MAY W10162932
11	Capacitor (Service)
11	Capacitor
12	OVERLOAD/RELAY W/CAPACITOR
12	Overload (Service)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	Start Relay (Service Only)
20	MAY 12225403WD
21	MAY 67007110
22	MAY W10162998
23	Dam (Right Side)
23	Dam (Left Side)
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	COMPRESSOR-TPG1370YXA(BM)
29	MAY W10162963
30	MAY 67004953
31	MAY 10547003
32	MAY 4387558
32	67003493 Whirlpool Refrigerator Compressor Grommet
33	MAY 10623002
34	MAY 67006432
35	Screw (4)
36	MAY 12866903
37	WP67005149 Whirlpool Roller
38	67006434 Whirlpool Axle Pin
