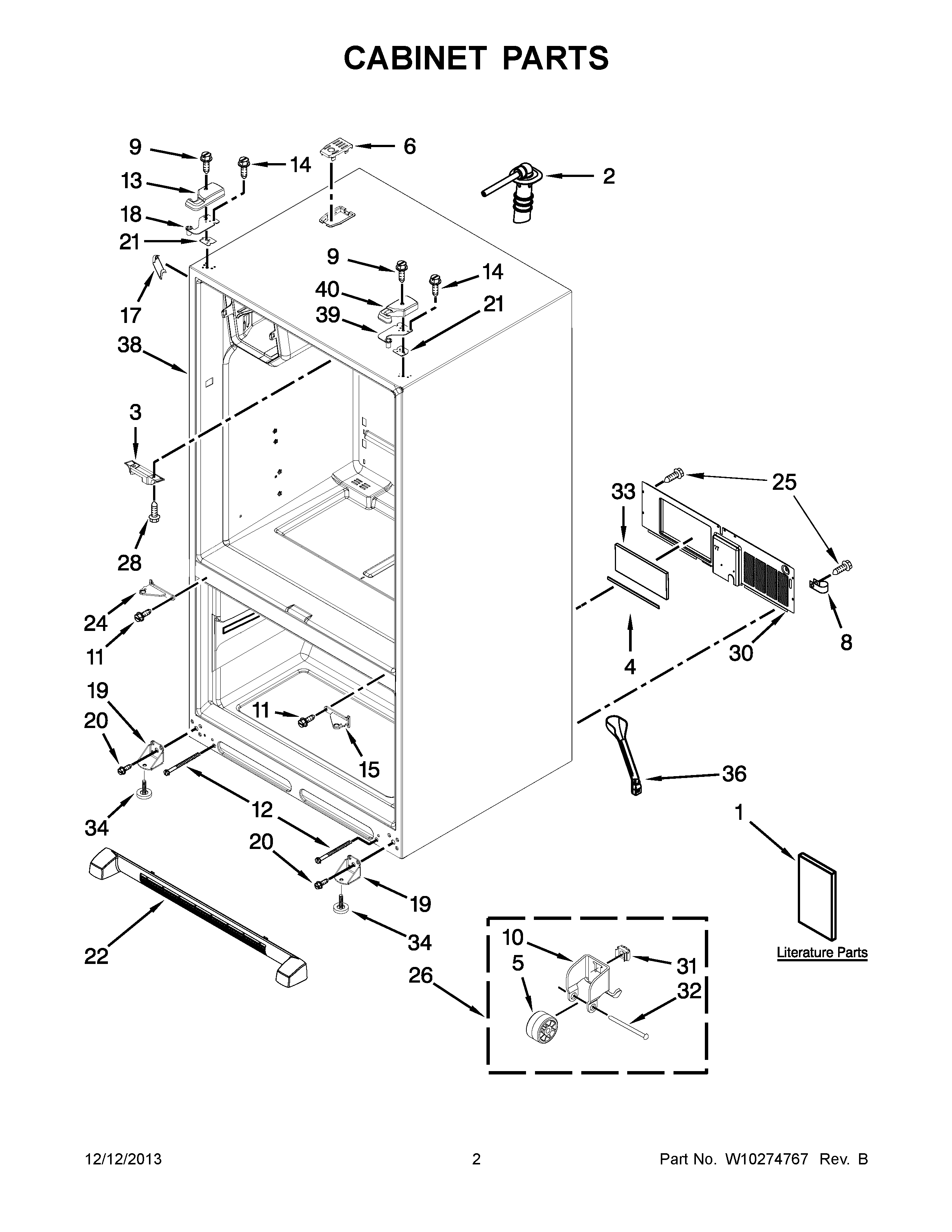

AFI2538AEB4 02 – CABINET PARTS

Products

Position	Product
1	MAY W10175442
1	MAY W10215638
1	MAY W10141352
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	ROLLER (2)
6	MAY 12981401B
6	MAY 12981401W
8	W10833902 Whirlpool Refrigerator Clamp
9	MAY 12992602
10	BRACKET, FOOT
11	SCREW (6)
12	Bolt, Adjusting (Rear)
13	MAY 12962301B
13	COVER, LEFT HINGE (BISQUE)
13	MAY 12962301W
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
15	Hinge, Center (RT) (White)
17	COVER, CORNER (BLACK)
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
18	MAY 12963204ED
19	Bracket, Foot
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY 12880103Q
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW (10)
26	ROLLER ASSY.(REAR)
28	Screw (4)
30	MAY W10211858
31	MAY M0286708
32	MAY M1205302
33	Insulation, Sound
34	Foot Brake (2)
36	MAY W10210988
38	LINER (NOT A SERVICEABLE PART)
39	MAY 12963205ED
40	COVER, RIGHT HINGE (BISQUE)
40	MAY 12962302B
40	MAY 12962302W
