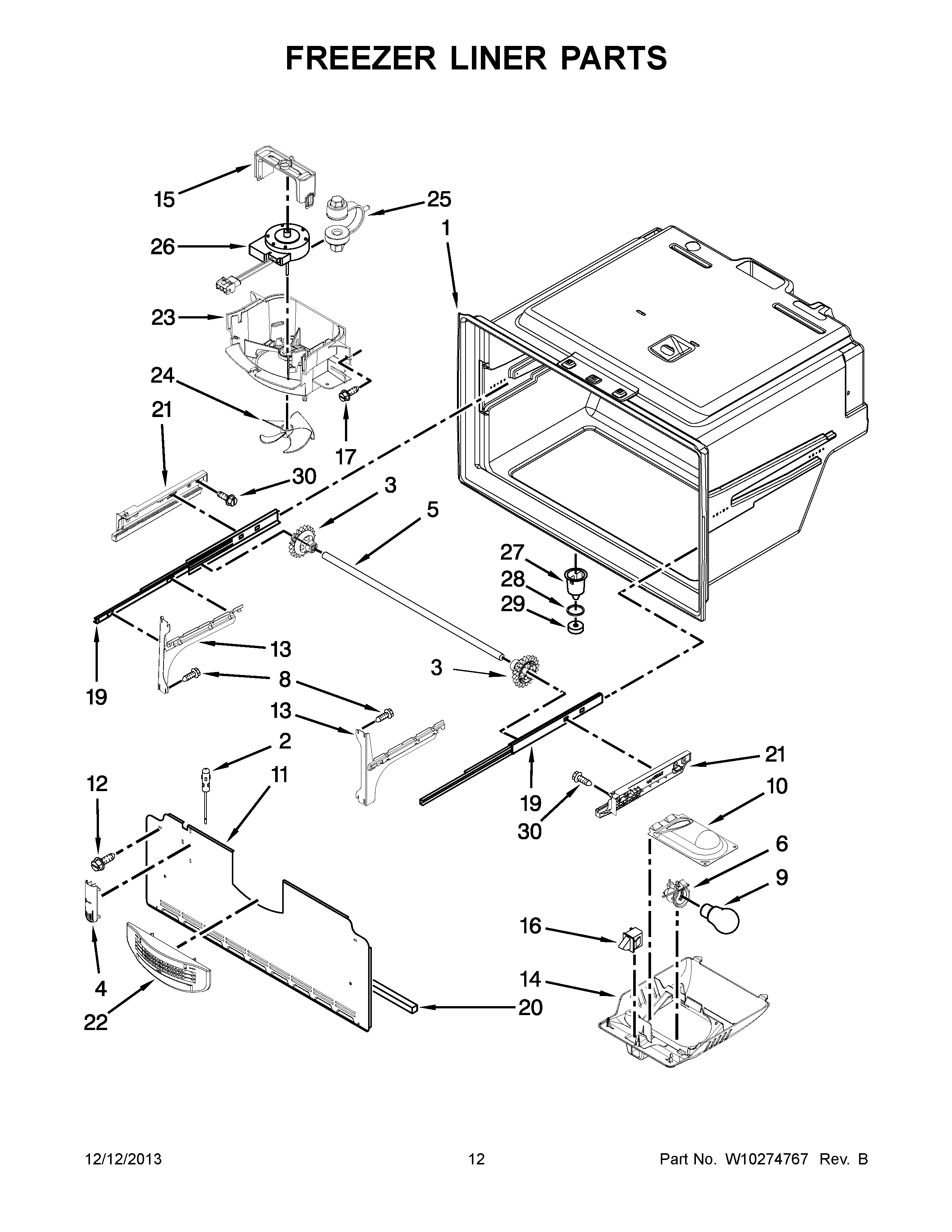

AFI2538AEB4 07 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	12002355 Whirlpool Refrigerator Thermistor Kit
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12815301
5	SHAFT
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	MAY W10194422
10	MAY 12476401SP
11	MAY 12935801
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MAY 13027902SP
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10159939
21	MAY W10159938
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	Screw (6)
