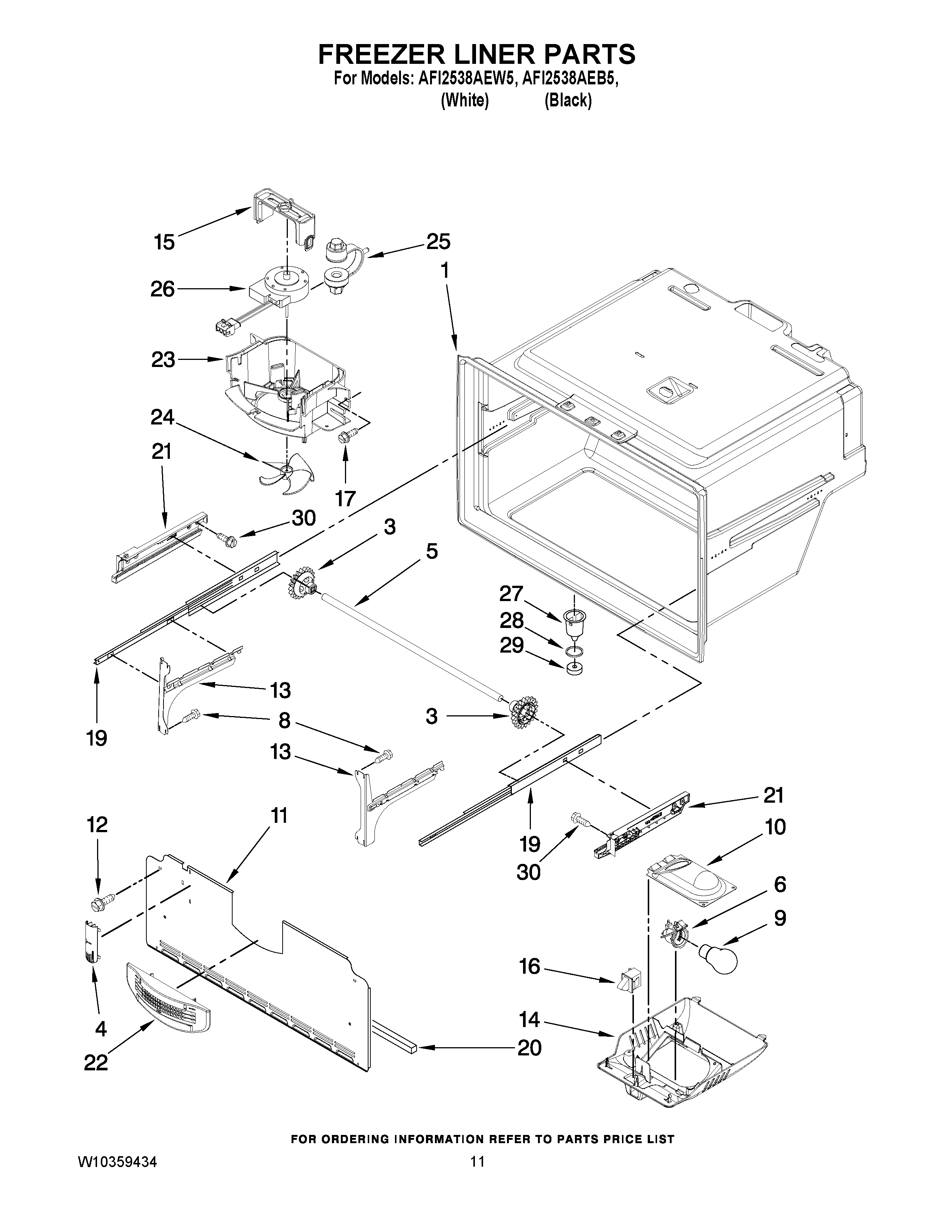

AFI2538AEB5 06 – FREEZER LINER PARTS

AFI2538AEB5 06 – FREEZER LINER PARTS

Written by

in

AFI2538AEB5 06 – FREEZER LINER PARTS

Products

PositionProduct
NIHARNESS, FZ LIGHT (INCLUDES THERMISTOR)
1LINER (NOT A SERVICEABLE PART)
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12815301
5SHAFT
6MAY 12570701SP
8Screw (8)
9BULB, LIGHT (2)
10MAY 12476401SP
11COVER, EVAP
12SCREW (10)
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MAY 13027902SP
15MAY 12956601
16MAY 12466111SP
17MAY 12990504
19MAY W10120018
20Gasket, Bottom
21MAY W10284682
21MAY W10284683
22MAY 12959901
23Shroud, Evap Fan
24Blade, Fan (Evaporator)
25Grommet, Fan Motor (2)
26MAY W10162809
27MAY D7753903
28MAY M0500703
29Gasket
30Screw (6)
