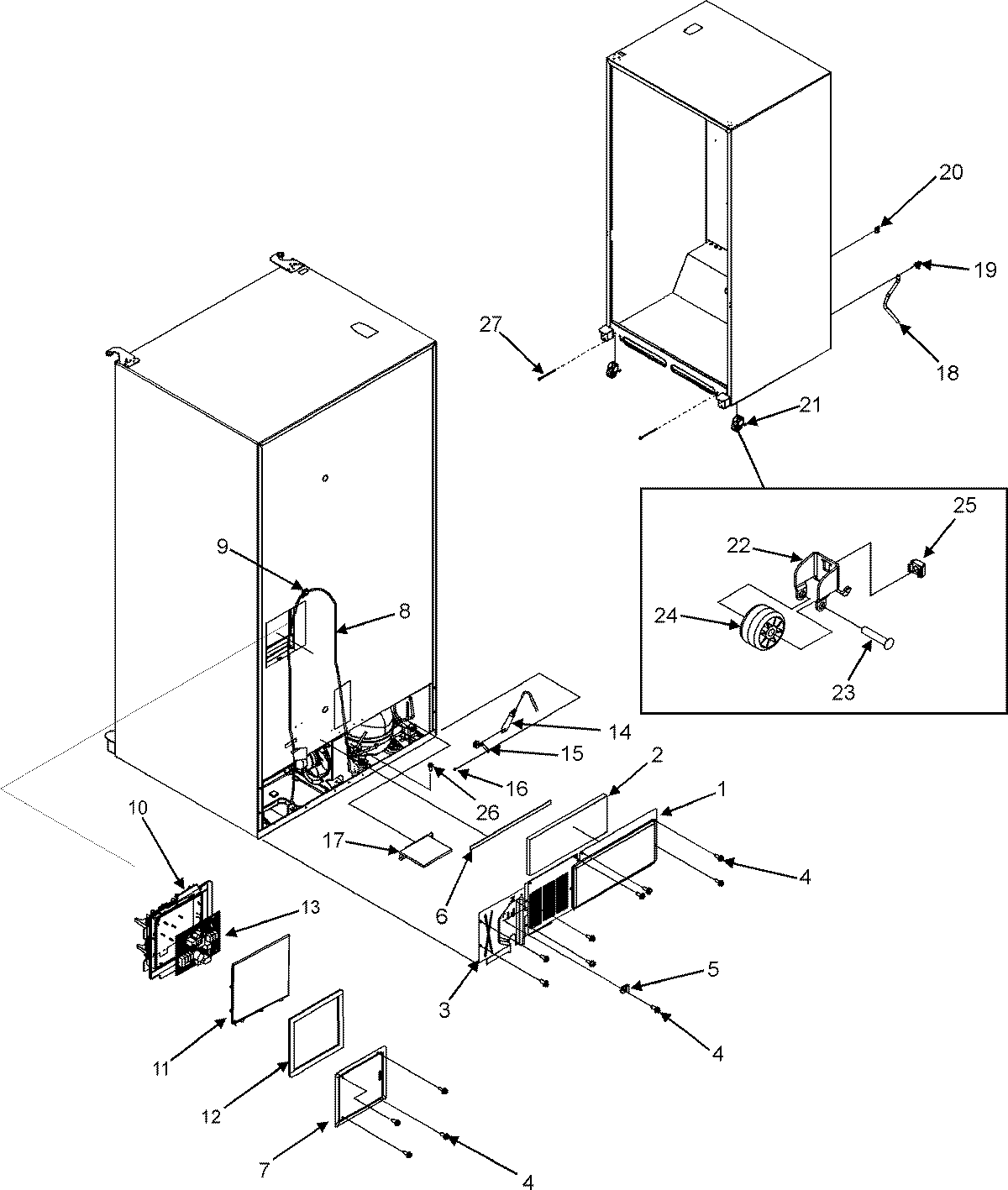

AFI2538AEQ 01 – CABINET BACK/FRONT ROLLERS

Products

Position	Product
1	BACK, MACH COMP
2	67003796 Whirlpool Refrigerator Fiber Acoustic
3	MAY 67005117
4	Screw (10)
5	W10833902 Whirlpool Refrigerator Clamp
6	Gasket
7	MAY 67006427
8	MAY 67007121
9	MAY M0104102
10	WP67006390 Whirlpool Refrigerator High Voltage Box
11	67006428 Whirlpool Refrigerator LID, HV Control
12	MAY 67006429
13	W10890094 Whirlpool Control Board + Core
14	DRIER
15	MAY 10547002
16	SCREW
17	MAY 67006431
18	MAY 67001066
19	67001067 Whirlpool Refrigerator Drain Tube Clip
20	WPM0104106 Whirlpool Refrigerator Clip
21	ROLLER BRACKET ASSY
22	12456801V Whirlpool Refrigerator Bracket
23	MAY M1205302
24	WP10450603 Whirlpool Refrigerator Roller
25	MAY M0286708
26	MAY 67007110
27	71003131 Whirlpool Oven Screw
