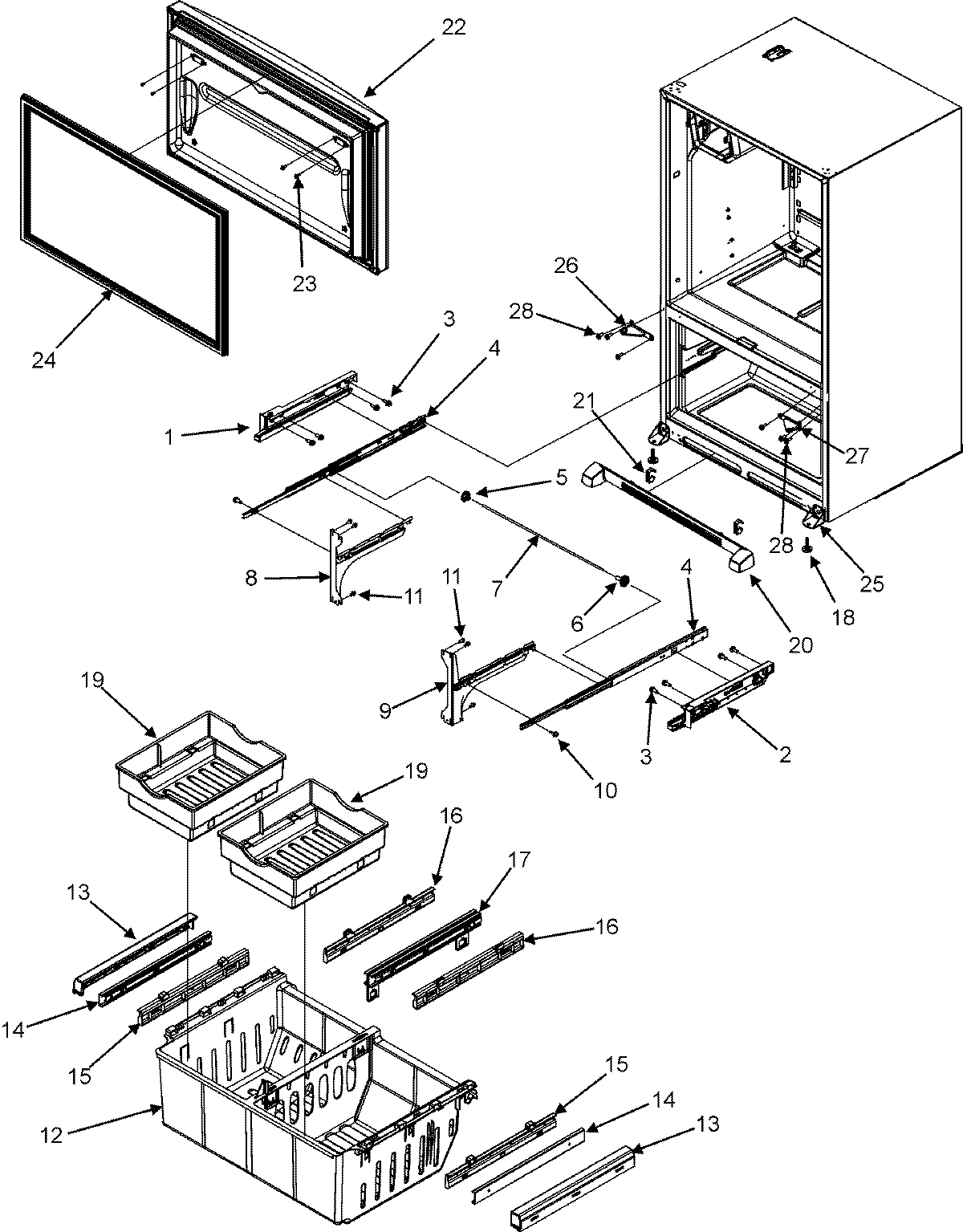

AFI2538AEQ 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Products

PositionProduct
1ADAPTER (LT)
2ADAPTER (RT)
3Screw (6)
4WP67006365 Whirlpool Refrigerator Drawer Slide
5GEAR (RT)
6GEAR (LT)
7W11028221 Whirlpool Refrigerator Shaft
8BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10SCREW
11Screw (8)
12MAY 67006366
13MAY 67006368
13MAY 67006367
14MAY 67006369
15MAY 67006370
16MAY 67006371
17WPW10235357 Whirlpool Refrigerator Glide Assembly
18W11177593 Whirlpool Leveling Feet
19WP12924903 Whirlpool Refrigerator Freezer Bin
20Grille Assembly (Includes Clips) (Bisque)
21Clip, Grille
2212977801QQ Whirlpool Refrigerator DOR-FIP BQ
2312991101 Whirlpool Refrigerator Screw
24WPW10443321 Whirlpool Door Gasket
25MAY 67006491
2512906303WD Whirlpool Refrigerator Bracket
26W10918113 Whirlpool Refrigerator Door Hinge
27MAY 67006379
28WP67006380 Whirlpool Screw
