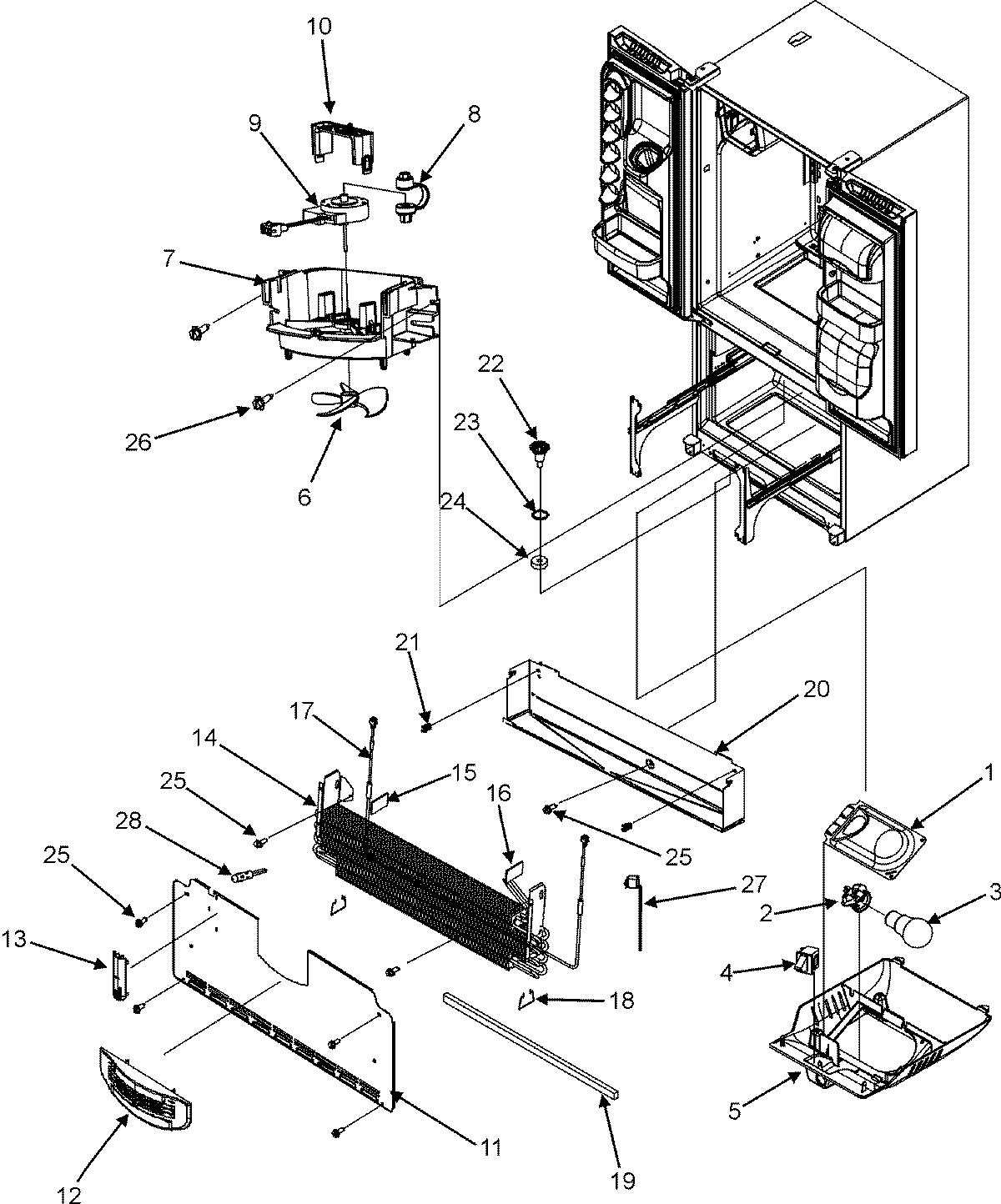

AFI2538AEQ 05 – FRZ LIGHT/EVAPORATOR/EVAP FAN ASSY.

AFI2538AEQ 05 – FRZ LIGHT/EVAPORATOR/EVAP FAN ASSY.

Written by

in

AFI2538AEQ 05 – FRZ LIGHT/EVAPORATOR/EVAP FAN ASSY.

Products

PositionProduct
NIHARNESS, EVAP/HEATER
1MAY 67001035
2Socket, Light (2)
3RANGE ONLY 40W 120V APPL BULB
4W11445850 Whirlpool Door Switch
5MAY 67006423
6WP67006337 Whirlpool Refrigerator Fan Blade
7MAY 67006424
8W11676465 Whirlpool Grommet
9WP67006968 Whirlpool Refrigerator Fan Motor
10W11712696 Whirlpool Clip
11MAY 67006383
12W11176847 Whirlpool Refrigerator Grille
13WP67003924 Whirlpool Refrigerator Cover
1412002730 Whirlpool Refrigerator Evaporator Kit
15DAM, LEFT RETURN
16DAM, RIGHT RETURN
17HEATER, DEFROST
18W11673433 Whirlpool Clip
19Gasket, Bottom
20MAY 67002490
21MAY 10623002
22MAY D7753903
23MAY M0500703
24Gasket
25Screw (10)
26WP98165 Whirlpool Screw
27MAY 67006387
2812002355 Whirlpool Refrigerator Thermistor Kit
