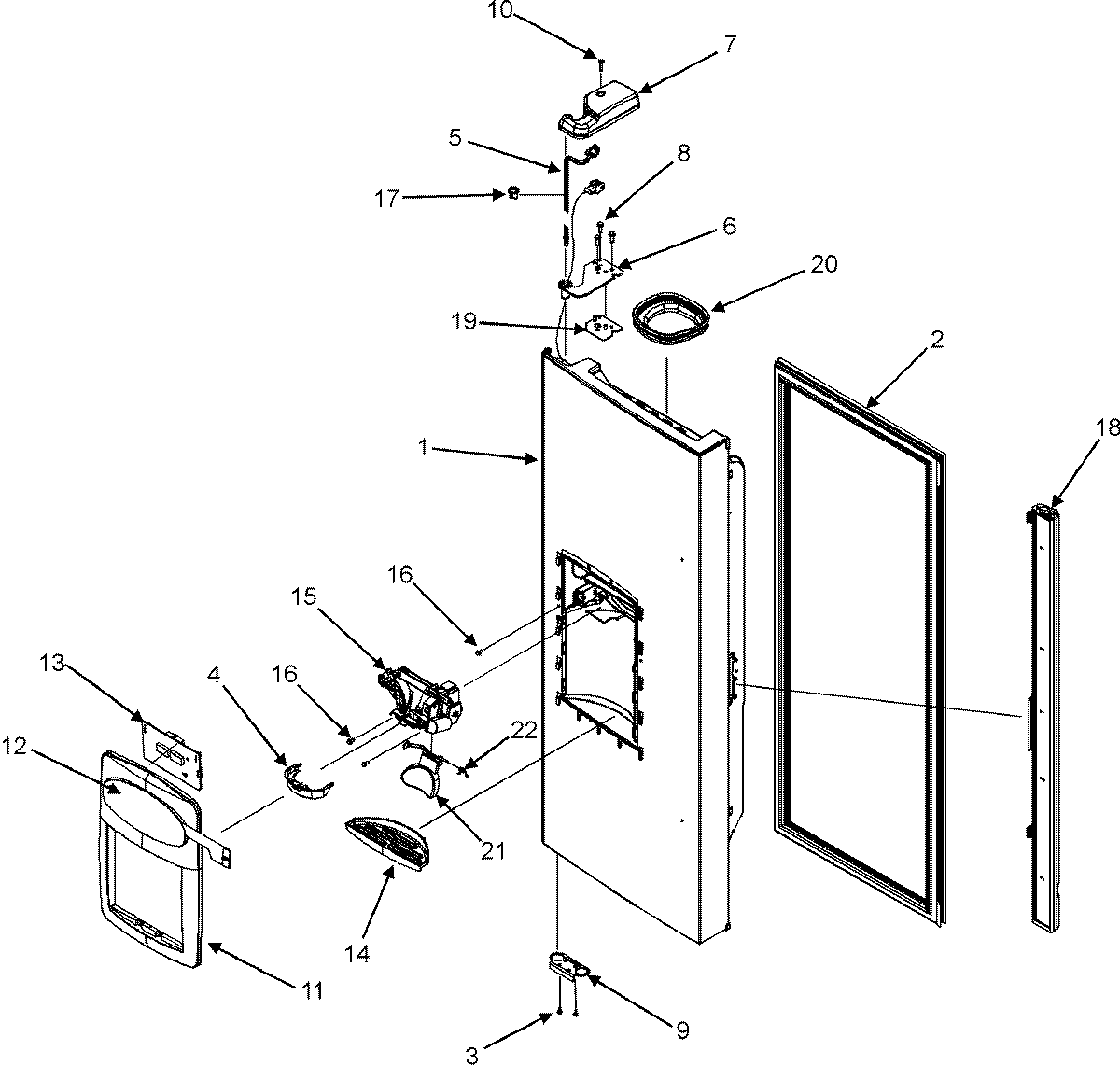

AFI2538AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

AFI2538AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

AFI2538AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67007101
2W11396037 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7Cover, Left Hinge (Bisque)
9STOP, DOOR (BSQ)
10WP8281196 Whirlpool Screw
11MAY 67006289
11Screw (8)
12MAY 67006956
1367006294 Whirlpool Control Board + Core
14MAY 67006440
15MAY 67006297
16WP489349 Whirlpool Refrigerator Screw
1712996601 Whirlpool Refrigerator Bushing Clip
18WP12722813W Whirlpool Refrigerator Mullion Rail
18SCREW-TF/HEX ROHS
1912999501 Whirlpool Refrigerator Hinge Shim
20MAY 12665101
