AFI2538AEQ 09 – PANTRY ASSEMBLY

AFI2538AEQ 09 – PANTRY ASSEMBLY

Written by

in

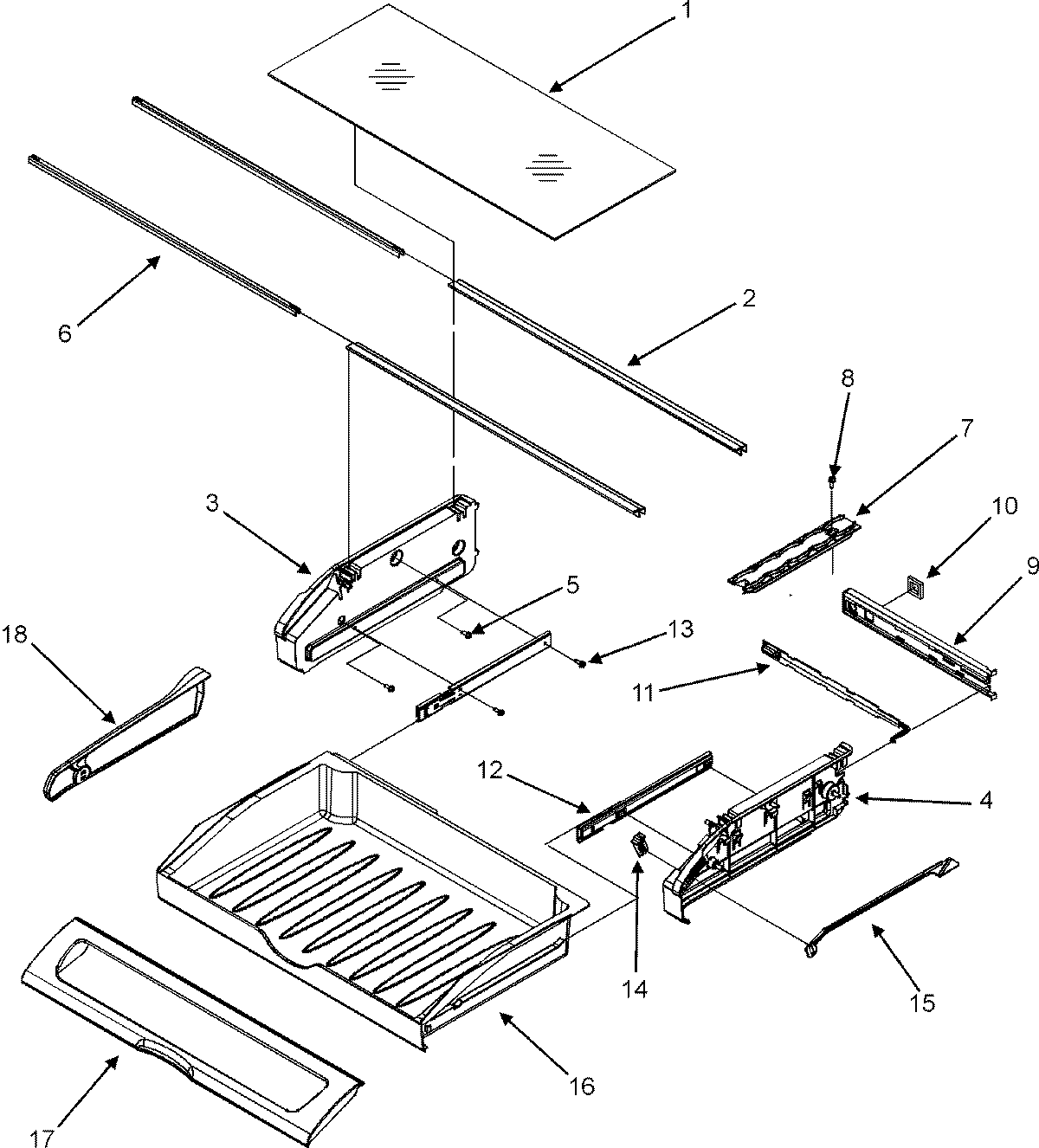

AFI2538AEQ 09 – PANTRY ASSEMBLY

Products

PositionProduct
1MAY 67002761
2WP67006010 Whirlpool Refrigerator Shelf Trim
4W10874836 Whirlpool Endcap Assembly Left Hand and Right
5Screw (2)
6WP12227305WD Whirlpool Drawer Support
7WP67001719 Whirlpool Refrigerator Track
8MAY 67006400
9MAY 67005625
1067002329 Whirlpool Refrigerator Pantry Gasket
11MAY 67003793
12WPW10235370 Whirlpool Refrigerator Glide
13WP98165 Whirlpool Screw
14W11498983 Whirlpool Refrigerator Knob
15WP67003795 Whirlpool Refrigerator Temperature Control Bar
16WP67003531 Whirlpool Drawer Assembly
17W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
18WP67002759 Whirlpool Refrigerator Divider
