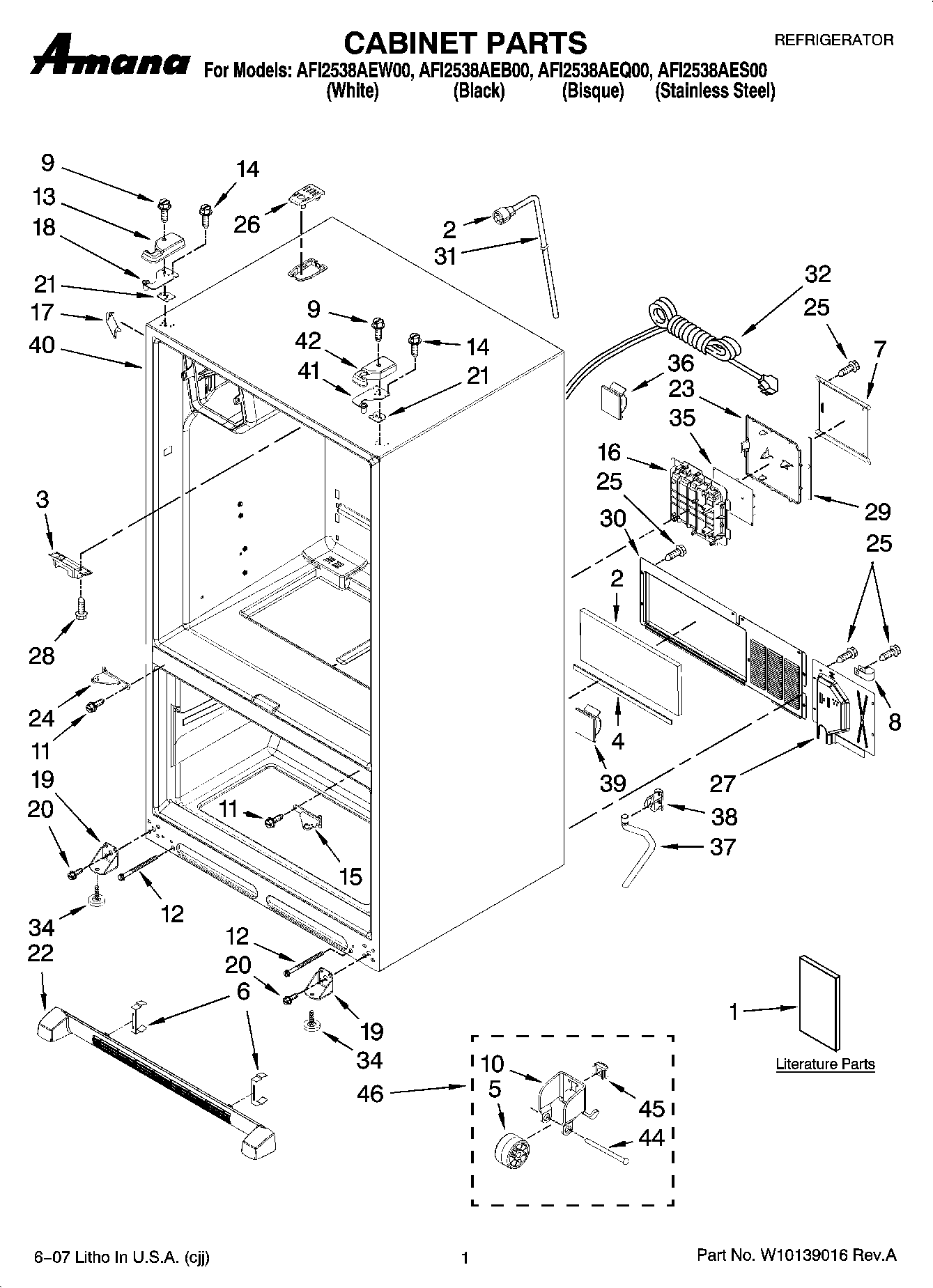

AFI2538AEQ00 01 – CABINET PARTS

Products

Position	Product
1	MANUAL, USE & CARE
1	TECH SHT, BTM MT
1	MAY 16026312
1	MAY 67006444
2	MAY 67006332
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	WP10450603 Whirlpool Refrigerator Roller
6	Clip, Grille
7	MAY 67006427
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	W10337647 Whirlpool Refrigerator Cover
13	Cover, Left Hinge (Bisque)
13	WPW10337634 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10918168 Whirlpool Refrigerator Door Hinge
15	MAY 67006379
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17	MAY 67003486
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	MAY 67005950
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006491
21	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	Grille Assembly (Includes Clips) (Bisque)
22	WPW10534154 Whirlpool Refrigerator Front Grille
23	67006428 Whirlpool Refrigerator LID, HV Control
24	W10918113 Whirlpool Refrigerator Door Hinge
24	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
25	Screw (10)
26	MAY 67006320
26	MAY 67006321
27	MAY 67005117
28	SCREW
29	MAY 67006429
30	BACK, MACH COMP
31	TUBE-WATER
32	MAY 67007121
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	W10890094 Whirlpool Control Board + Core
36	MAY M0104102
37	MAY 67001066
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	WPM0104106 Whirlpool Refrigerator Clip
40	CABLE STRAP-HARNESS TO BASE
41	W11592374 Whirlpool Refrigerator Top Door Hinge
42	Cover, Right Hinge (Bisque)
42	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
42	WP67005956 Whirlpool Refrigerator Cover
44	MAY M1205302
45	MAY M0286708
46	ROLLER BRACKET ASSY
