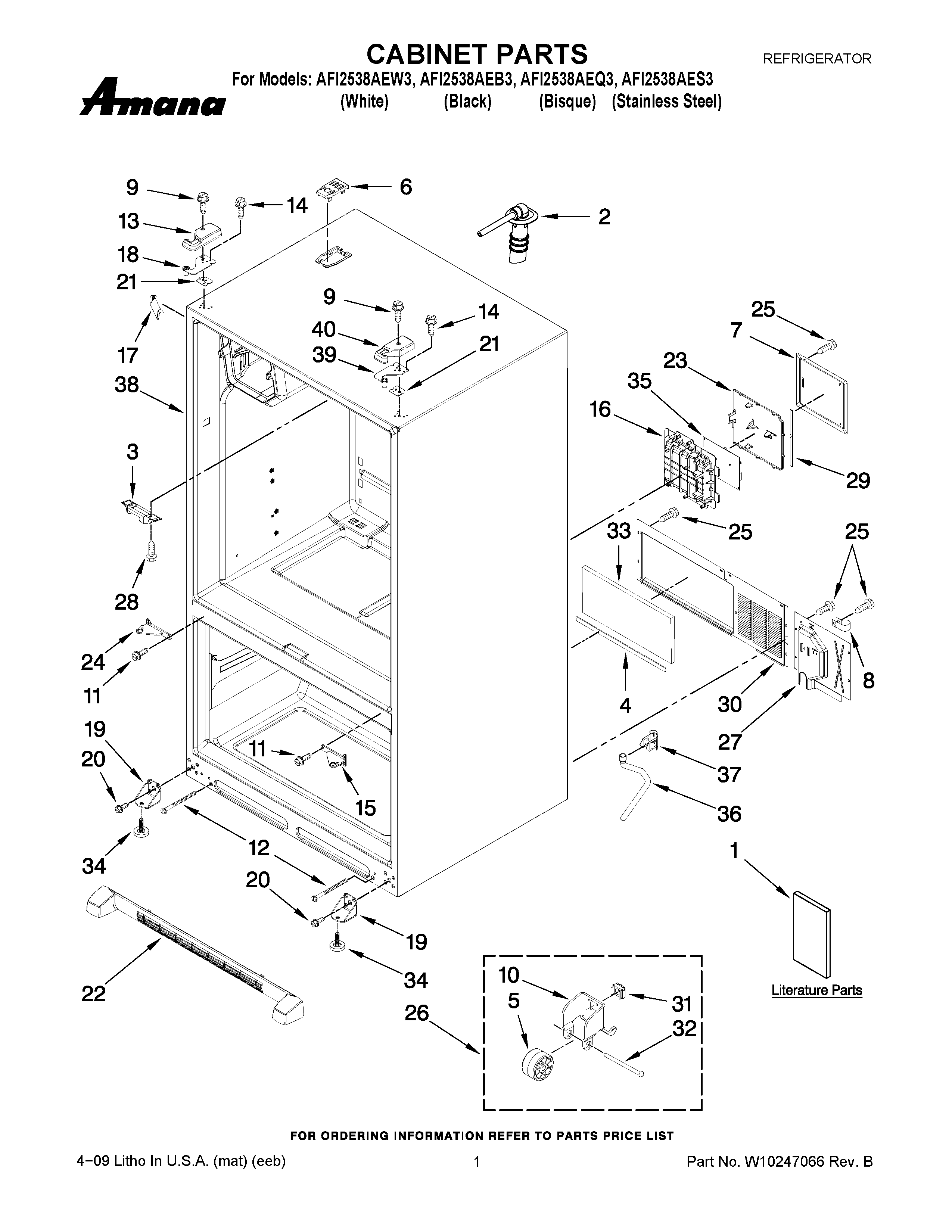

AFI2538AEQ3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10164066
1	MAY W10164065
1	MAY W10141352
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	MAY 10450603
6	MAY 12981401B
6	MAY 12981401W
7	MAY 67006427
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	W10337647 Whirlpool Refrigerator Cover
13	Cover, Left Hinge (Bisque)
13	WPW10337634 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	MAY 67006379
15	W10918168 Whirlpool Refrigerator Door Hinge
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	MAY 67005950
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	Grille Assembly (Includes Clips) (Bisque)
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	WPW10534154 Whirlpool Refrigerator Front Grille
23	MAY 12957701SP
24	Hinge, Center (LT) (White)
24	Hinge, Center (LT) (Black)
25	Screw (10)
26	Roller Assembly
27	MAY 67006426
28	SCREW
29	MAY 67006429
30	BACK, MACH COMP
31	MAY M0286708
32	MAY M1205302
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	MAY W10164422
36	MAY 67001066
37	67001067 Whirlpool Refrigerator Drain Tube Clip
39	W11592374 Whirlpool Refrigerator Top Door Hinge
40	WP67005956 Whirlpool Refrigerator Cover
40	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
40	Cover, Right Hinge (Bisque)
