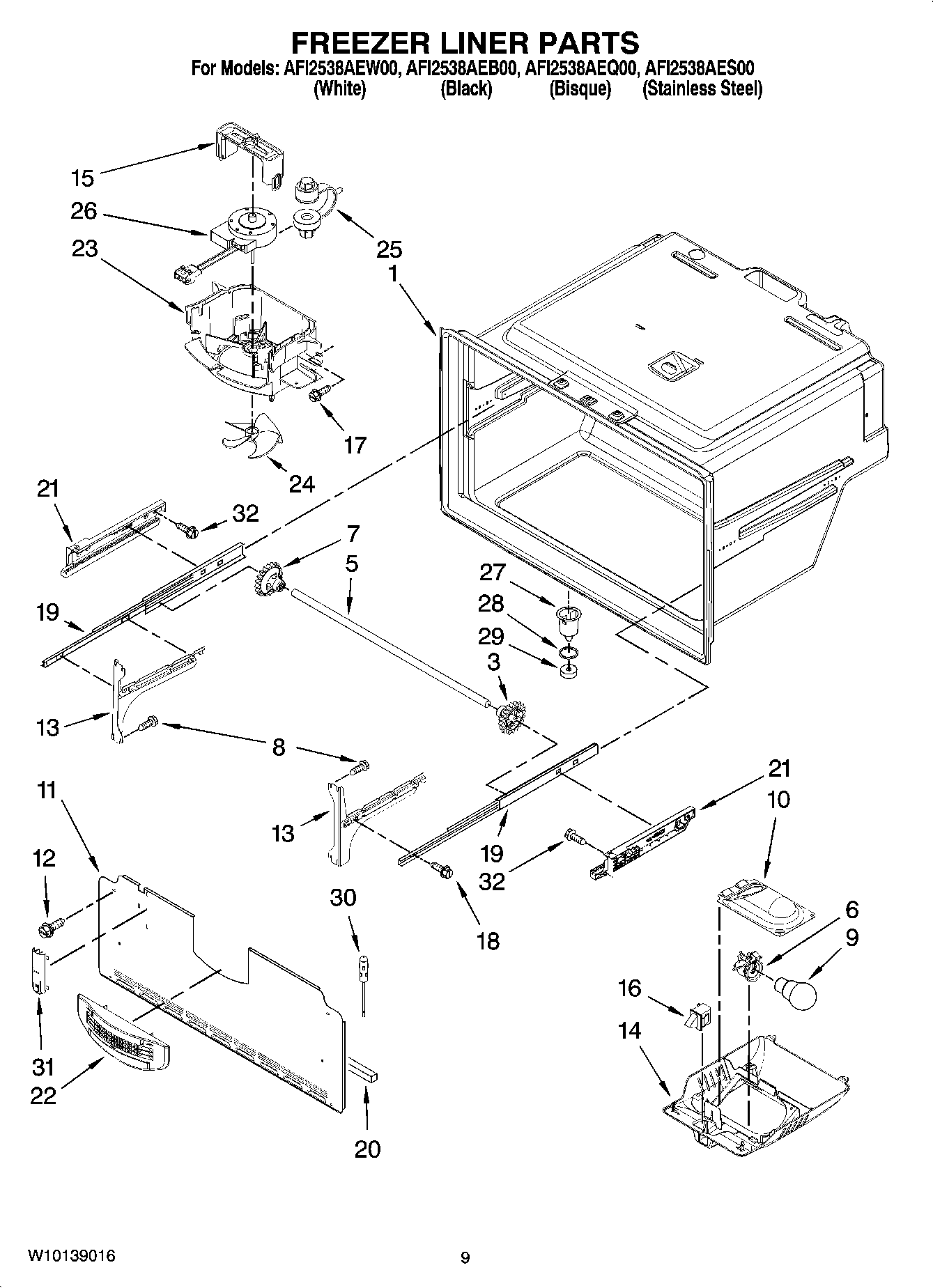

AFI2538AES00 05 – FREEZER LINER PARTS

Products

Position	Product
3	GEAR (LT)
5	W11028221 Whirlpool Refrigerator Shaft
6	Socket, Light (2)
7	GEAR (RT)
8	Screw (8)
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY 67006383
12	Screw (10)
13	BRACKET, DRAWER SLIDE (RT)
13	BRACKET, DRAWER SLIDE (LT)
14	MAY 67006423
15	W11712696 Whirlpool Clip
16	W11445850 Whirlpool Door Switch
17	WP98165 Whirlpool Screw
18	SCREW
19	WP67006365 Whirlpool Refrigerator Drawer Slide
20	Gasket, Bottom
21	ADAPTER (RT)
21	ADAPTER (LT)
22	W11176847 Whirlpool Refrigerator Grille
23	MAY 67006424
24	WP67006337 Whirlpool Refrigerator Fan Blade
25	W11676465 Whirlpool Grommet
26	WP67006968 Whirlpool Refrigerator Fan Motor
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	Screw (6)
