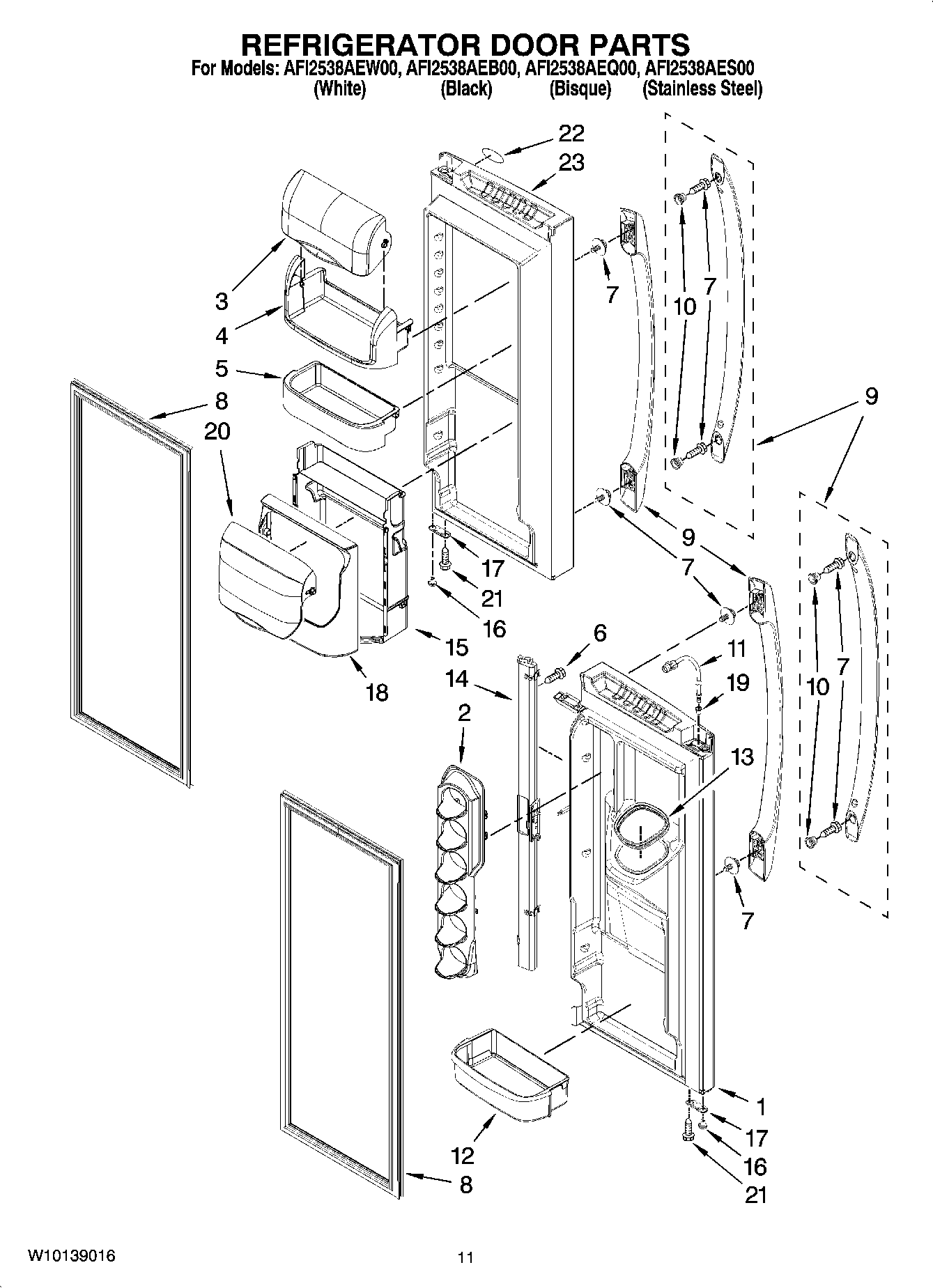

AFI2538AES00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 67007124
1	DOOR ASSY., LT I&W FOAM(STNLS)
1	MAY 67007078
1	MAY 67007101
2	MAY 67006311
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WP67006313 Whirlpool Refrigerator Chiller Bucket
6	SCREW-TF/HEX ROHS
7	WP12992902 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	HANDLE, DOOR (STNLS)
9	HANDLE RH REF WHT
9	WPW10119665 Whirlpool Refrigerator Handle
9	WPW10119668 Whirlpool Refrigerator Handle
9	HANDLE RH REF BSQ
9	HANDLE DR (WHT)x
9	HANDLE, FACE MOUNT (BSQ)x
10	WP67006113 Whirlpool Stud Bolt
11	12962106 Whirlpool Refrigerator Waterline Door
12	MAY 67006404
13	MAY 12665101
14	WP12722813W Whirlpool Refrigerator Mullion Rail
14	MAY 67006401
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	STOP, DOOR (BSQ)
17	STOP, DOOR (WHT)
18	W11266639 Whirlpool Refrigerator Chiller
19	12996601 Whirlpool Refrigerator Bushing Clip
20	DOOR-CHILL
21	WP98165 Whirlpool Screw
22	STAINLESS
23	DOOR ASSY., RT REF FOAM(STNLS)
23	MAY 67007077
23	MAY 67007100
23	MAY 67007125
