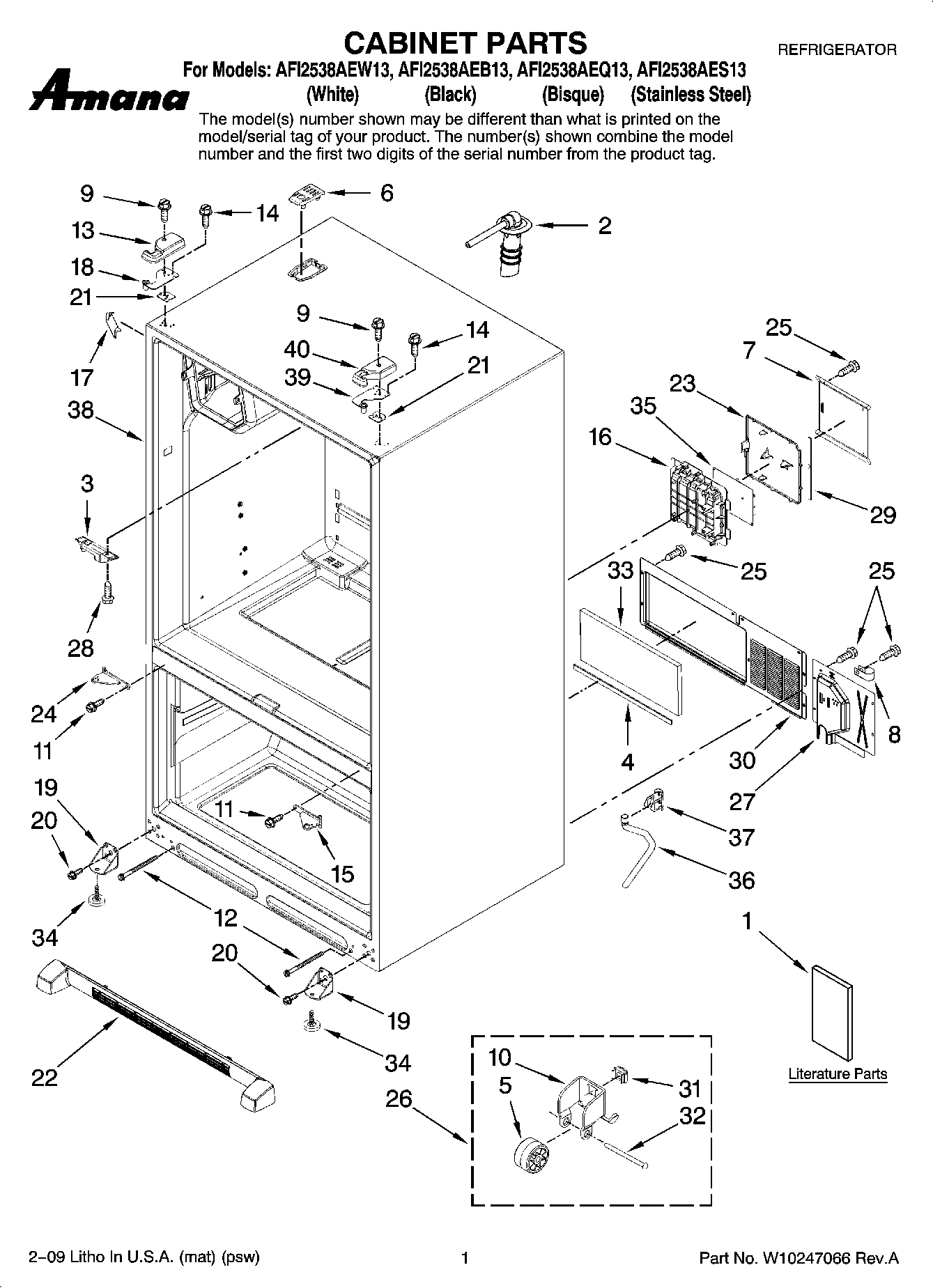

AFI2538AES13 01 – CABINET PARTS

Products

PositionProduct
1MAY W10164066
1MAY W10164065
1MAY W10141352
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
5MAY 10450603
6MAY 12981401B
6MAY 12981401W
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13W10337647 Whirlpool Refrigerator Cover
13Cover, Left Hinge (Bisque)
13WPW10337634 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
17Cover, Corner (Bisque)
17Cover, Corner (2) (White)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 67005950
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22Grille Assembly (Includes Clips) (Bisque)
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23MAY 12957701SP
24Hinge, Center (LT) (White)
24Hinge, Center (LT) (Black)
25Screw (10)
26Roller Assembly
27MAY 67006426
28SCREW
29MAY 67006429
30BACK, MACH COMP
31MAY M0286708
32MAY M1205302
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY W10164422
36MAY 67001066
3767001067 Whirlpool Refrigerator Drain Tube Clip
39W11592374 Whirlpool Refrigerator Top Door Hinge
40WP67005956 Whirlpool Refrigerator Cover
4067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
40Cover, Right Hinge (Bisque)
