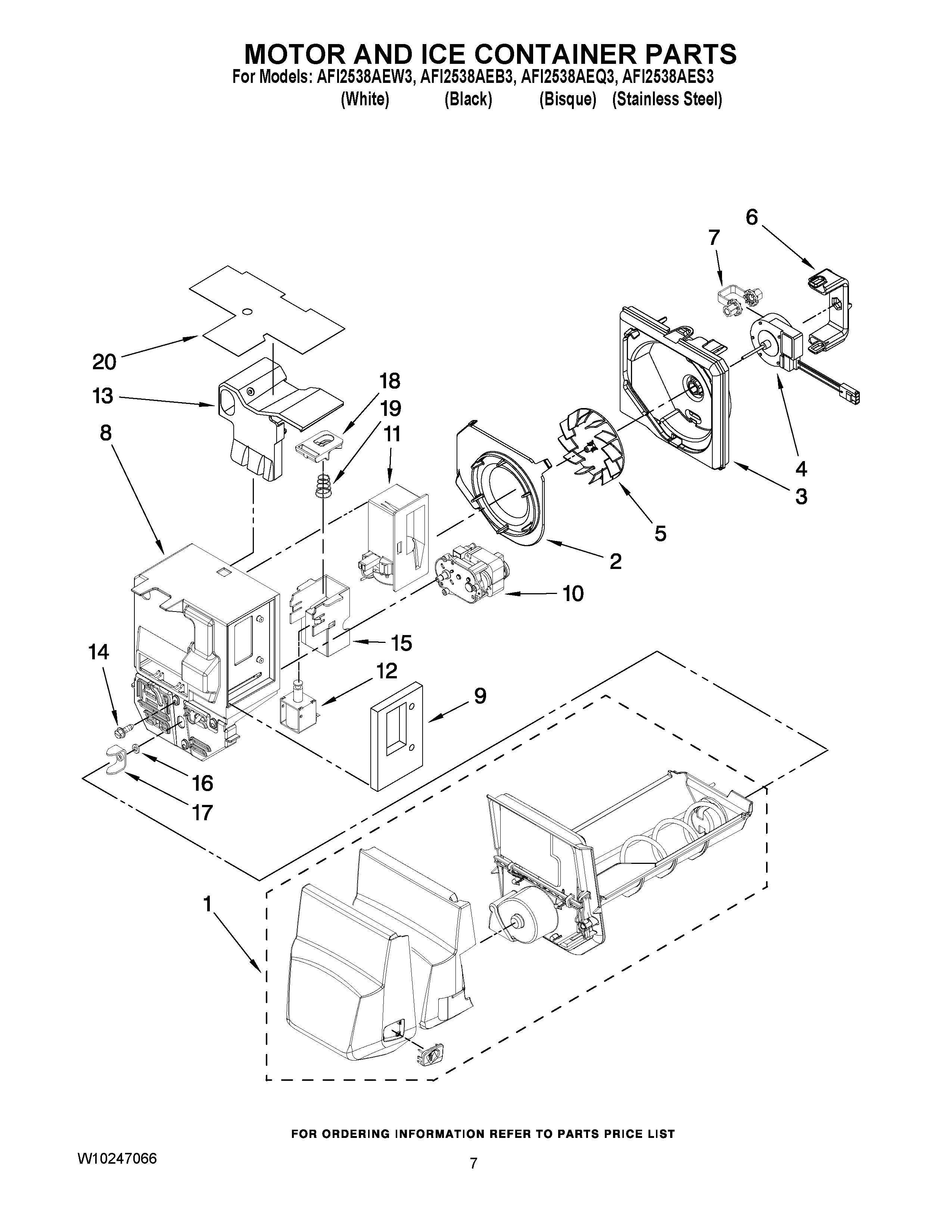

AFI2538AES3 04 – MOTOR AND ICE CONTAINER PARTS

AFI2538AES3 04 – MOTOR AND ICE CONTAINER PARTS

Written by

in

AFI2538AES3 04 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10324090 Whirlpool Refrigerator Ice Bin
2MAY W10121282
3MAY W10121281
4MAY W10162697
5MAY W10123444
6W11712696 Whirlpool Clip
7W11676465 Whirlpool Grommet
8MAY W10187860
9MAY 67006341
1067006342 Whirlpool Refrigerator Auger Motor
11MAY W10127427
1267006344 Whirlpool Refrigerator Solenoid
13MAY W10118612
14Screw (10)
15MAY 67007111
16MAY 67006346
17MAY 63052-1
18MAY 67006347
19MAY 67006348
20MAY W10142628
