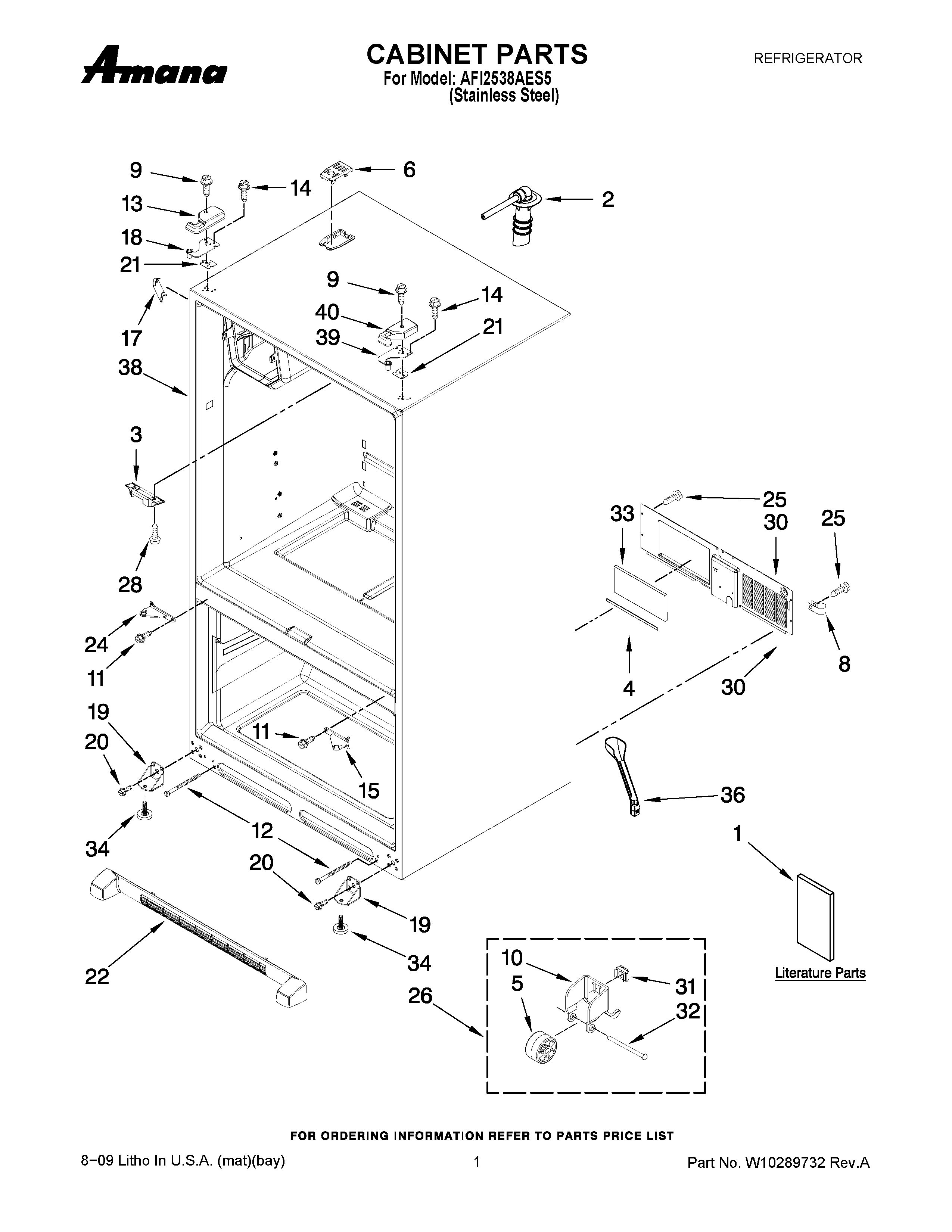

AFI2538AES5 01 – CABINET PARTS

Products

PositionProduct
1MAY W10215638
1MAY W10175442
1MAY W10141352
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5ROLLER (2)
6MAY 12981401B
8W10833902 Whirlpool Refrigerator Clamp
9MAY 12992602
10BRACKET, FOOT
11SCREW (6)
12Bolt, Adjusting (Rear)
13MAY 12962301B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
17COVER, CORNER (BLACK)
18MAY 12963204ED
19Bracket, Foot
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24HINGE, CENTER (BLACK, LEFT)
25SCREW (10)
26ROLLER ASSY.(REAR)
28Screw (4)
30MAY W10211858
31MAY M0286708
32MAY M1205302
33Insulation, Sound
34Foot Brake (2)
36MAY W10210988
38LINER (NOT A SERVICEABLE PART)
39MAY 12963205ED
40MAY 12962302B
