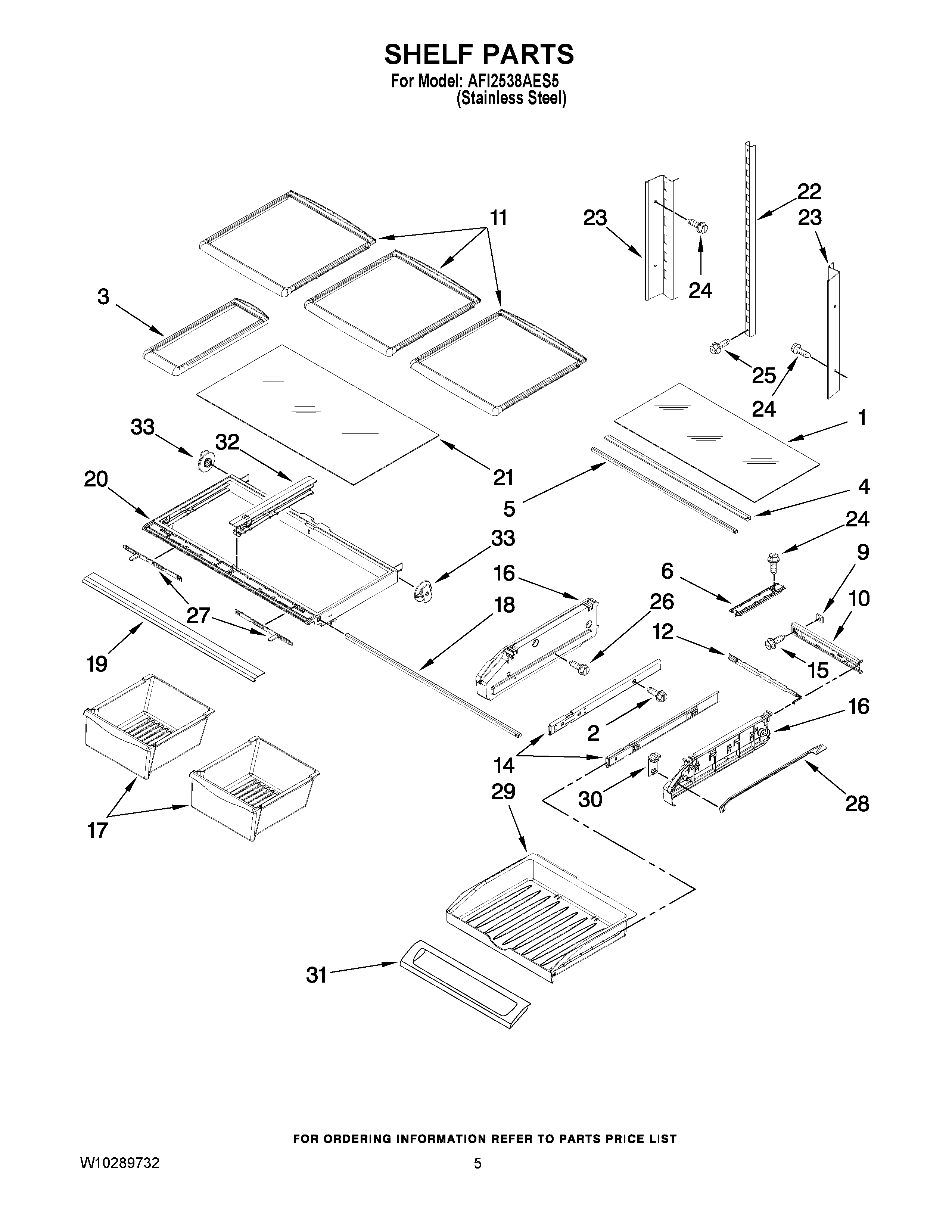

AFI2538AES5 03 – SHELF PARTS

Products

Position	Product
2	MAY 12990504
3	SHELF-MINI
4	MAY 12655902SP
5	MAY 12227305WD
6	TRACK, PANTRY
9	MAY 12656901
10	MAY 12656202
11	SHELF, GLIDE
12	SLIDE, TEMPERATURE
14	MAY 13058101V
16	ENDCAP, PANTRY (RIGHT)
16	ENDCAP, PANTRY (LEFT)
17	MAY 12724126
18	Brace, Crisper (2)
19	MAY W10231344
20	FRAME, CRISPER (2)
21	MAY 12204824
22	MAY 12435809
23	MAY 13039302
24	MAY 12990513
25	MAY 12990515
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12731302
30	MAY 12655204V
31	LID, PANTRY
32	RAIL, CENTER CRISPER
33	MOUNT, CRISPER
