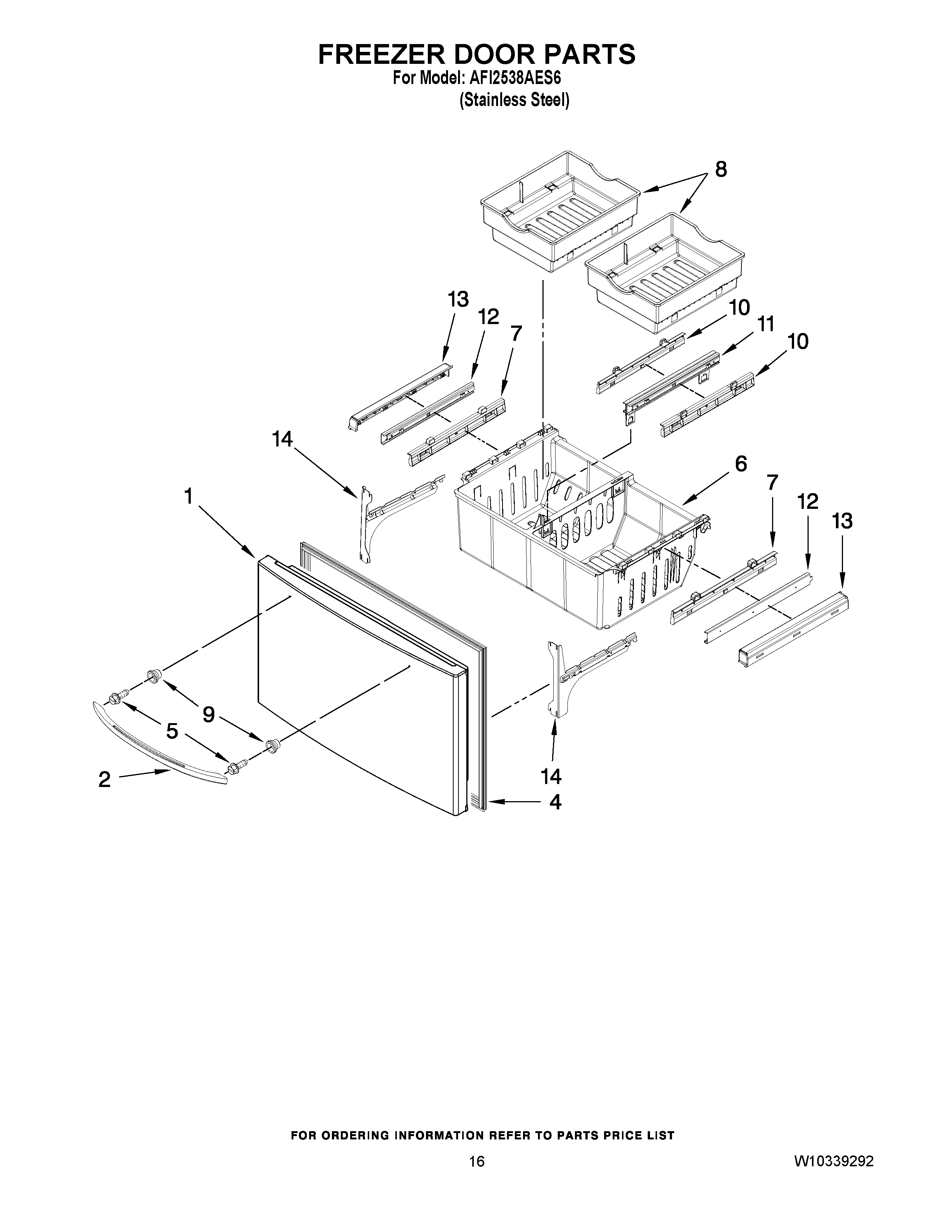

AFI2538AES6 09 – FREEZER DOOR PARTS

AFI2538AES6 09 – FREEZER DOOR PARTS

Written by

in

AFI2538AES6 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (STAINLESS)
2	MAY W10138765
4	MAY W10164044
5	SCREW
6	MAY 12924801SP
7	MAY 12925401SP
8	MAY 12924903
9	MAY 13001201
10	ADAPTER, BIN (CENTER)
11	BRACKET AND GLIDE ASSEMBLY
12	MAY W10235367
13	MAY 12925502SP
13	MAY 12925501SP
14	BRACKET, DOOR (RIGHT)
14	BRACKET, DOOR (LEFT)
