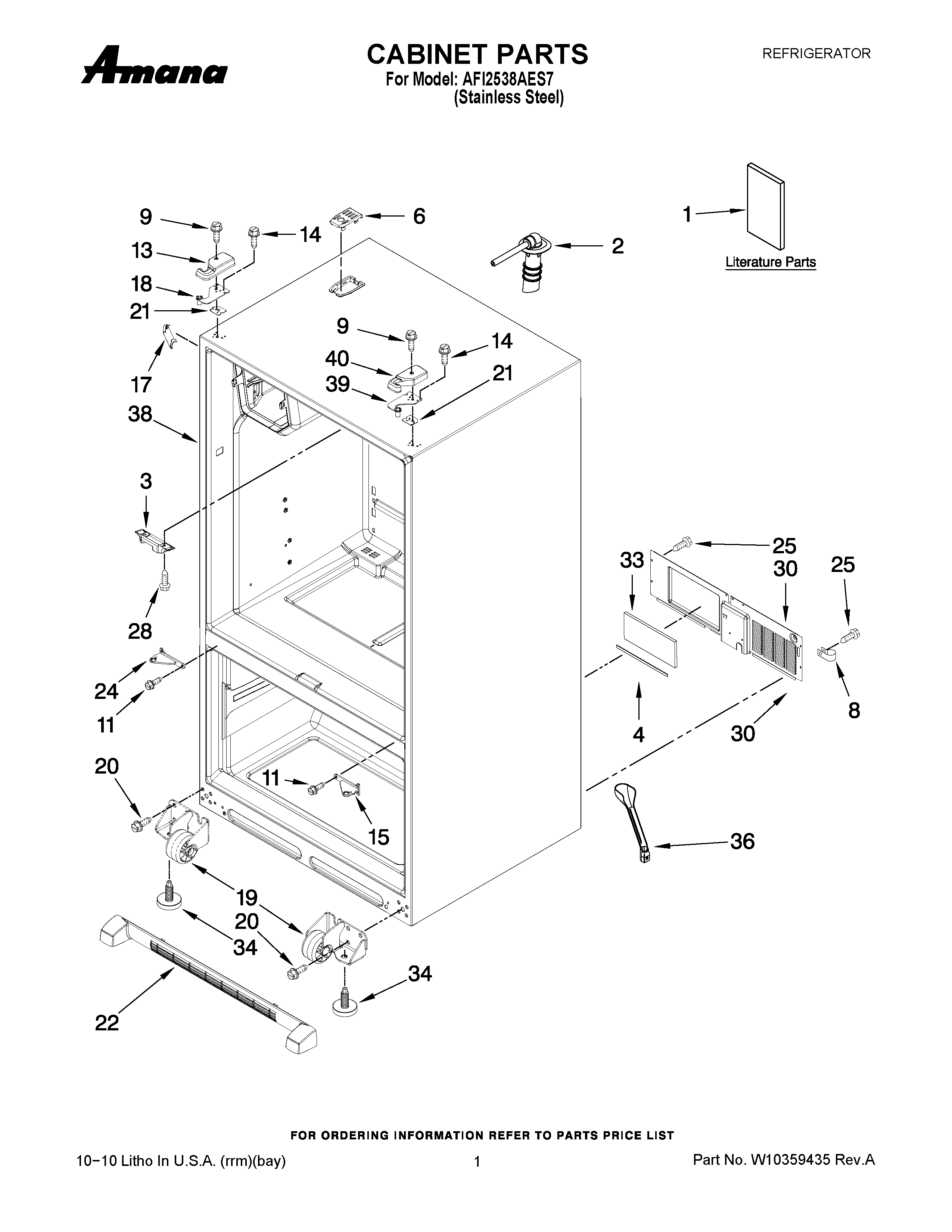

AFI2538AES7 01 – CABINET PARTS

Products

Position	Product
1	MAY W10215638
1	MAY W10175442
1	MAY W10325346
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
6	MAY 12981401B
8	CLAMP, TUBE
9	MAY 12992602
11	SCREW (6)
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW (10)
28	Screw (4)
30	MAY W10270394
33	Insulation, Sound
34	Brake, Foot
36	MAY W10210988
38	LINER (NOT A SERVICEABLE PART)
39	MAY 12963205ED
40	MAY 12962302B
