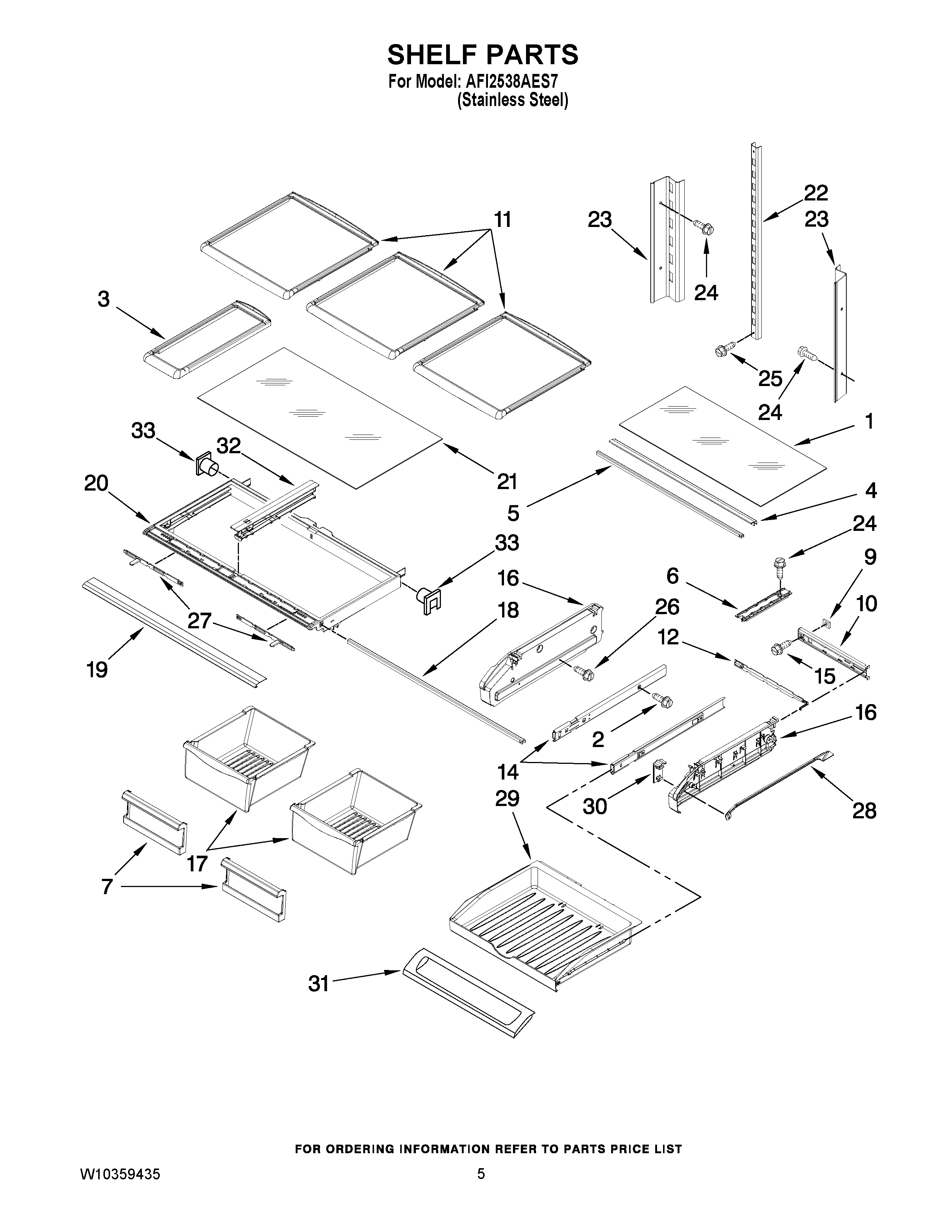

AFI2538AES7 03 – SHELF PARTS

AFI2538AES7 03 – SHELF PARTS

Written by

in

AFI2538AES7 03 – SHELF PARTS

Products

Position	Product
1	GLASS, PANTRY
2	MAY 12990504
3	SHELF-MINI
4	MAY 12655902SP
5	MAY 12227305
6	TRACK, PANTRY
7	FRONT-CRISPER PAN
9	MAY 12656901
10	MAY 12656202
11	SHELF, GLIDE
12	SLIDE, TEMPERATURE
14	MAY W10235370
16	ENDCAP, PANTRY (LEFT)
16	ENDCAP, PANTRY (RIGHT)
17	MAY 12804601SP
18	Brace, Crisper (2)
19	MAY W10231344
20	MAY W10329866
21	MAY 12204824
22	MAY W10273464
23	LADDER, SIDE RH
23	LADDER, SIDE LH
24	MAY 12990513
25	MAY 12990515
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12731302
30	MAY 12655204V
31	LID, PANTRY
32	RAIL, CENTER
33	MAY 13062602
