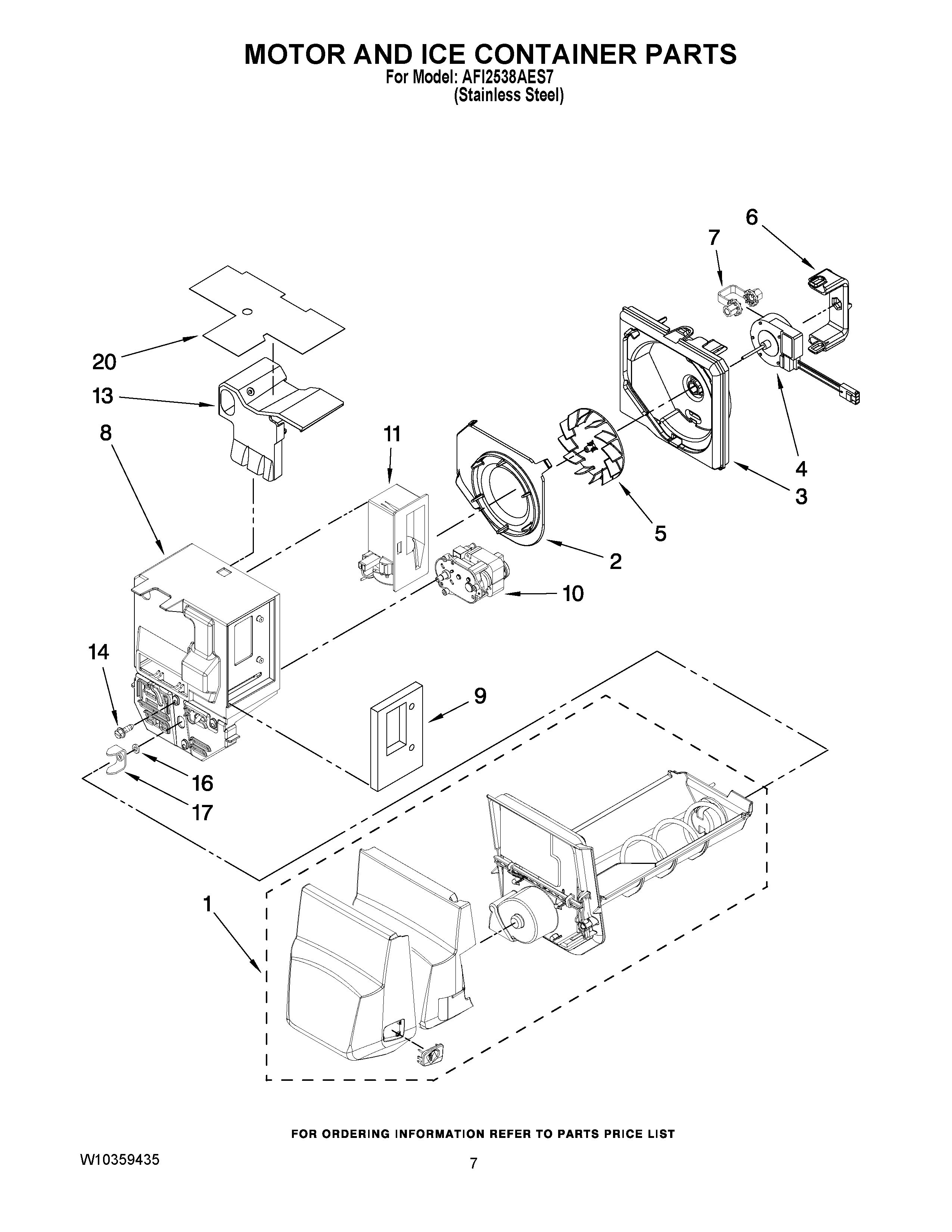

AFI2538AES7 04 – MOTOR AND ICE CONTAINER PARTS
Written by
in
AFI2538AES7 04 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10324090
2
MAY W10121282
3
MAY W10121281
4
MAY W10162697
5
MAY W10123444
6
MAY 12956603SP
7
MAY W10151687
8
MAY W10331712
9
MAY 12920001SP
10
MAY 12955405
11
MAY W10127427
13
MAY W10118612
14
SCREW (10)
16
MAY 420107A700
17
YOKE, ICE (DISPENSER)
20
MAY W10142628
←
